Component Connector End Views

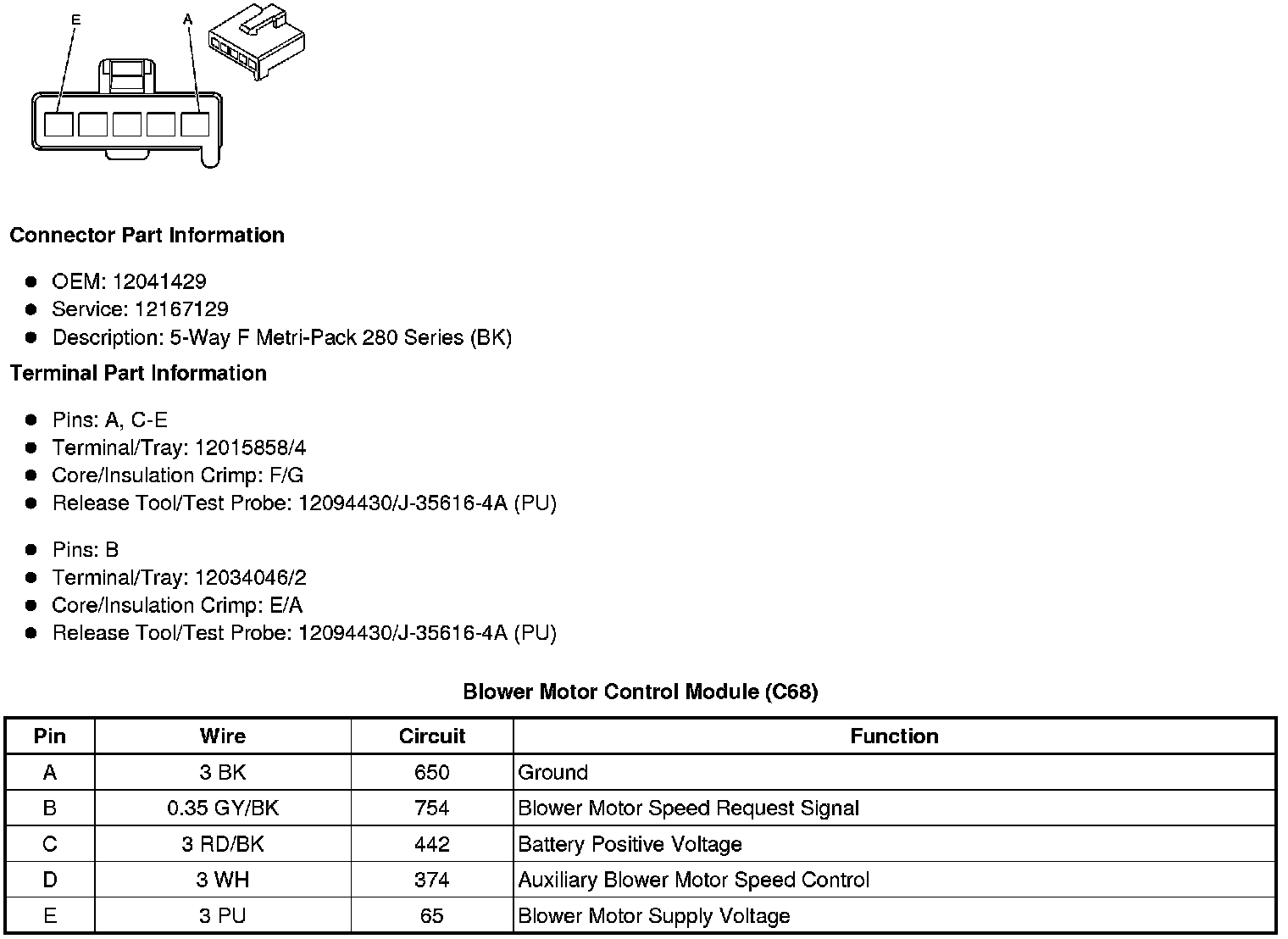

Blower Motor Control Module (C68)

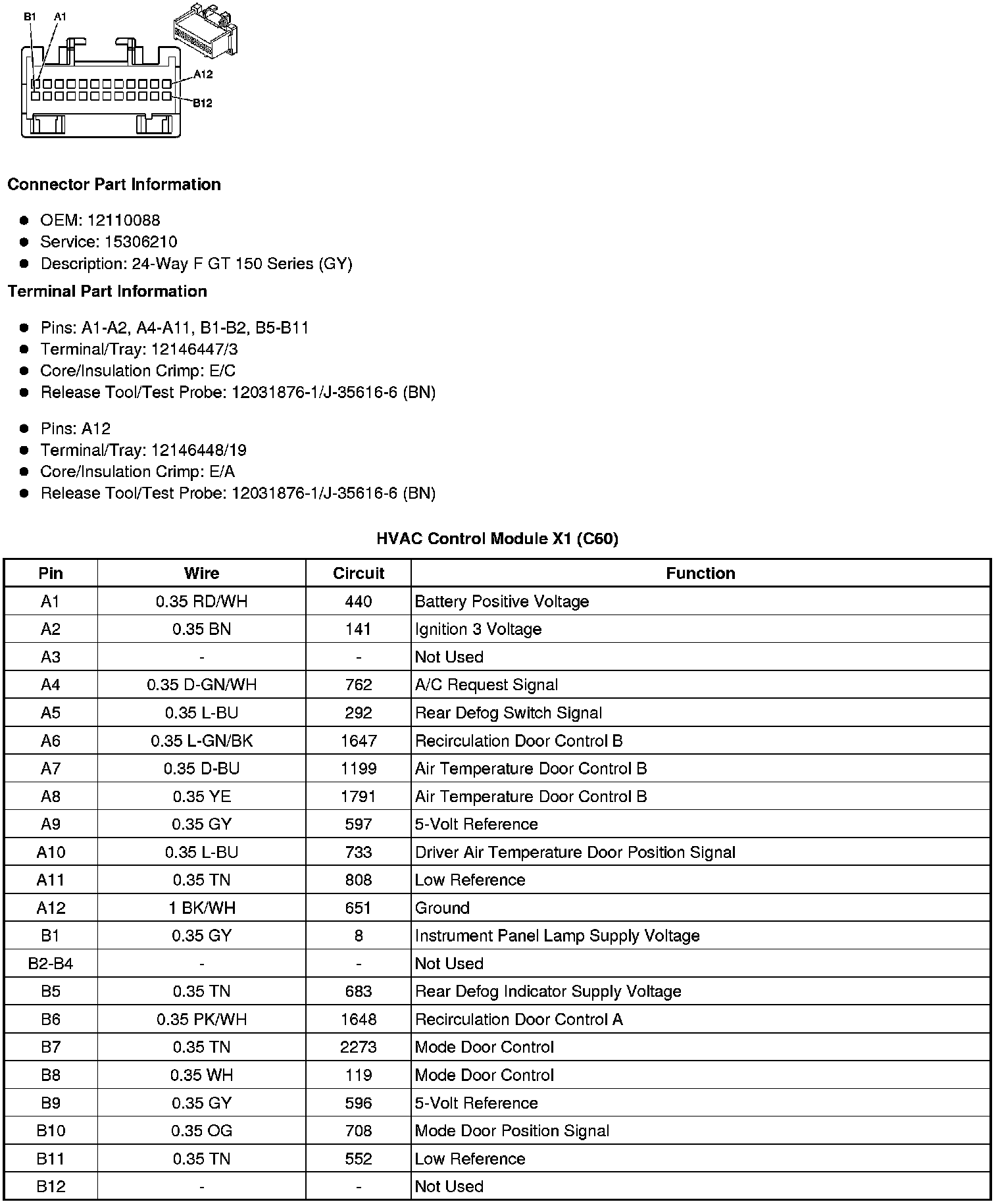

HVAC Control Module X1 (C60)

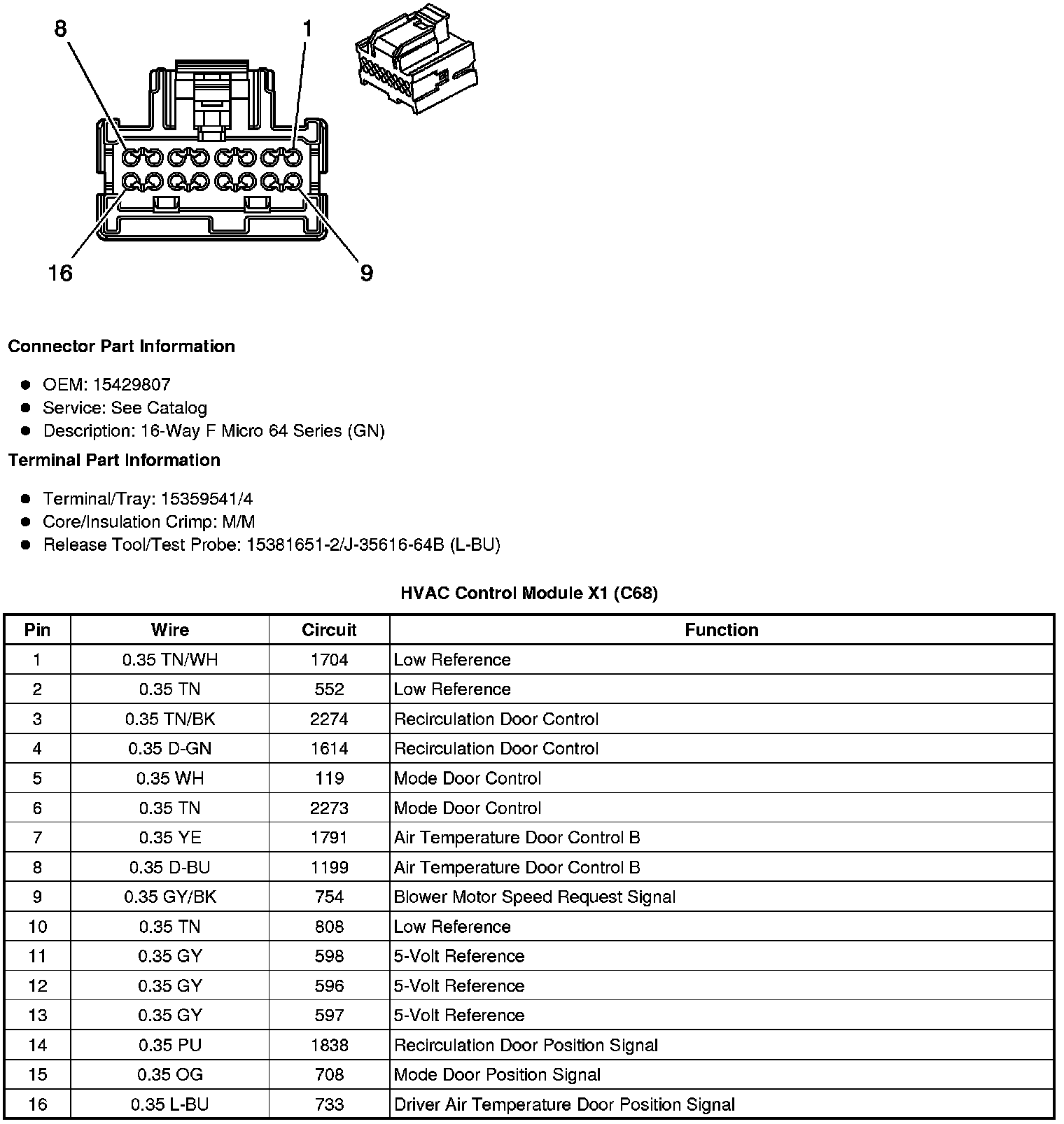

HVAC Control Module X1 (C68)

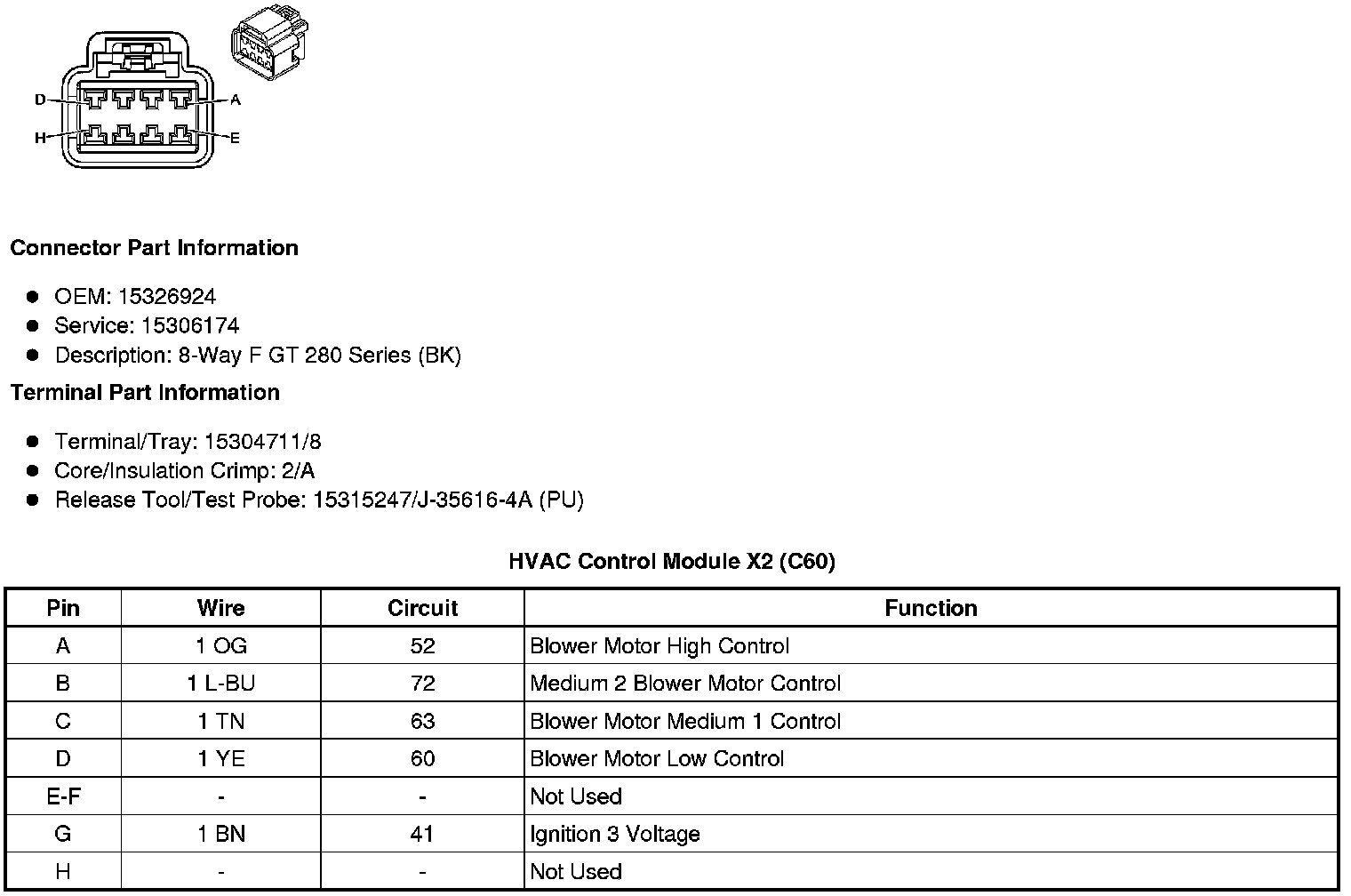

HVAC Control Module X2 (C60)
HVAC Control Module X2 (C68)
Control Module HVAC
