Component Connector End Views

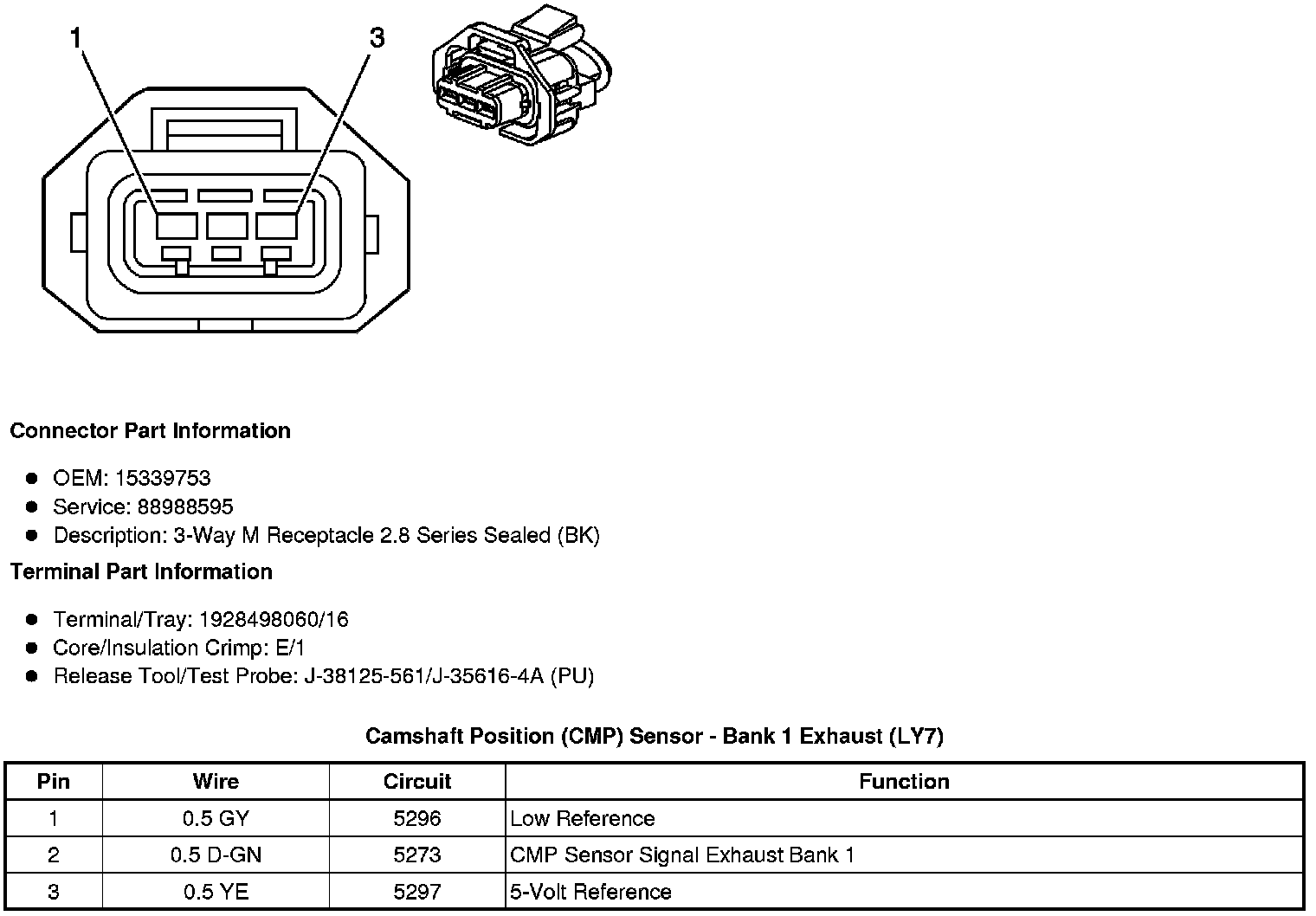

Camshaft Position (CMP) Sensor - Bank 1 Exhaust (LY7)

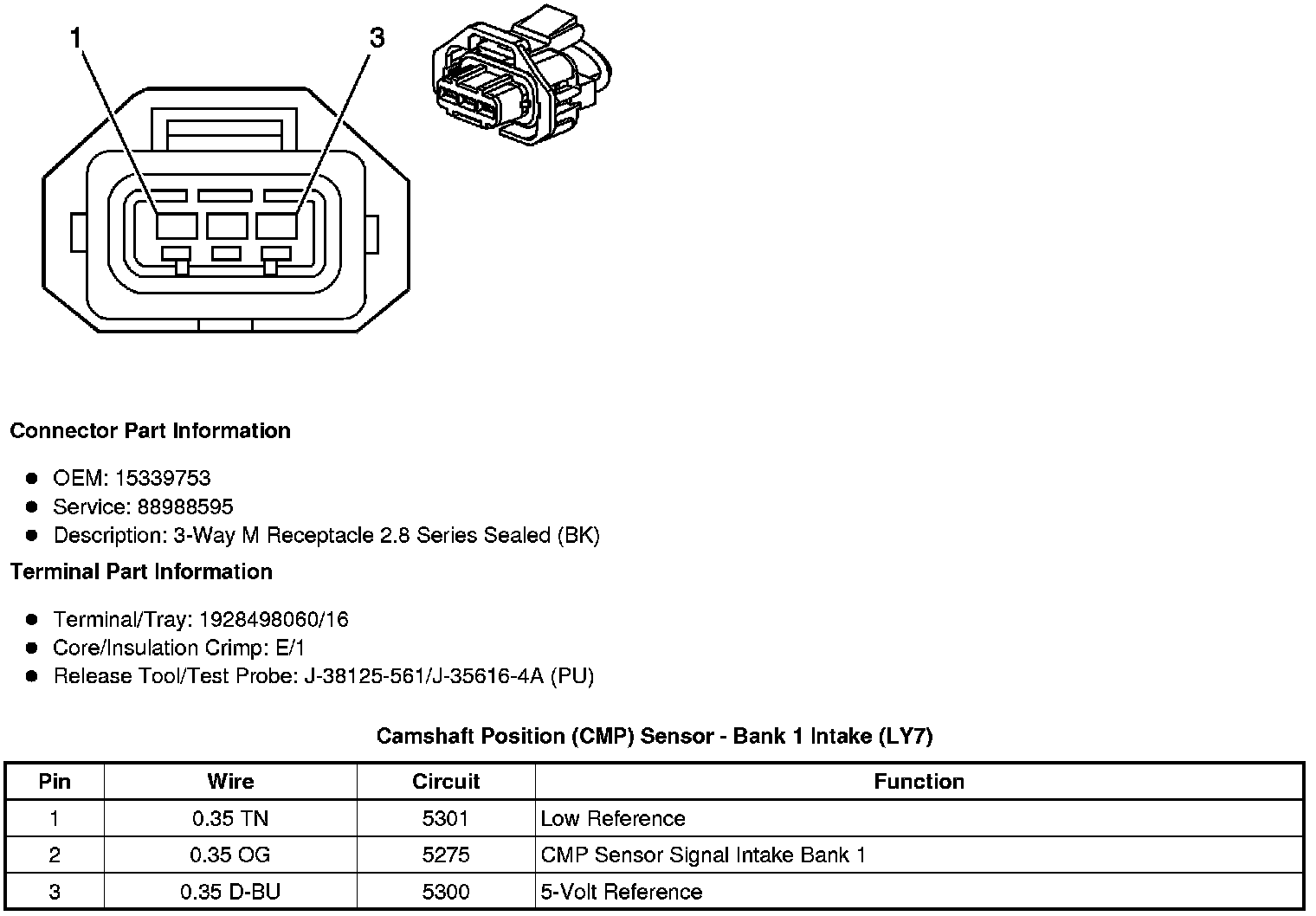

Camshaft Position (CMP) Sensor - Bank 1 Intake (LY7)
Camshaft Position (CMP) Sensor - Bank 2 Exhaust (LY7)
Camshaft Position (CMP) Sensor - Bank 2 Intake (LY7)
Camshaft Position Sensor
Need a step-by-step guide?
Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 2009 Chevrolet.
Component Connector End Views
Camshaft Position (CMP) Sensor - Bank 1 Exhaust (LY7)
Camshaft Position (CMP) Sensor - Bank 1 Intake (LY7)
Camshaft Position (CMP) Sensor - Bank 2 Exhaust (LY7)
Camshaft Position (CMP) Sensor - Bank 2 Intake (LY7)
