Component Connector End Views
Tail/Stop and Turn Signal Lamp - Left (without 1LZ)
Tail/Stop and Turn Signal Lamp - Left (1LZ)
Tail/Stop and Turn Signal Lamp - Right (without 1LZ)
Tail/Stop and Turn Signal Lamp - Right (1LZ)
Brake Lamp
Need a step-by-step guide?
Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 2009 Chevrolet.
Component Connector End Views

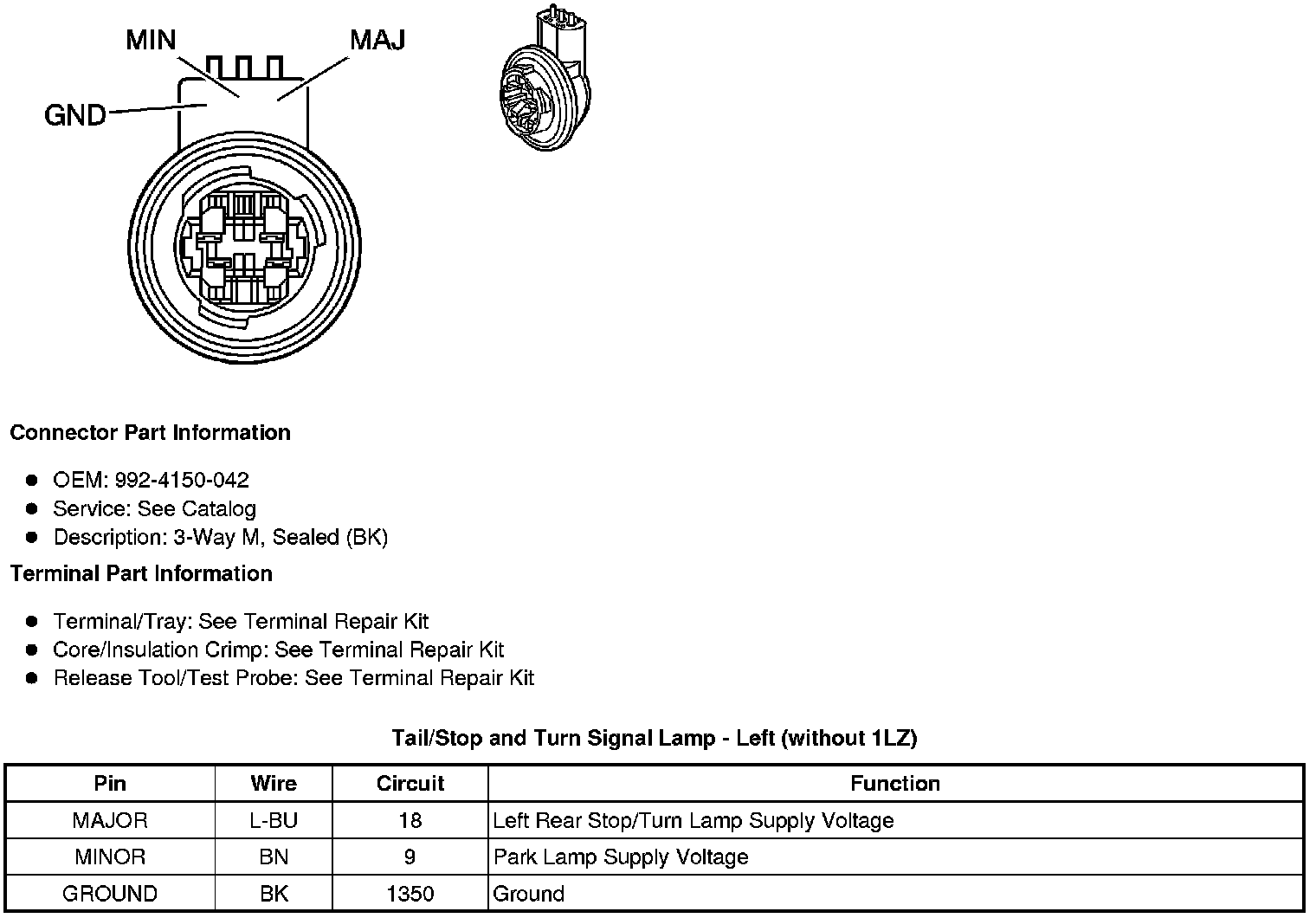

Tail/Stop and Turn Signal Lamp - Left (without 1LZ)

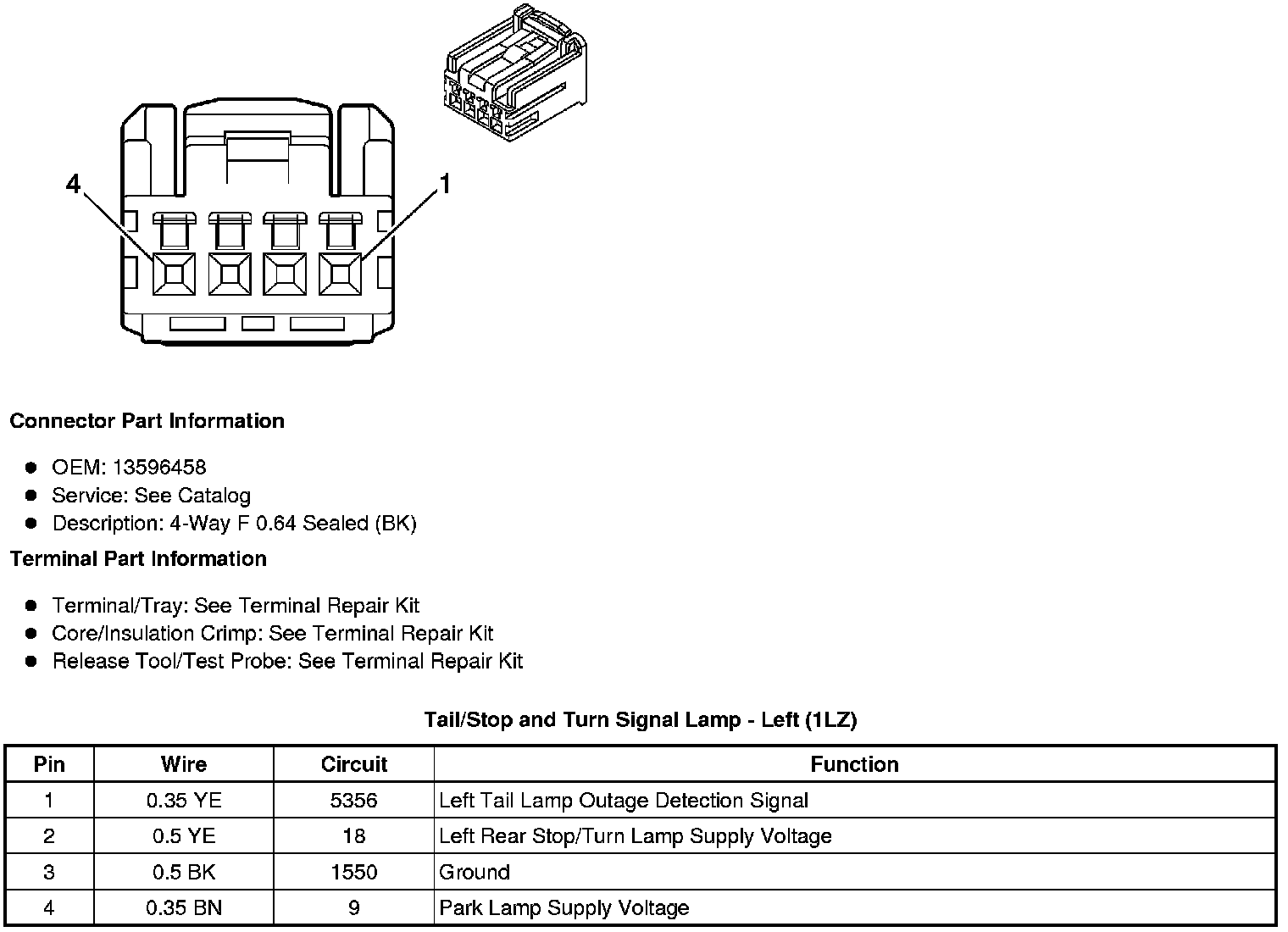

Tail/Stop and Turn Signal Lamp - Left (1LZ)
Tail/Stop and Turn Signal Lamp - Right (without 1LZ)

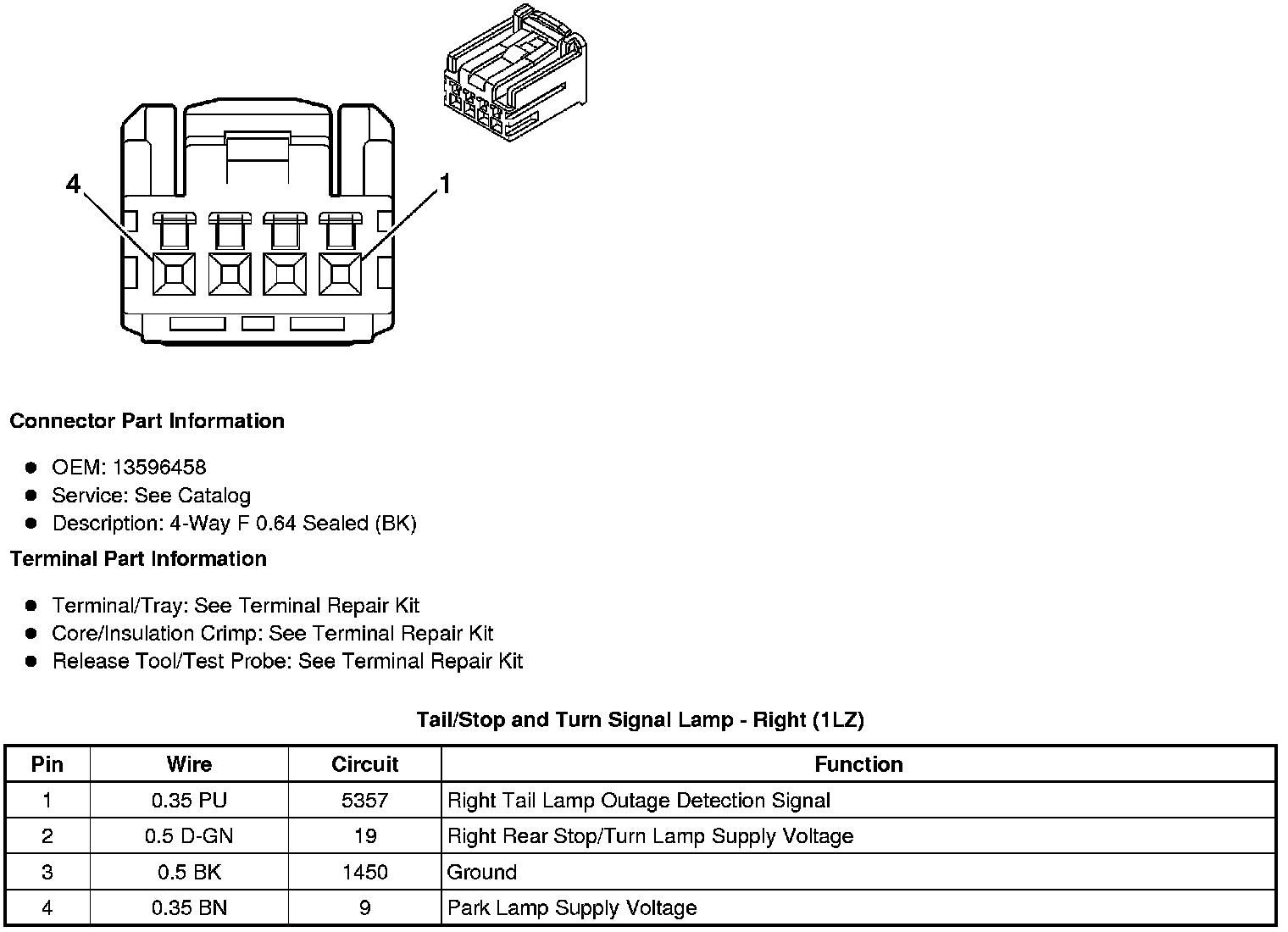

Tail/Stop and Turn Signal Lamp - Right (1LZ)
