Component Connector End Views

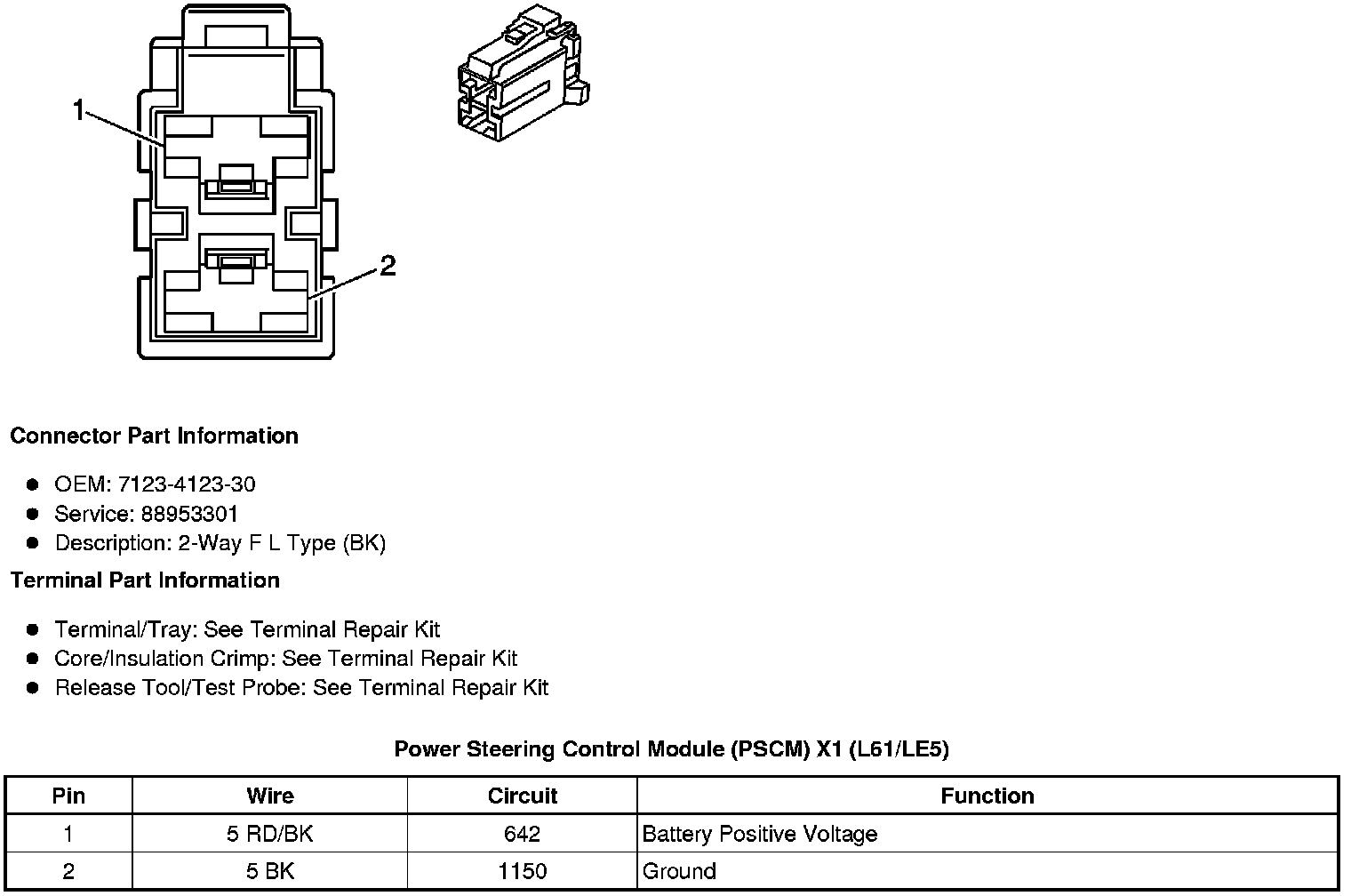

Power Steering Control Module (PSCM) X1 (L61/LE5)

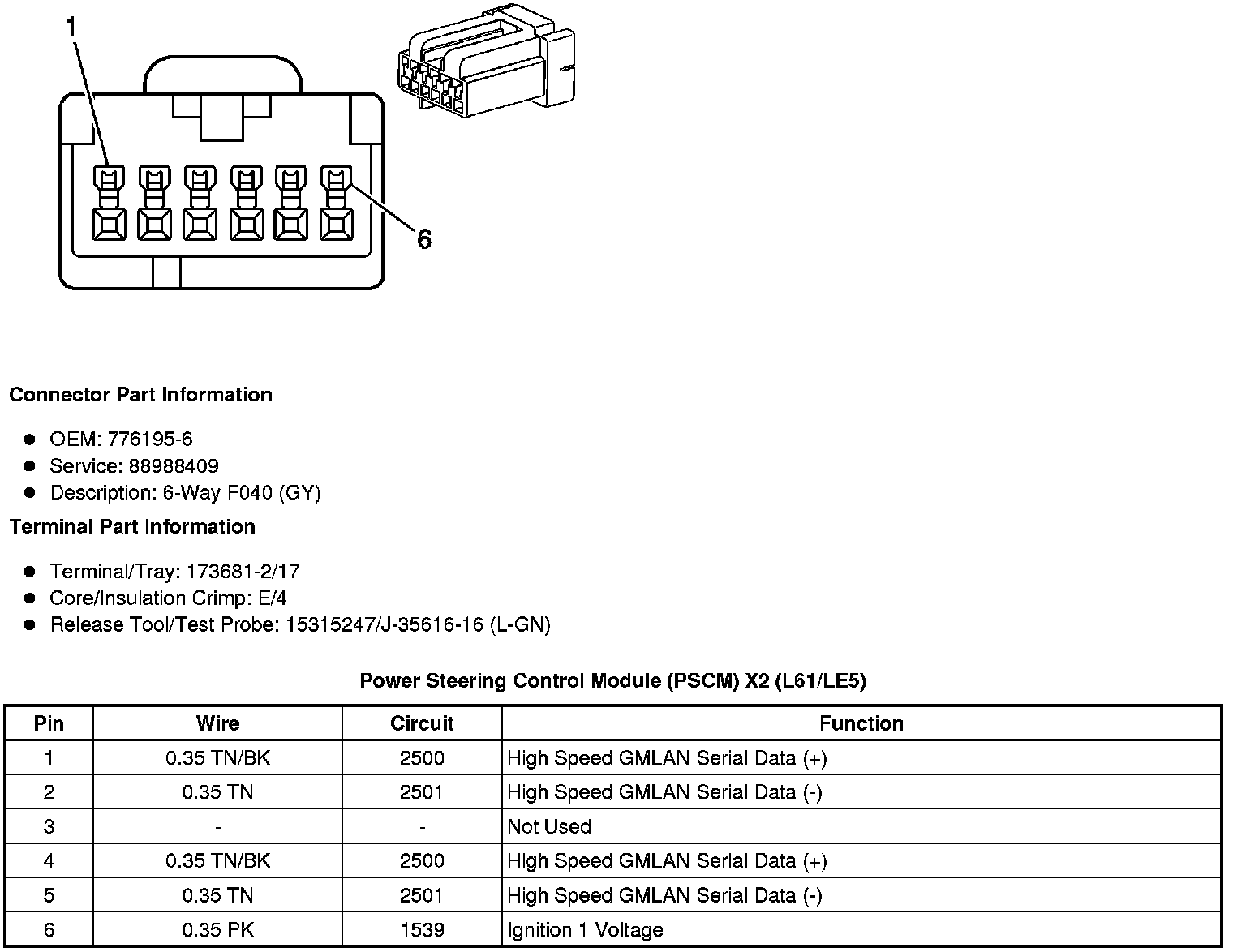

Power Steering Control Module (PSCM) X2 (L61/LE5)

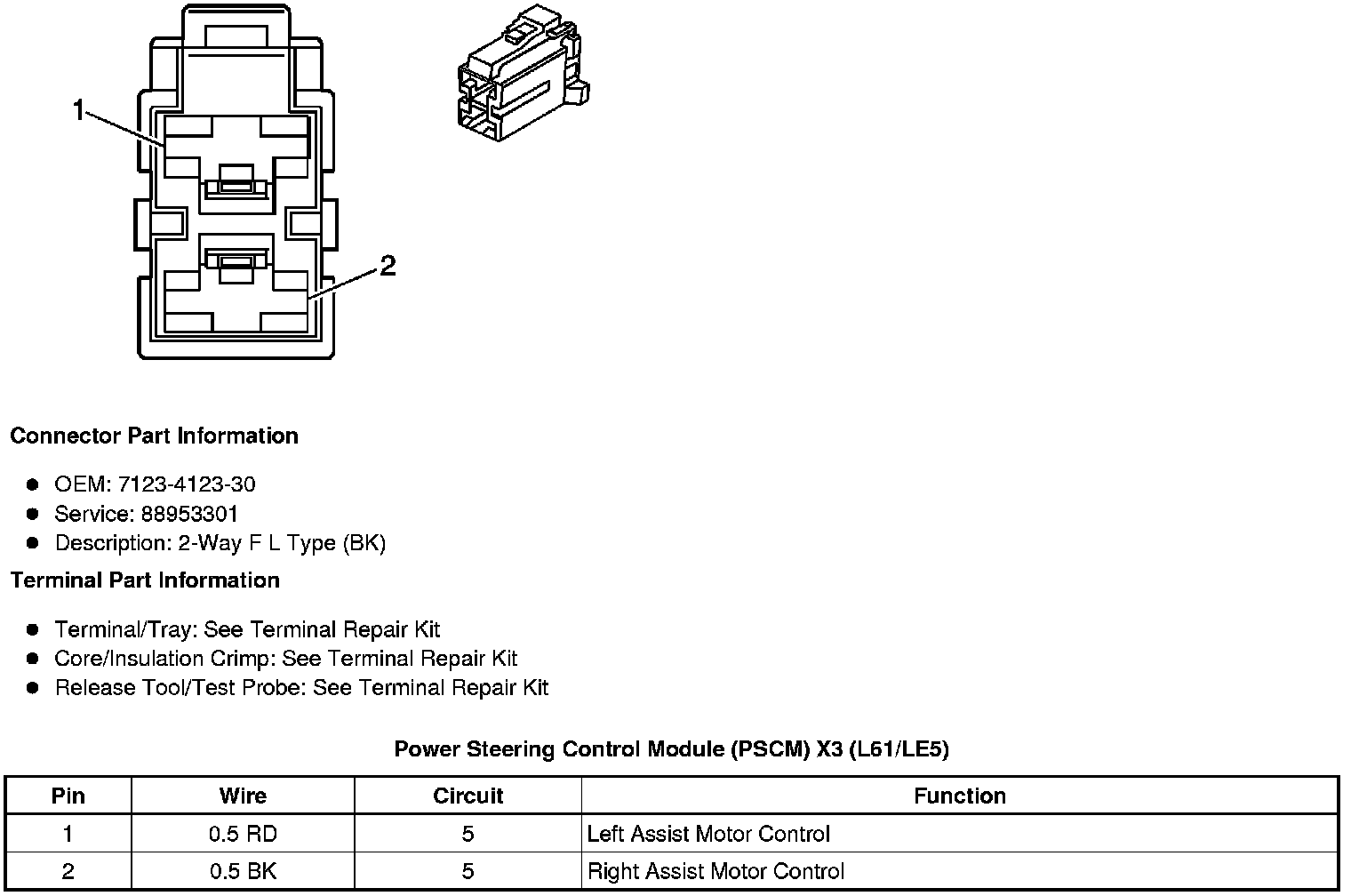

Power Steering Control Module (PSCM) X3 (L61/LE5)
Steering Control Module
