Component Connector End Views

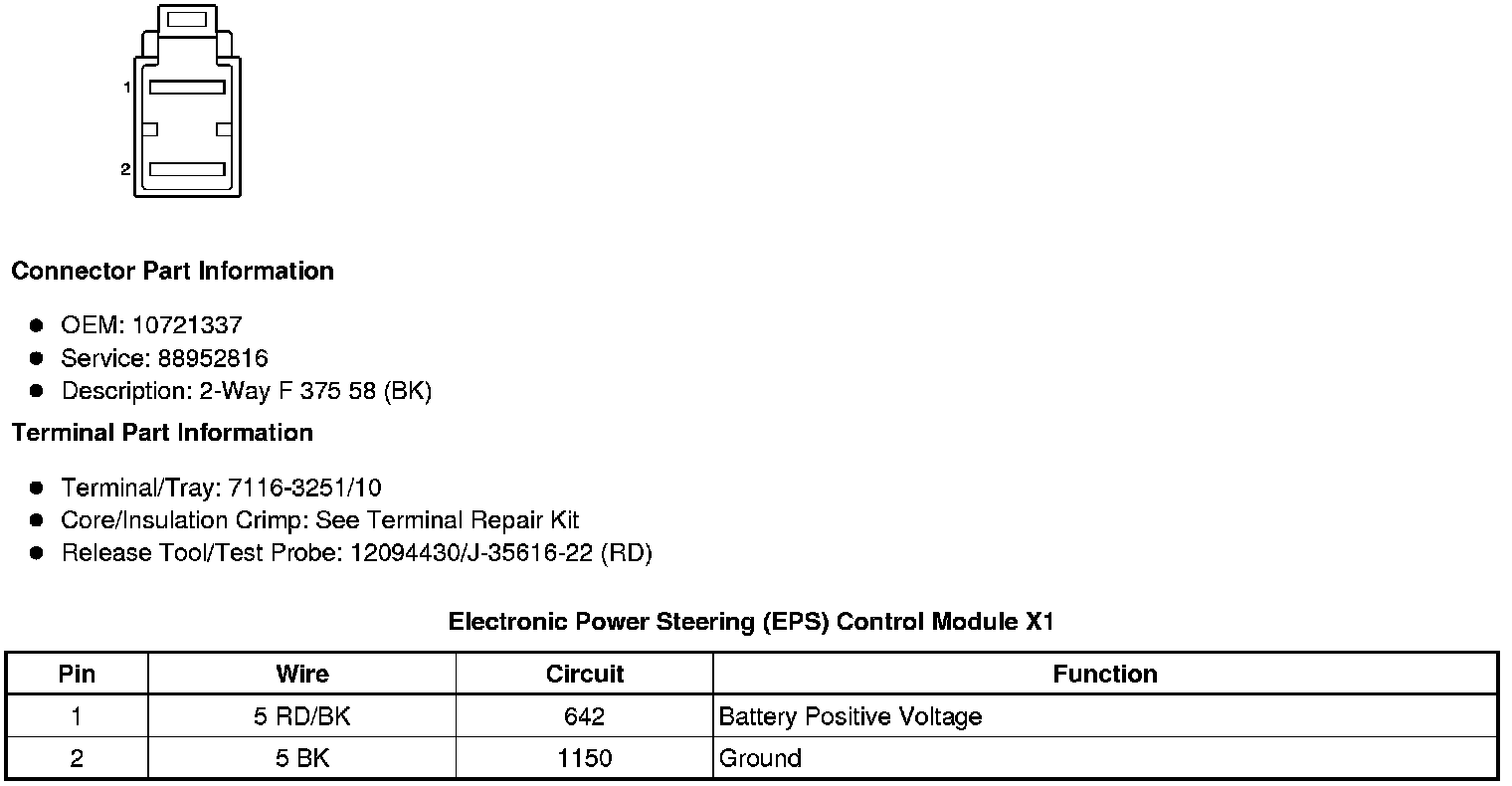

Electronic Power Steering (EPS) Control Module X1

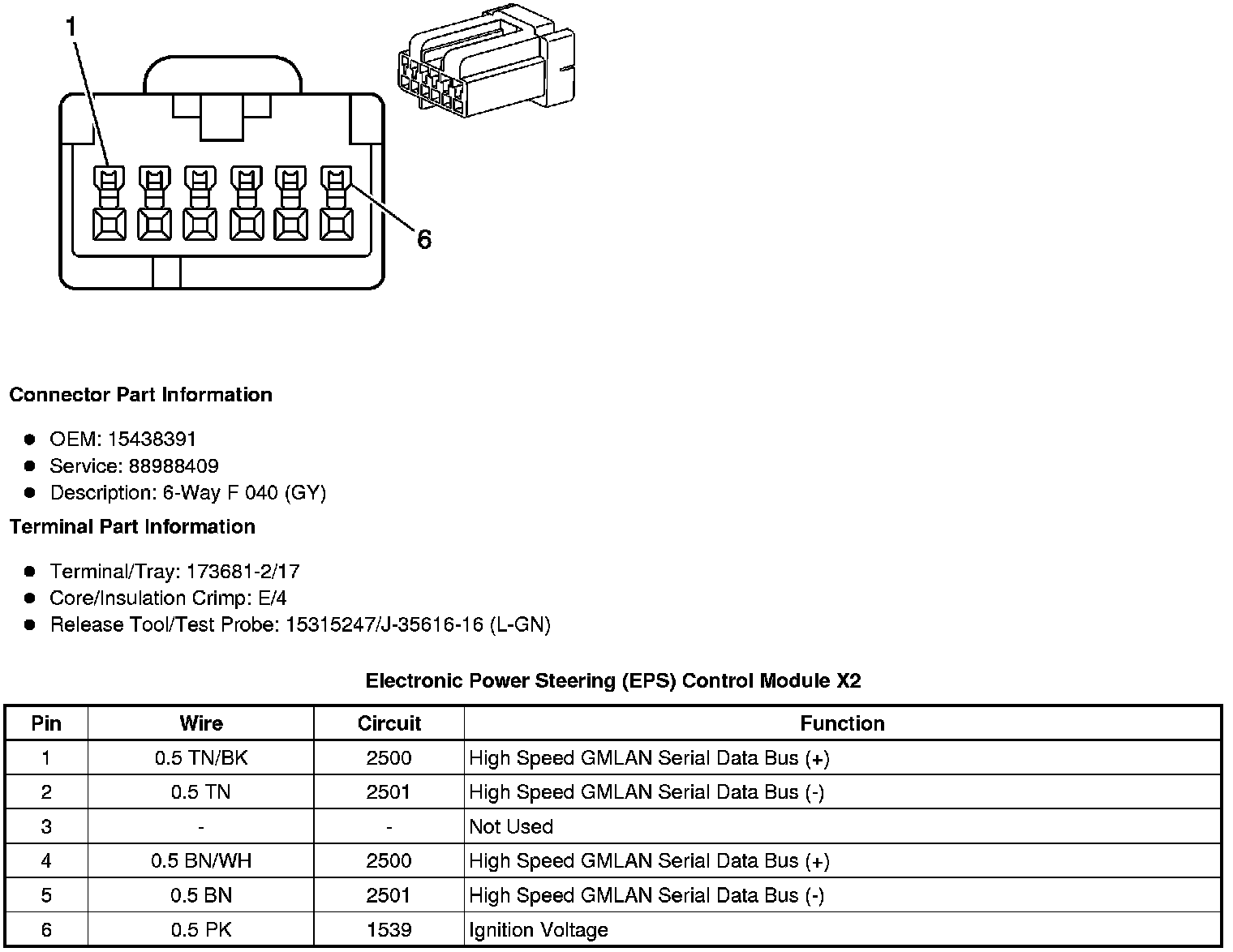

Electronic Power Steering (EPS) Control Module X2

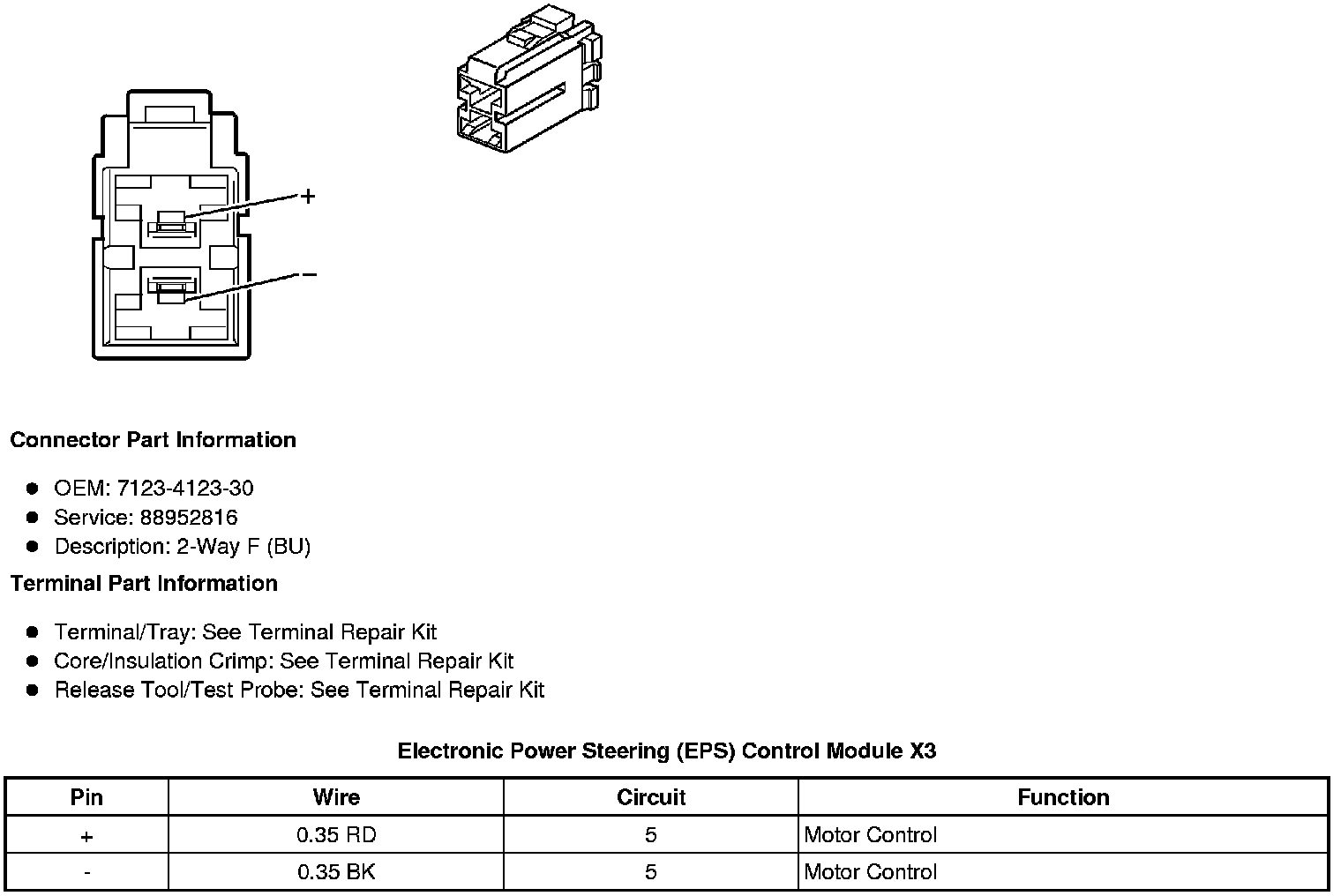

Electronic Power Steering (EPS) Control Module X3
Steering Control Module
Need a step-by-step guide?
Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 2009 Chevrolet.
Component Connector End Views
Electronic Power Steering (EPS) Control Module X1
Electronic Power Steering (EPS) Control Module X2
Electronic Power Steering (EPS) Control Module X3
