Thread Repair Specifications

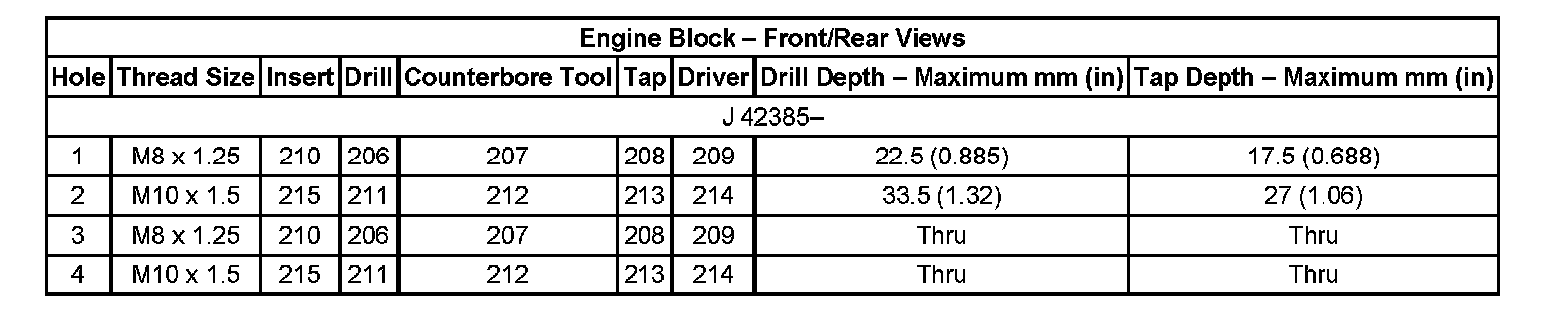

Engine Block:

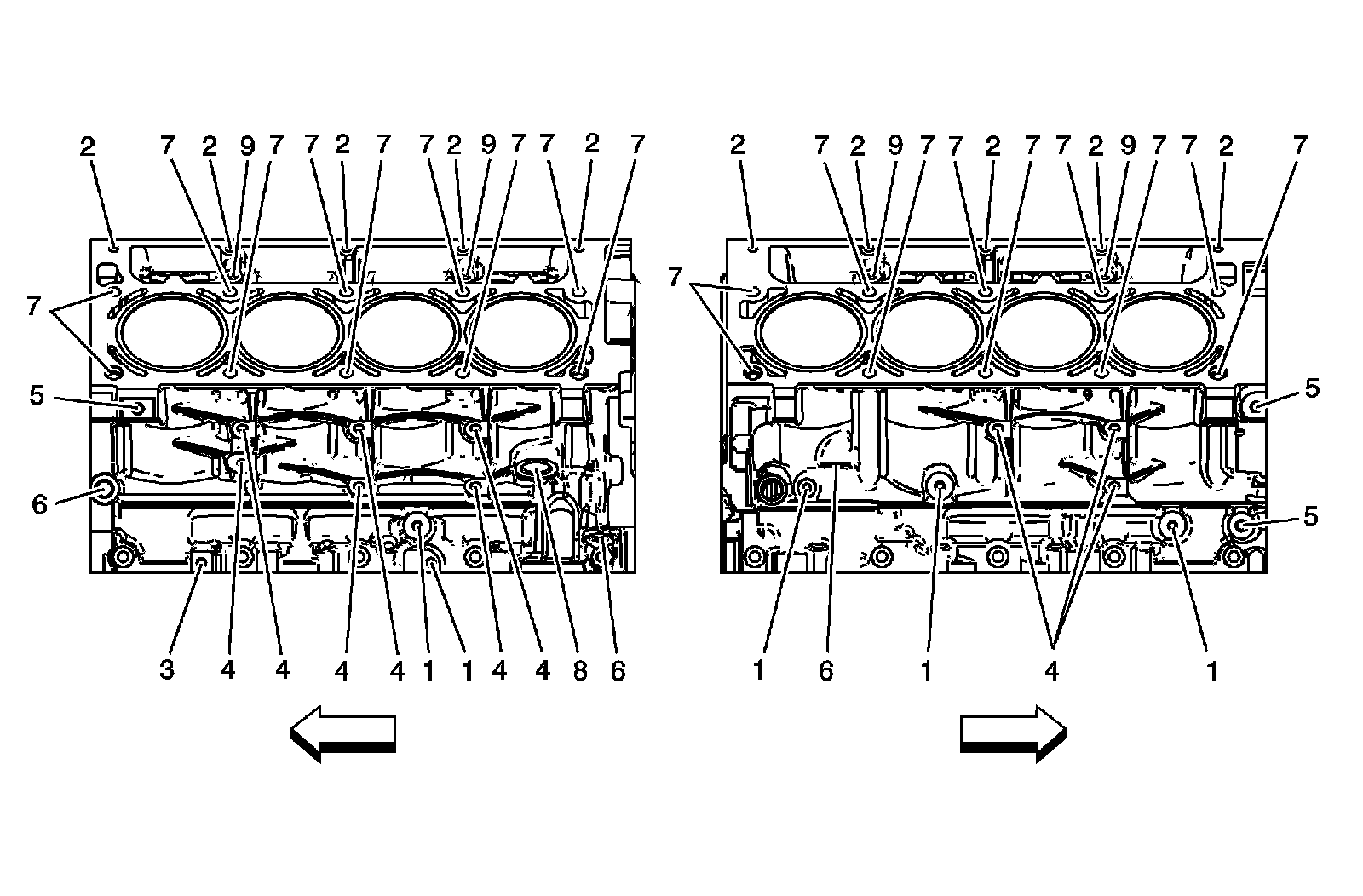

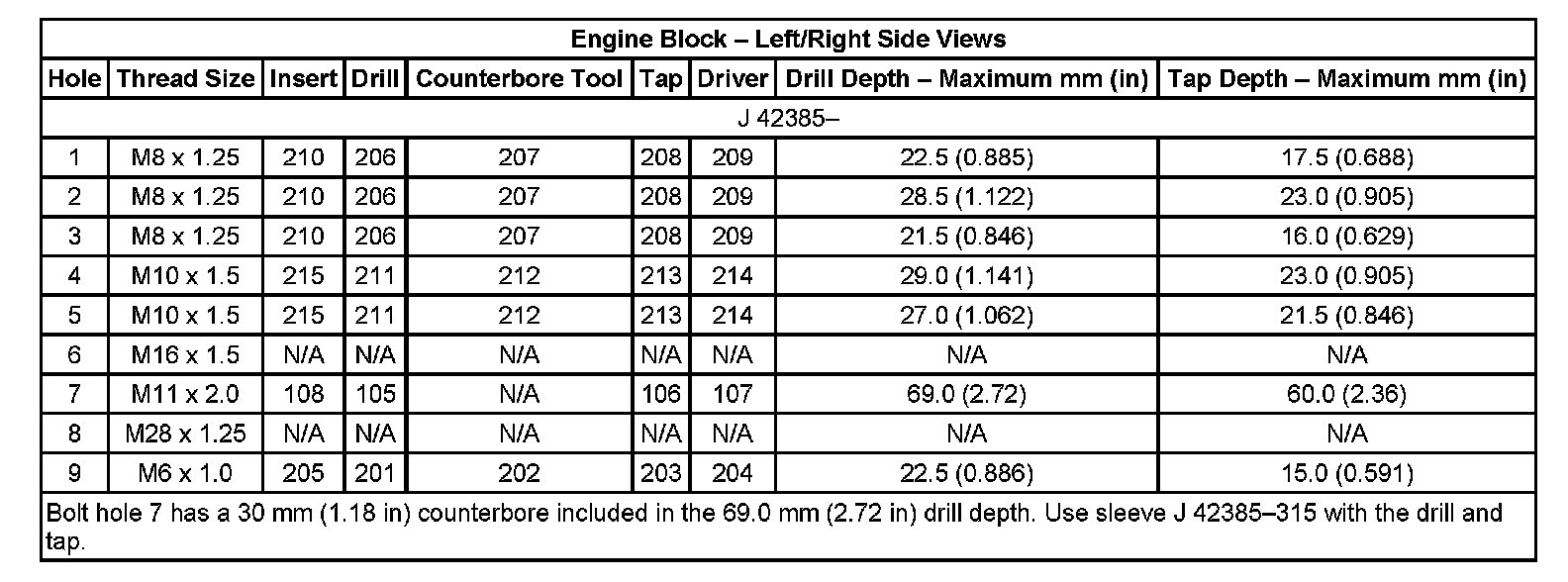

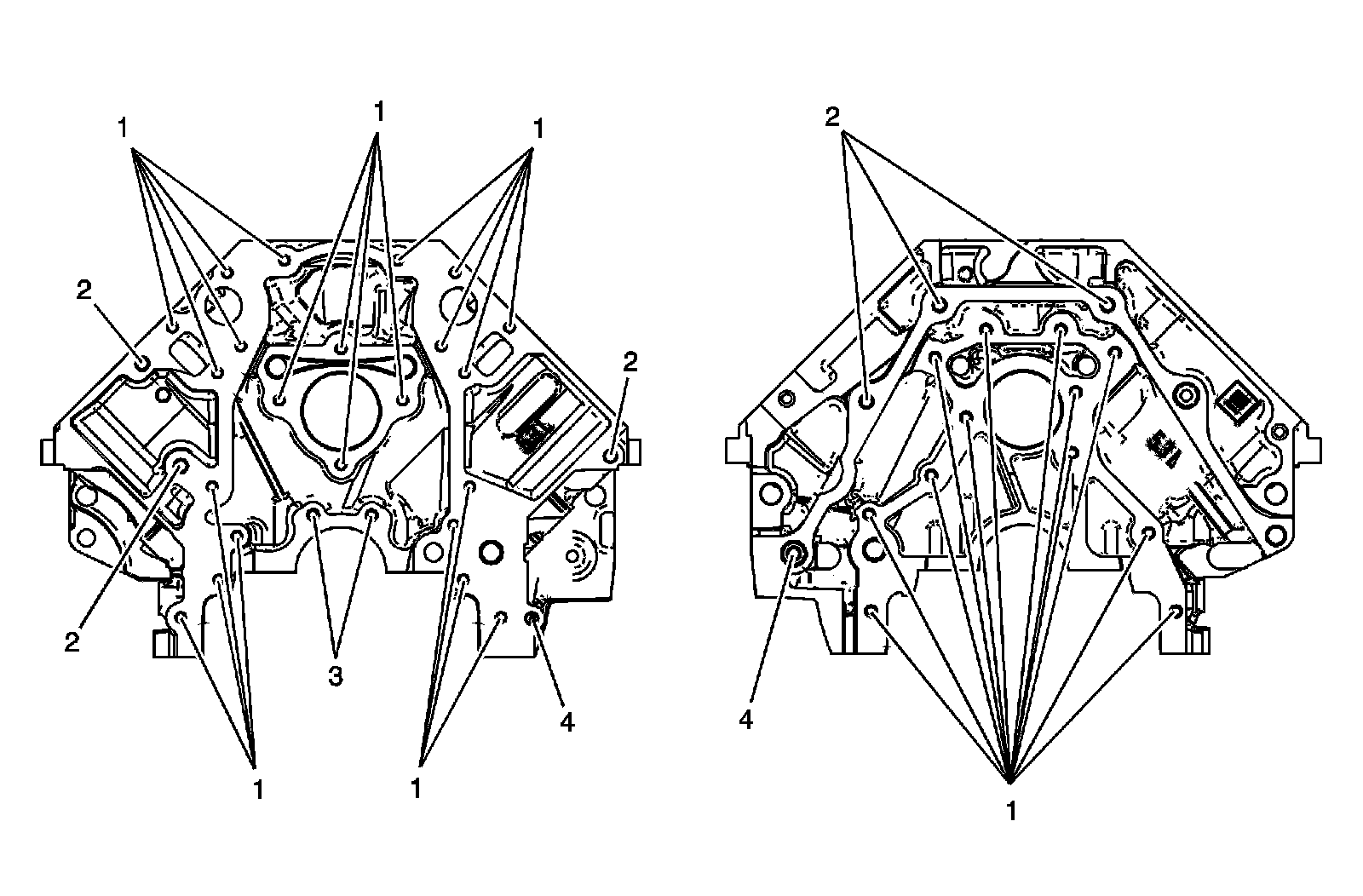

Engine Block - Left/Right Side Views:




Engine Block:




Engine Block - Left/Right Side Views:




Engine Block:

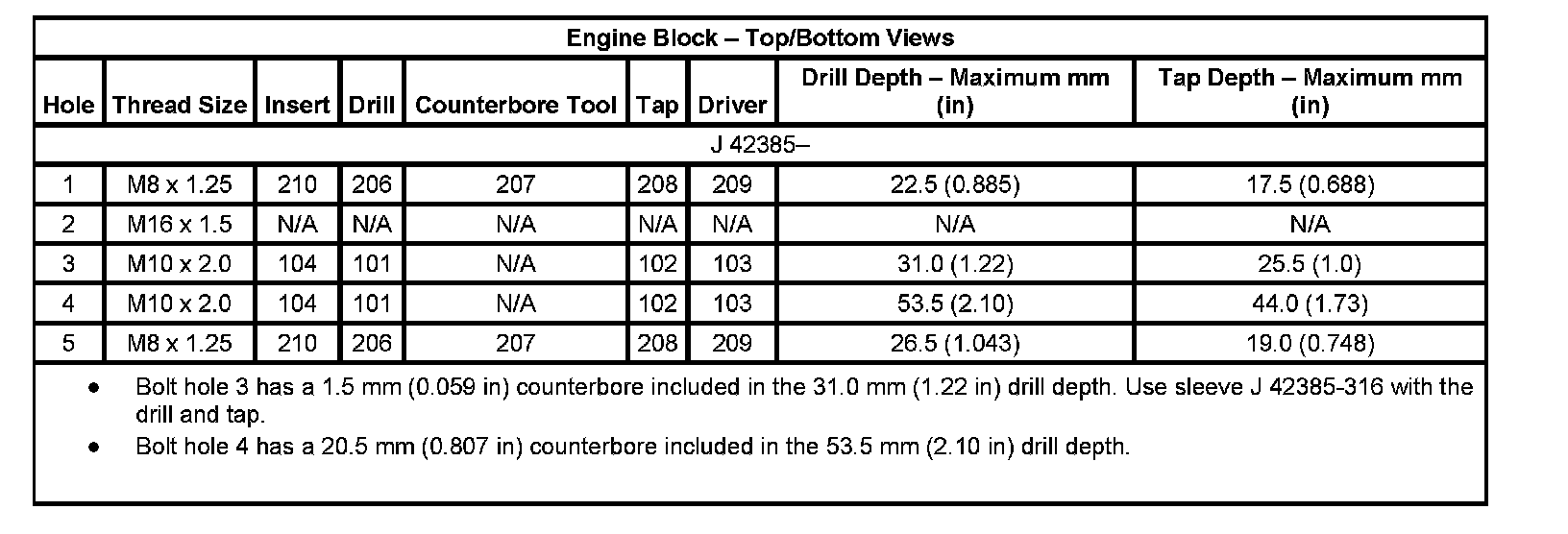

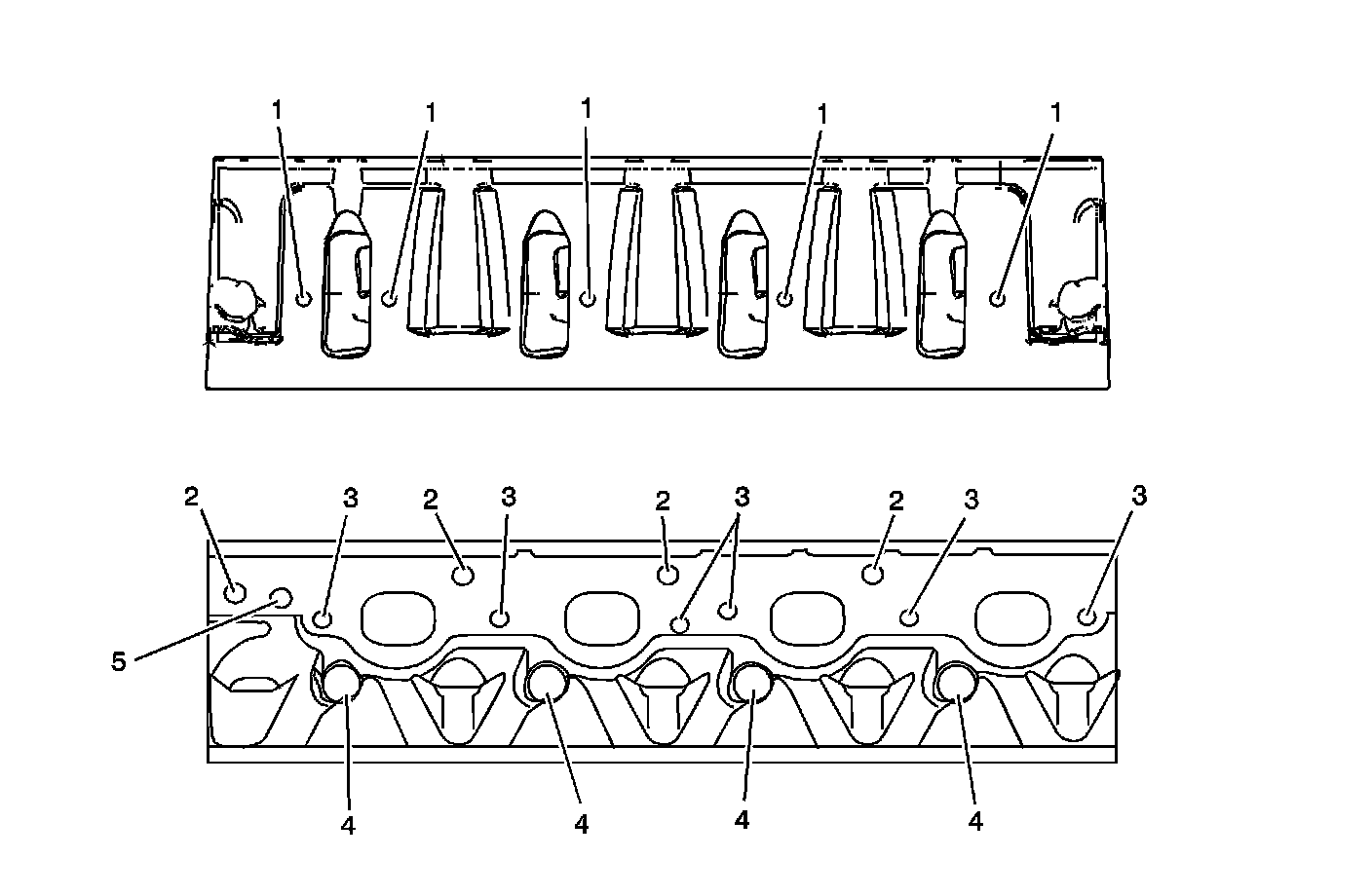

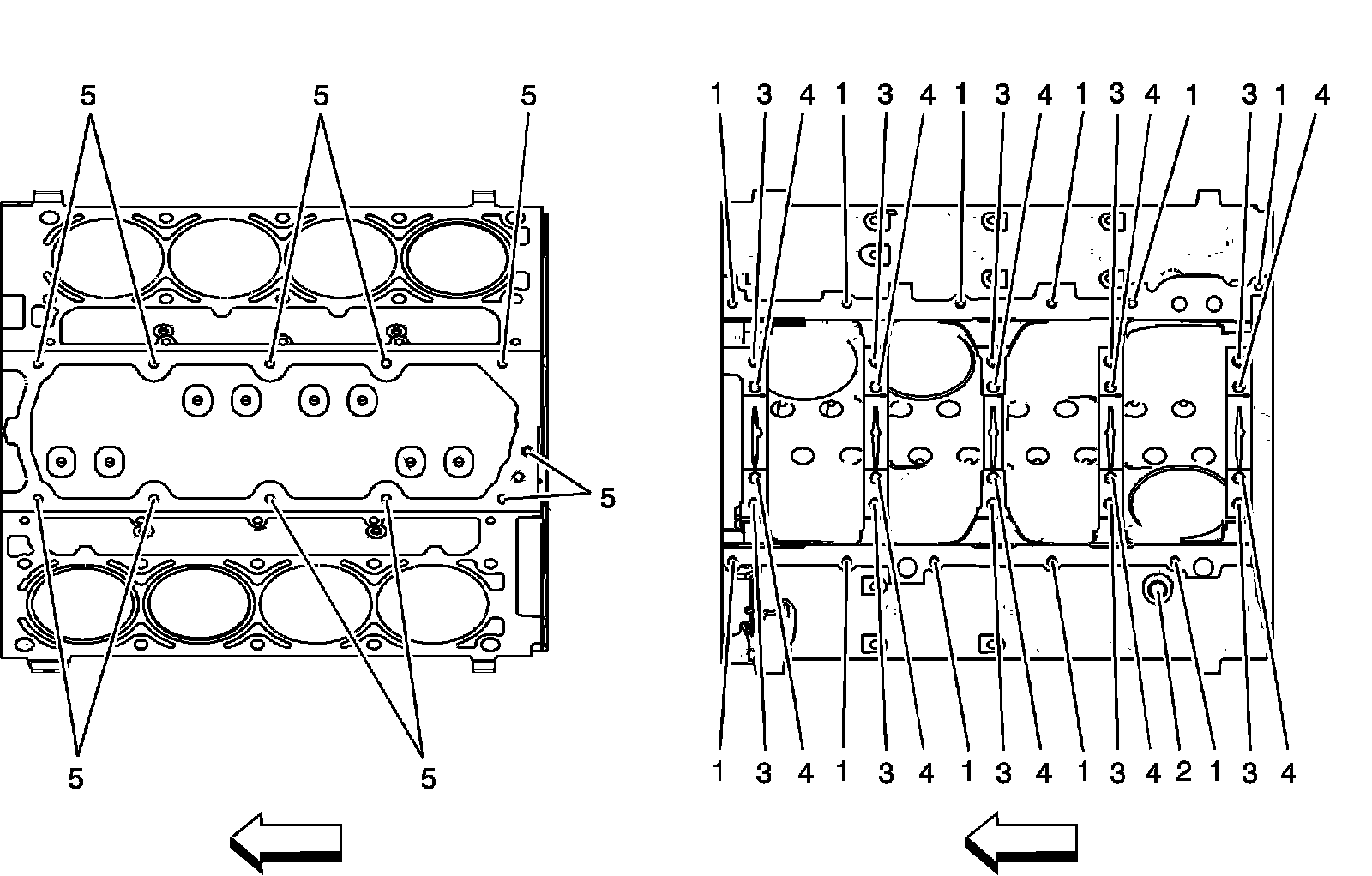

Engine Block - Top/Bottom Views:




Cylinder Head:

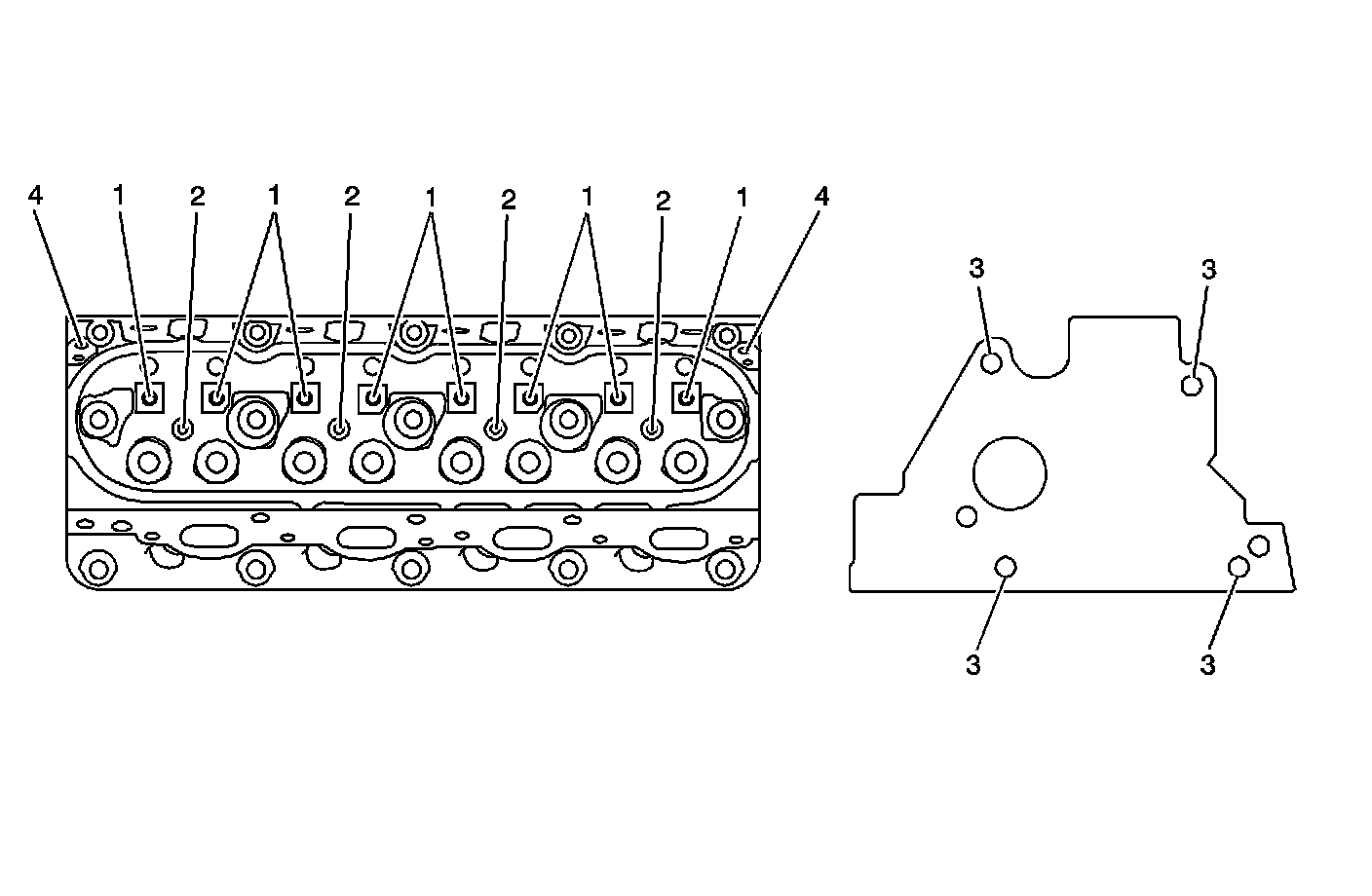

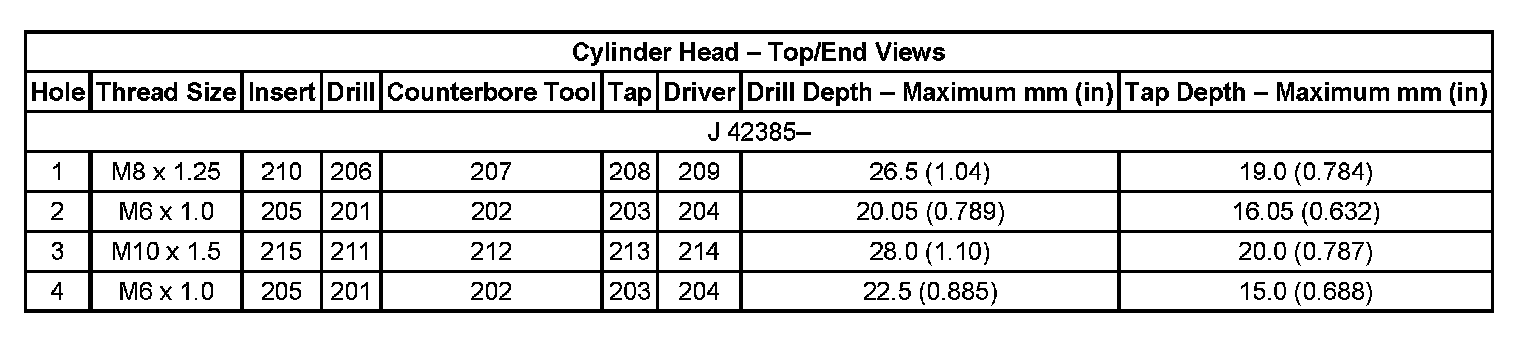

Cylinder Head - Top/End Views:




Cylinder Head:

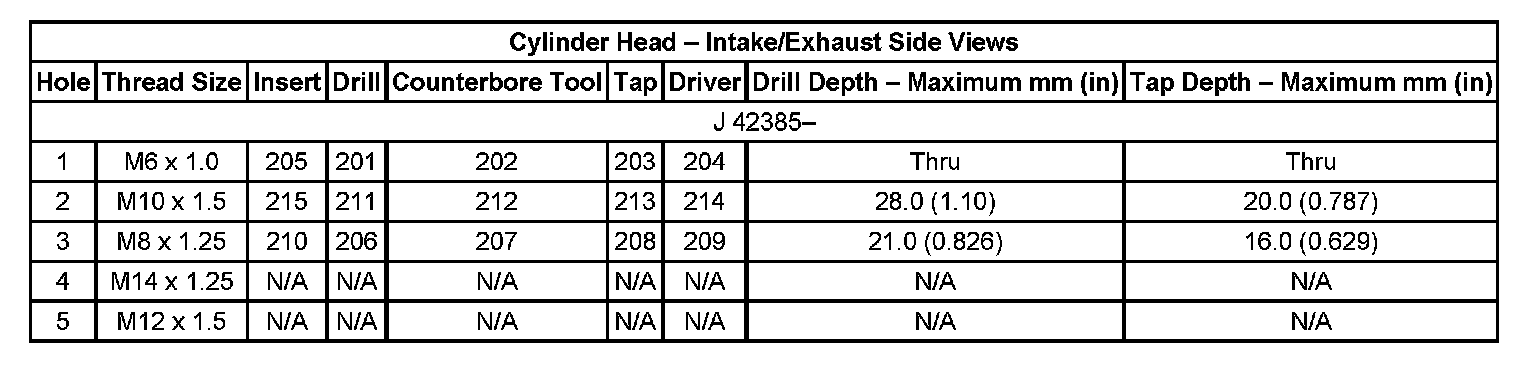

Cylinder Head - Intake/Exhaust Side Views:
