Thread Repair Specifications

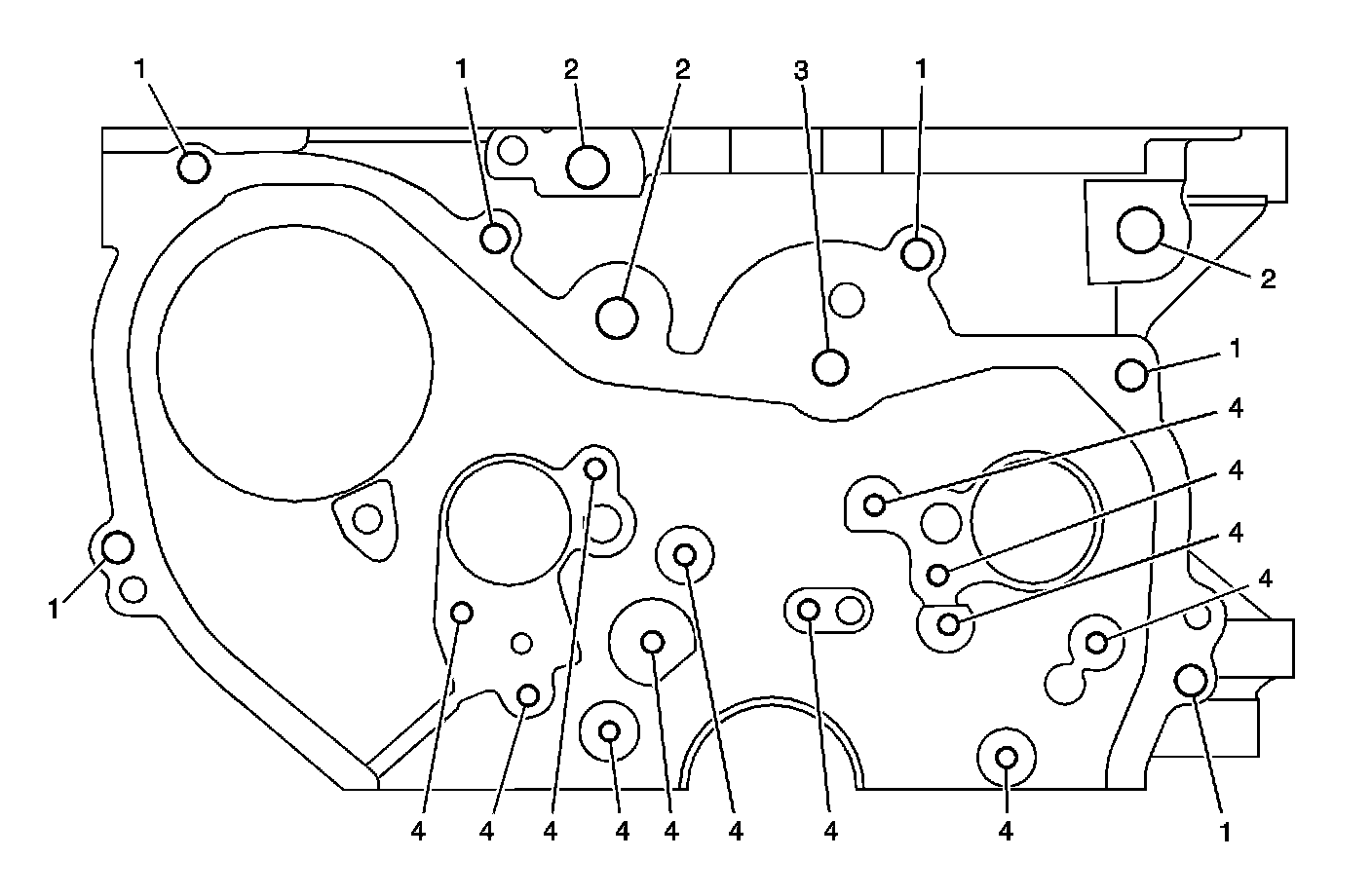

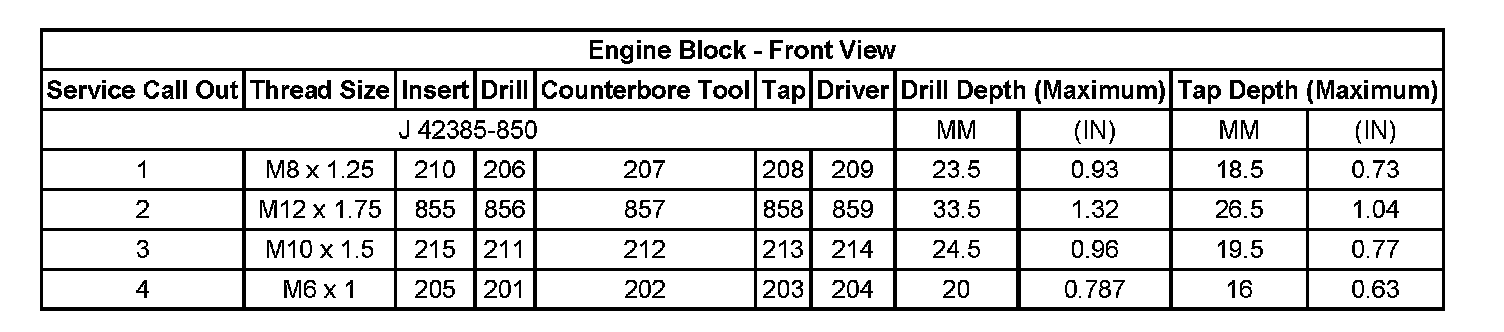

Engine Block - Front View:

Engine Block - Front View:

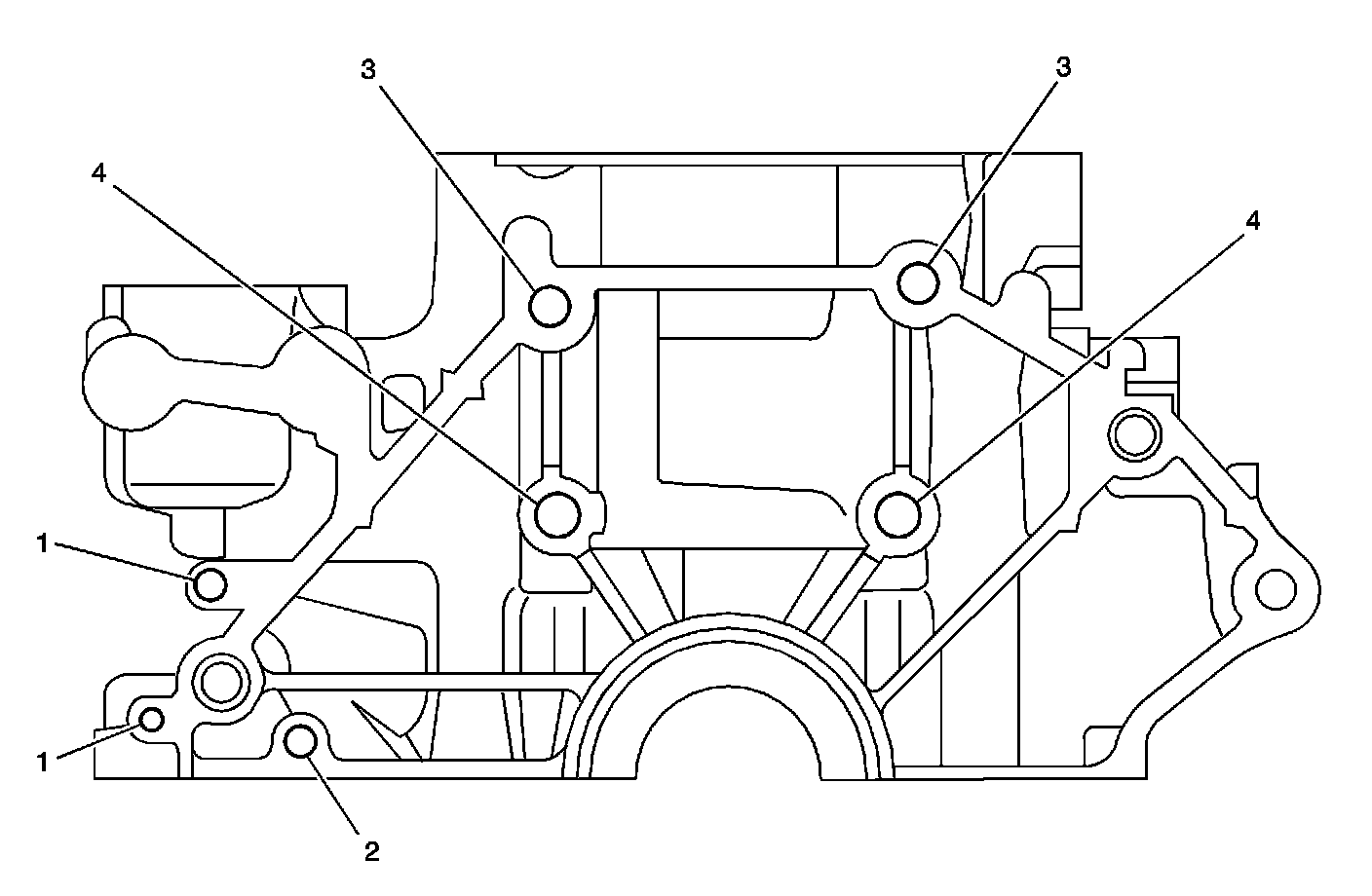

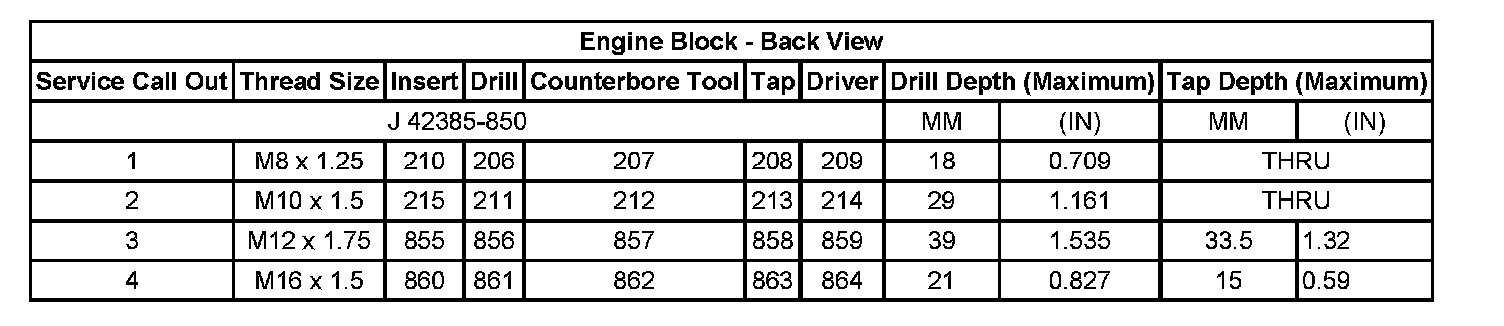

Engine Block - Back View:

Engine Block - Back View:

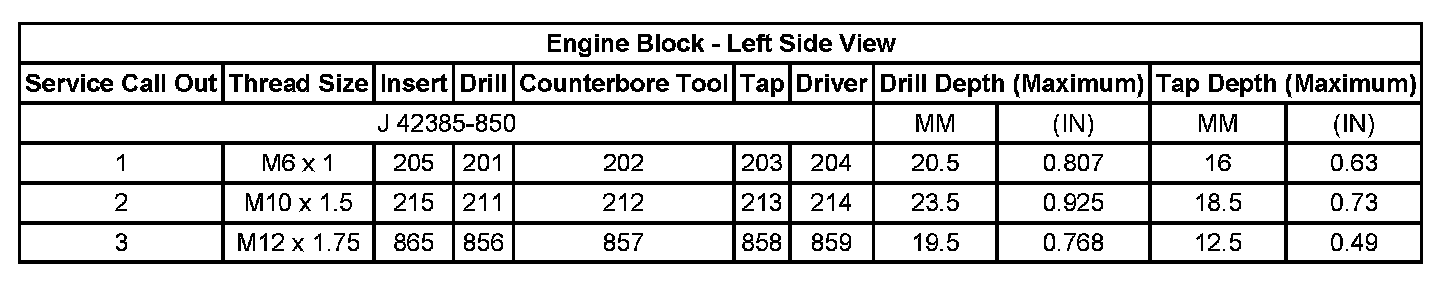

Engine Block - Left Side View:

Engine Block - Left Side View:

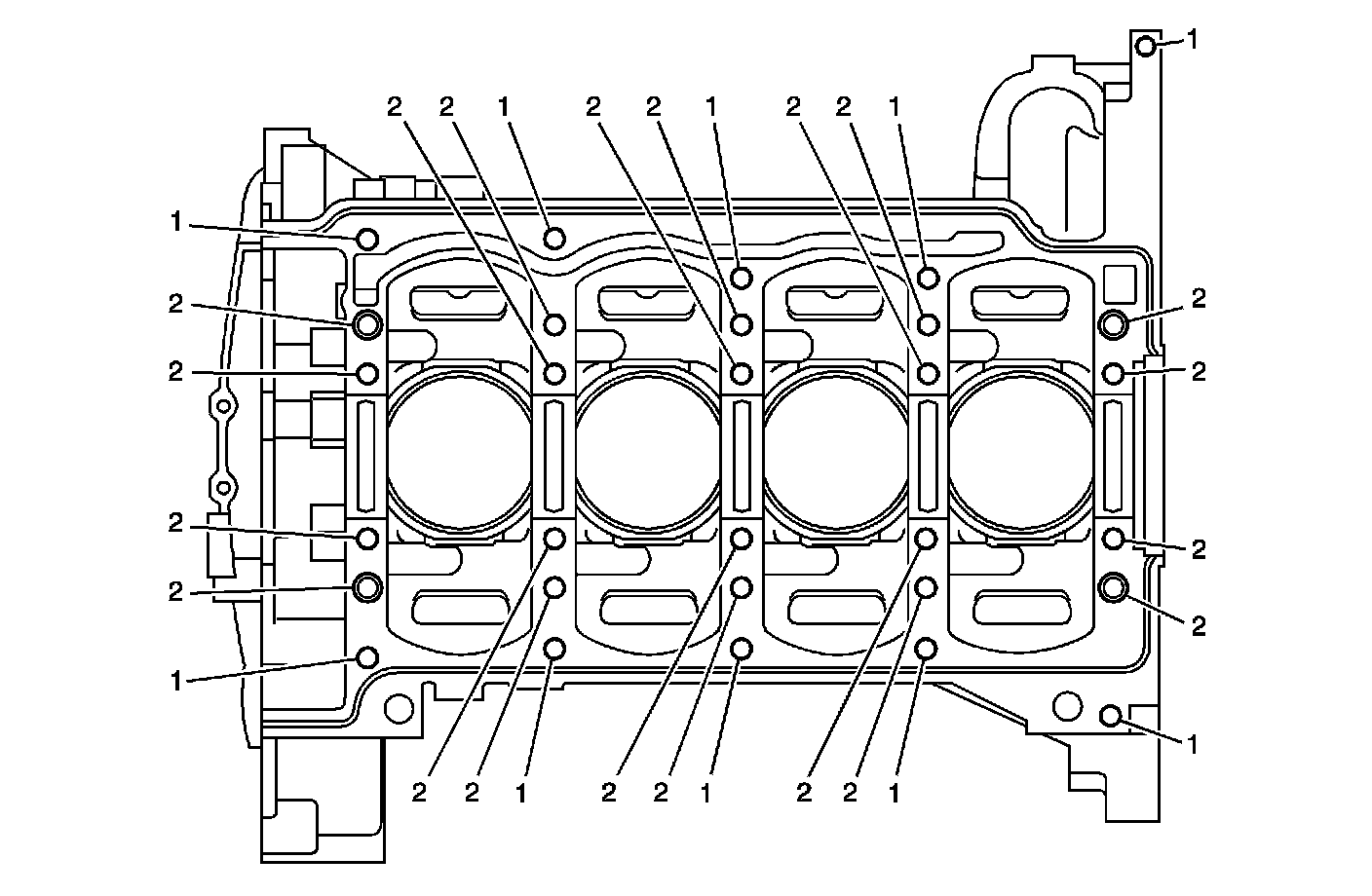

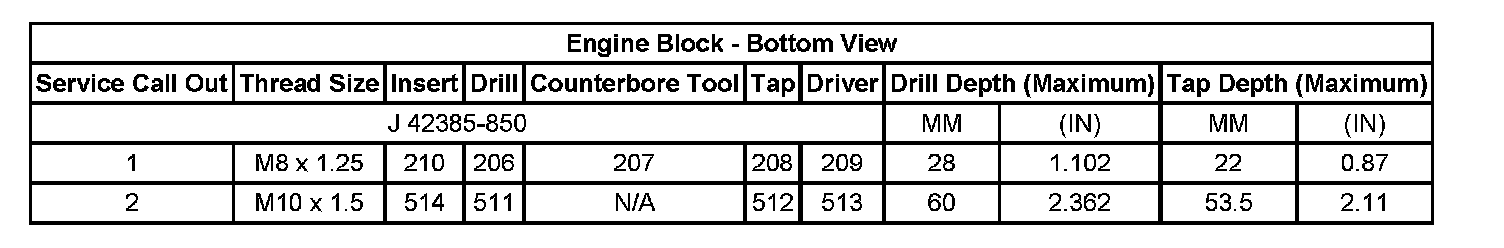

Engine Block - Bottom View:

Engine Block - Bottom View:

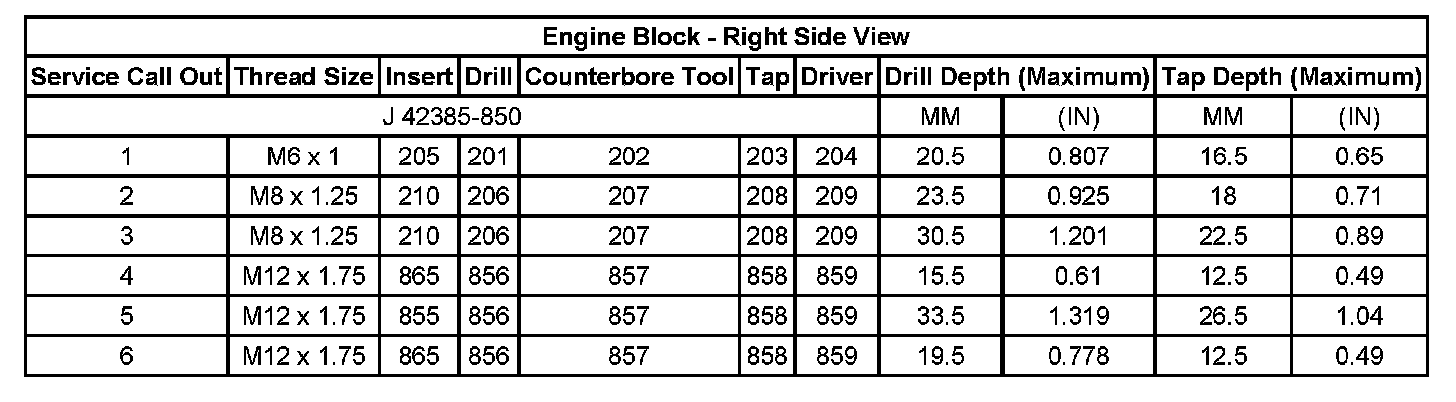

Engine Block - Right Side View:

Engine Block - Right Side View:

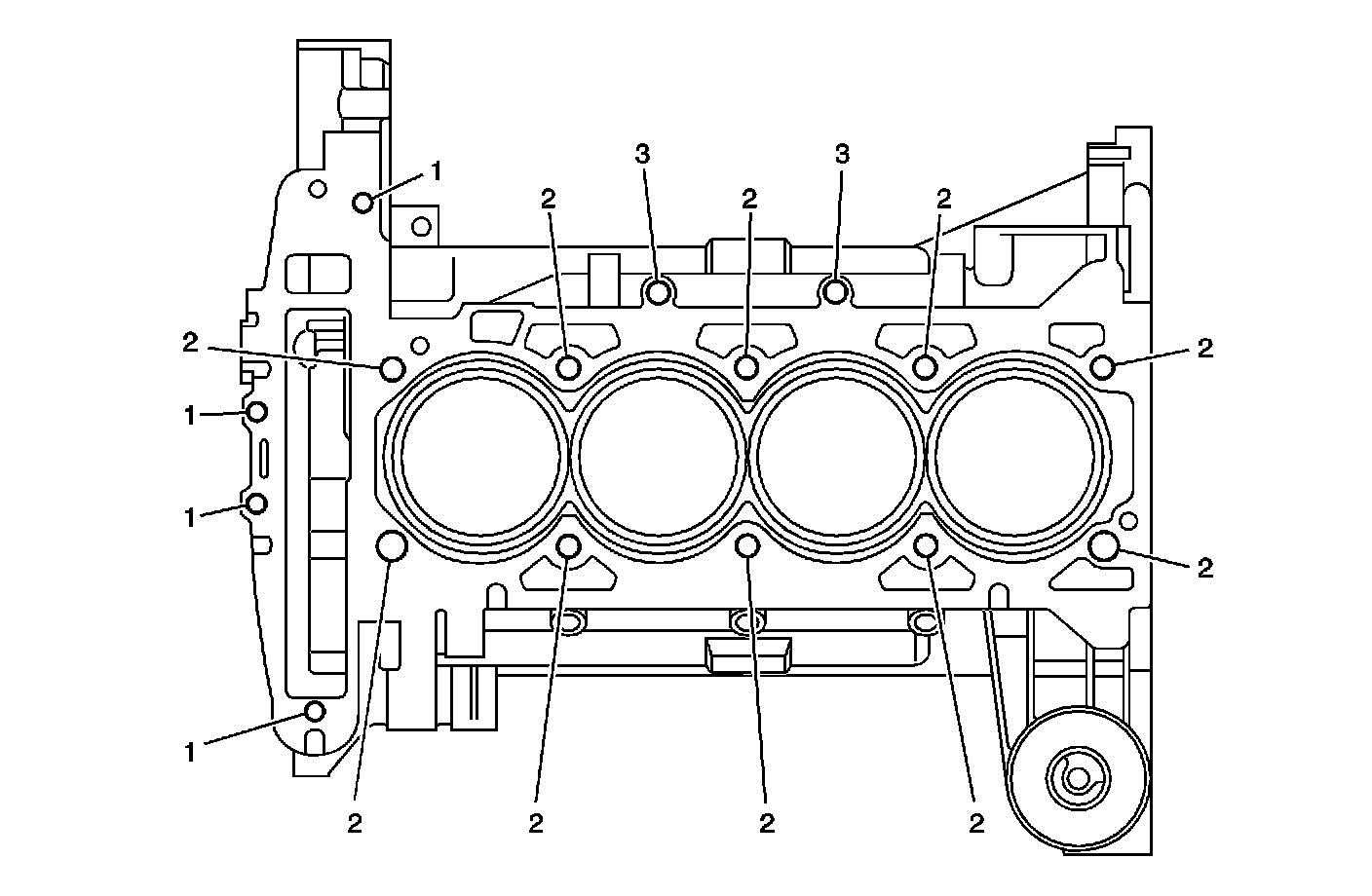

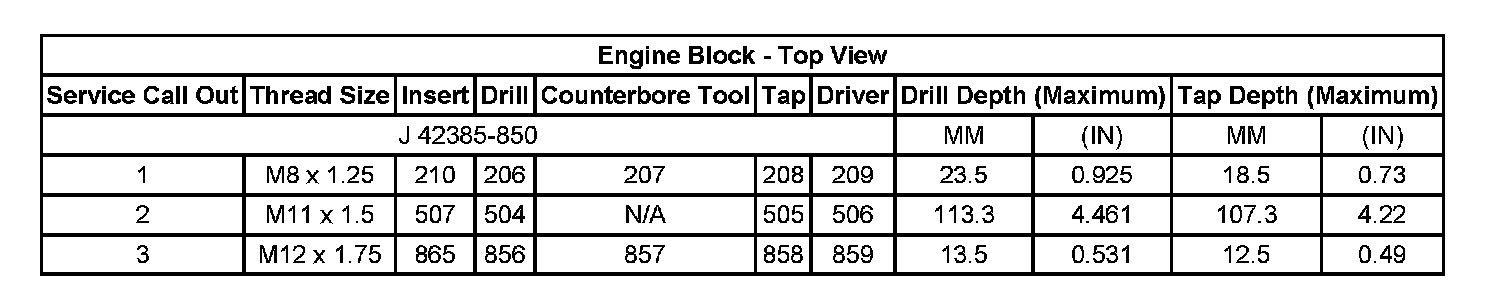

Engine Block - Top View:

Engine Block - Top View:

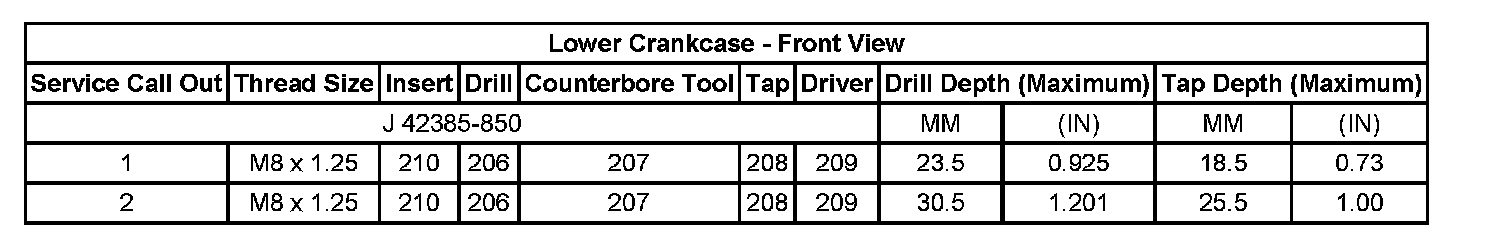

Lower Crankcase - Front View:

Lower Crankcase - Front View:

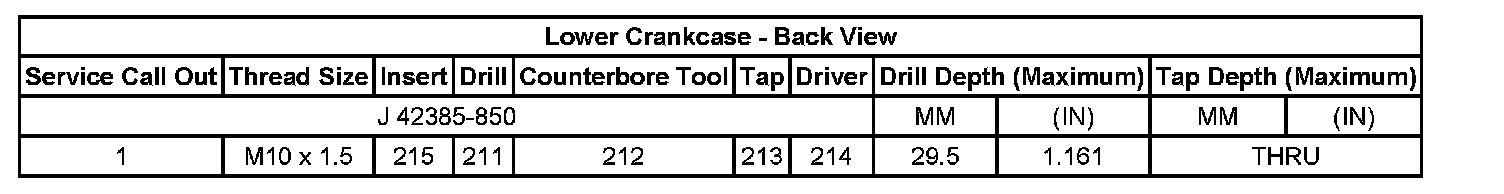

Lower Crankcase - Back View:

Lower Crankcase - Back View:

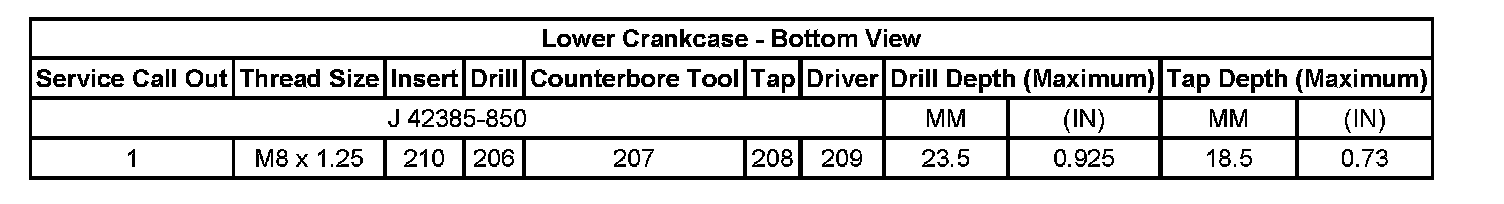

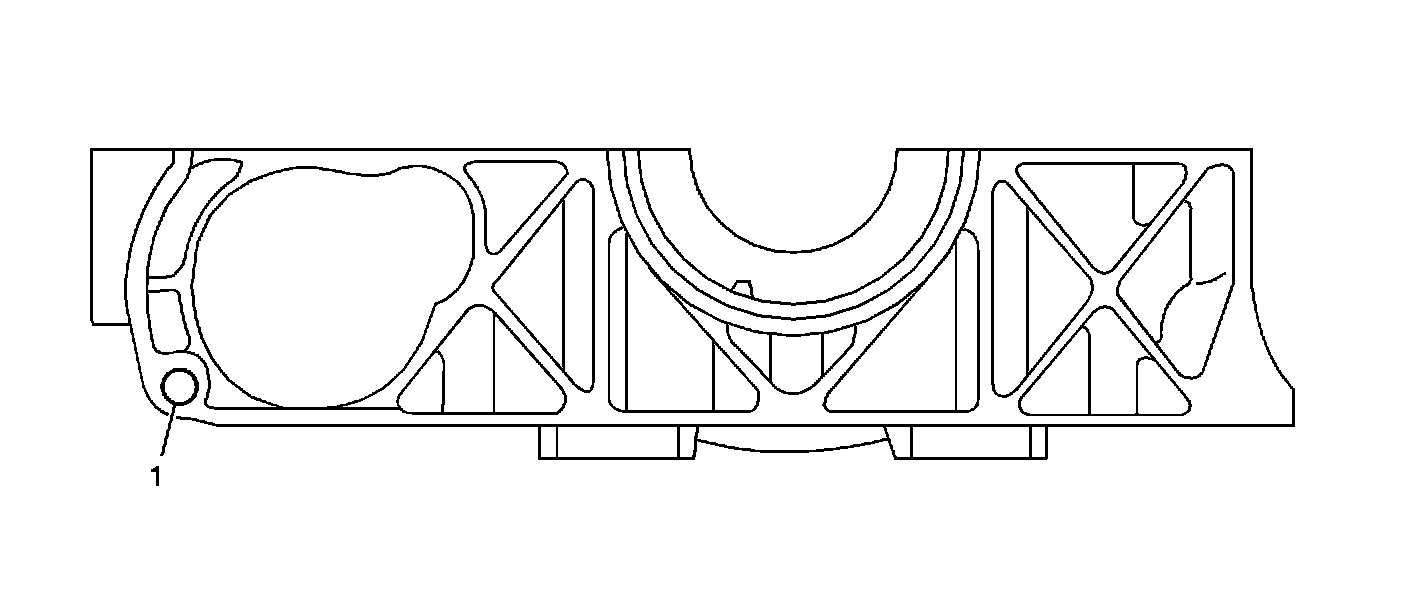

Lower Crankcase - Bottom View:

Lower Crankcase - Bottom View:

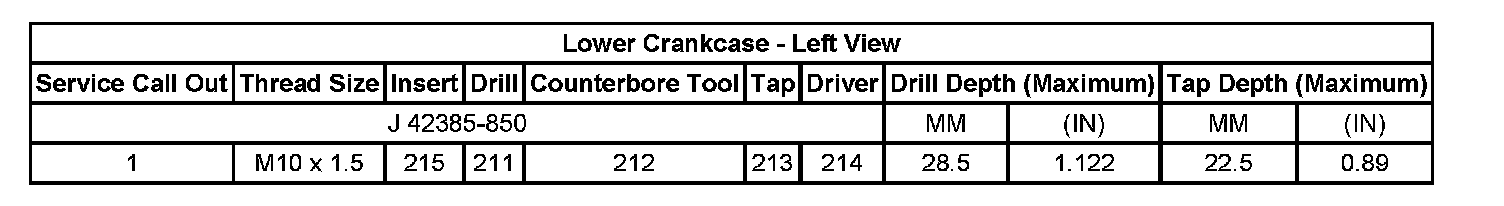

Lower Crankcase - Left View:

Lower Crankcase - Left View:

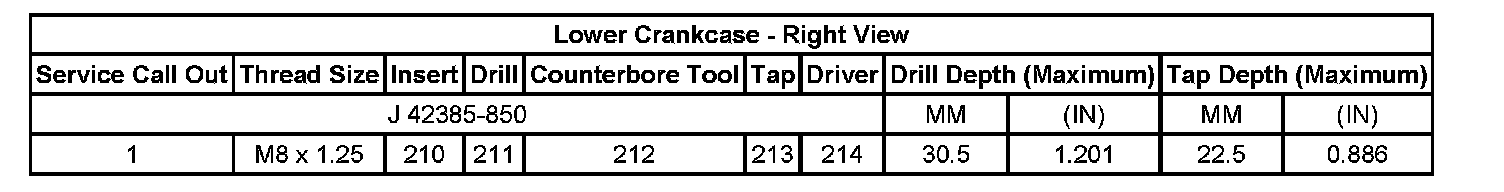

Lower Crankcase - Right View:

Lower Crankcase - Right View:

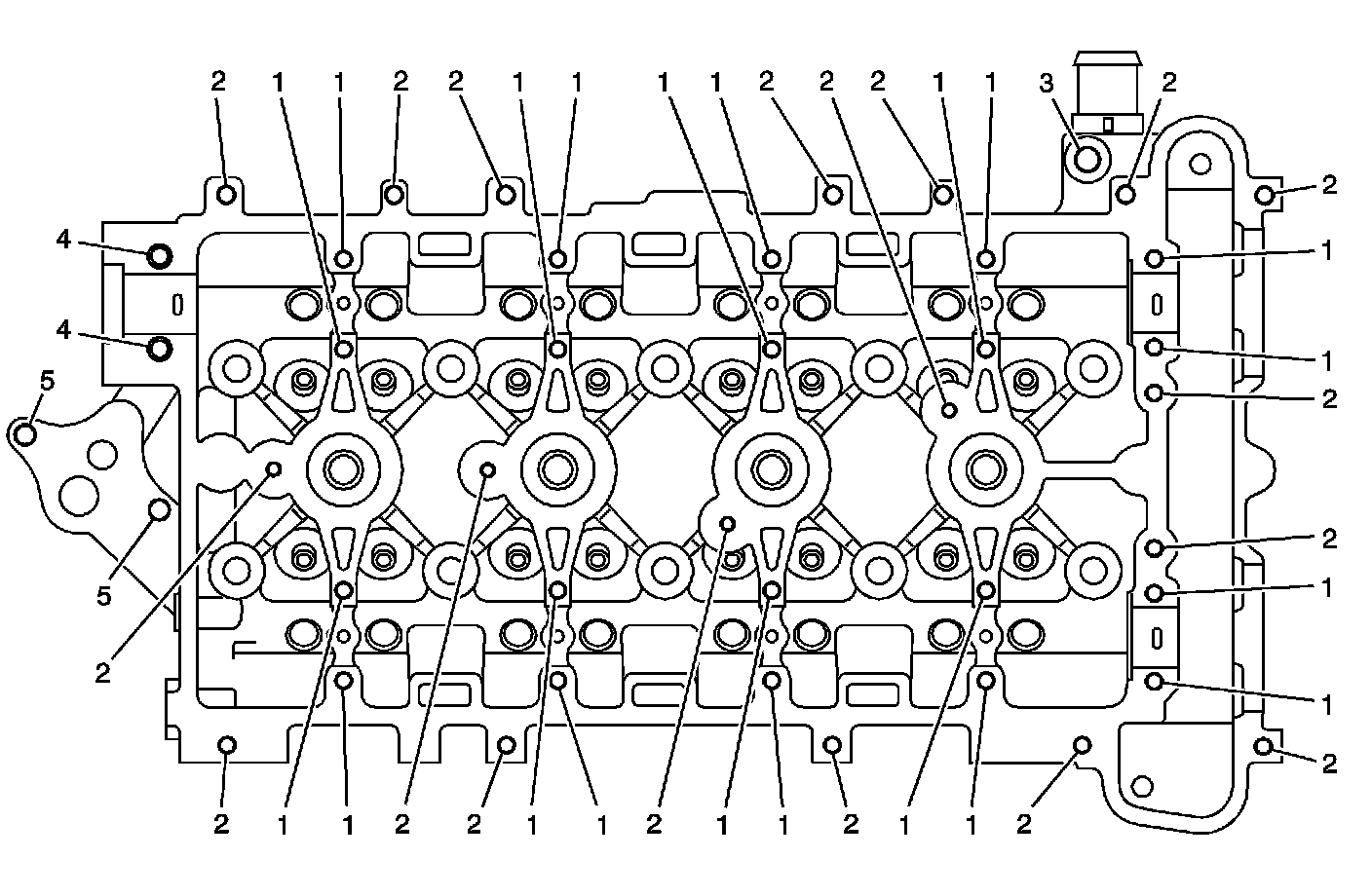

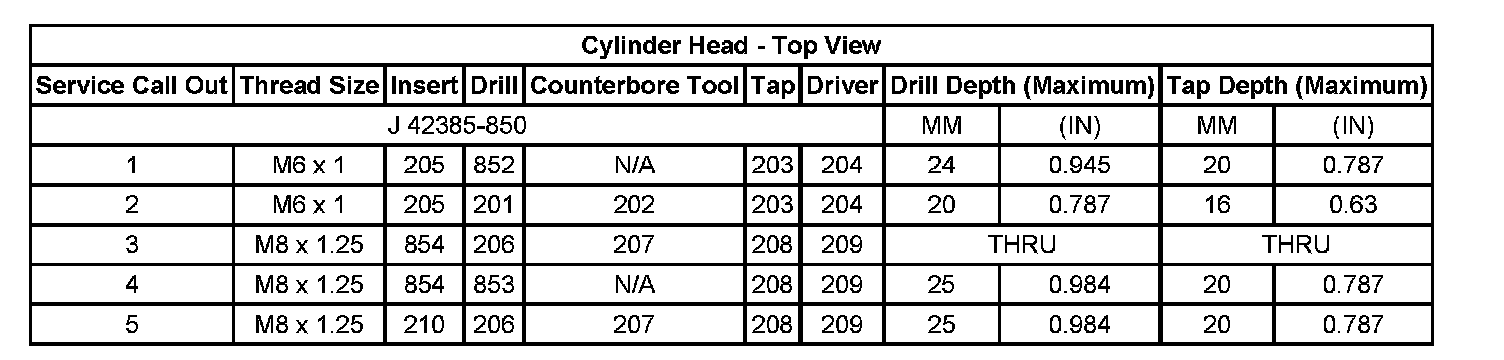

Cylinder Head - Top View:

Cylinder Head - Top View:

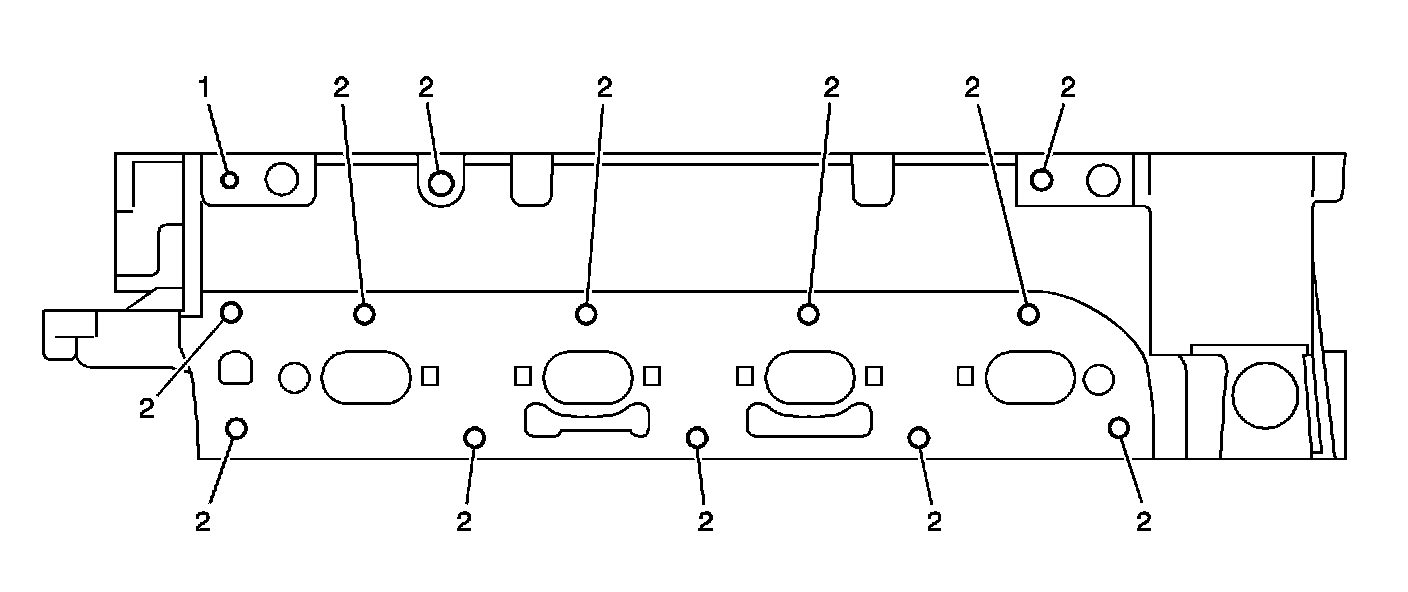

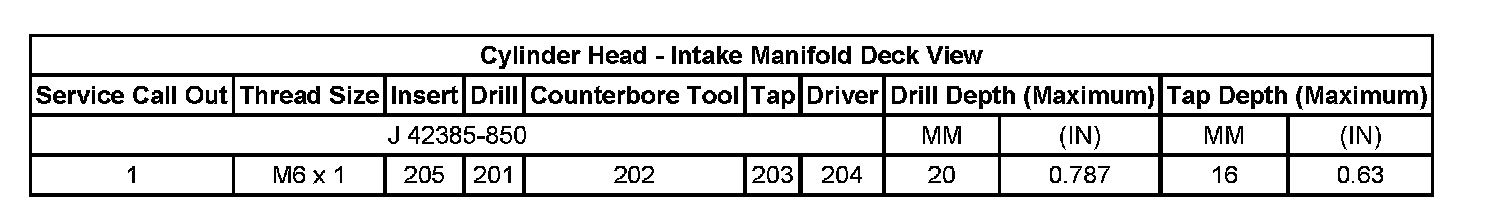

Cylinder Head - Intake Manifold Deck View:

Cylinder Head - Intake Manifold Deck View:

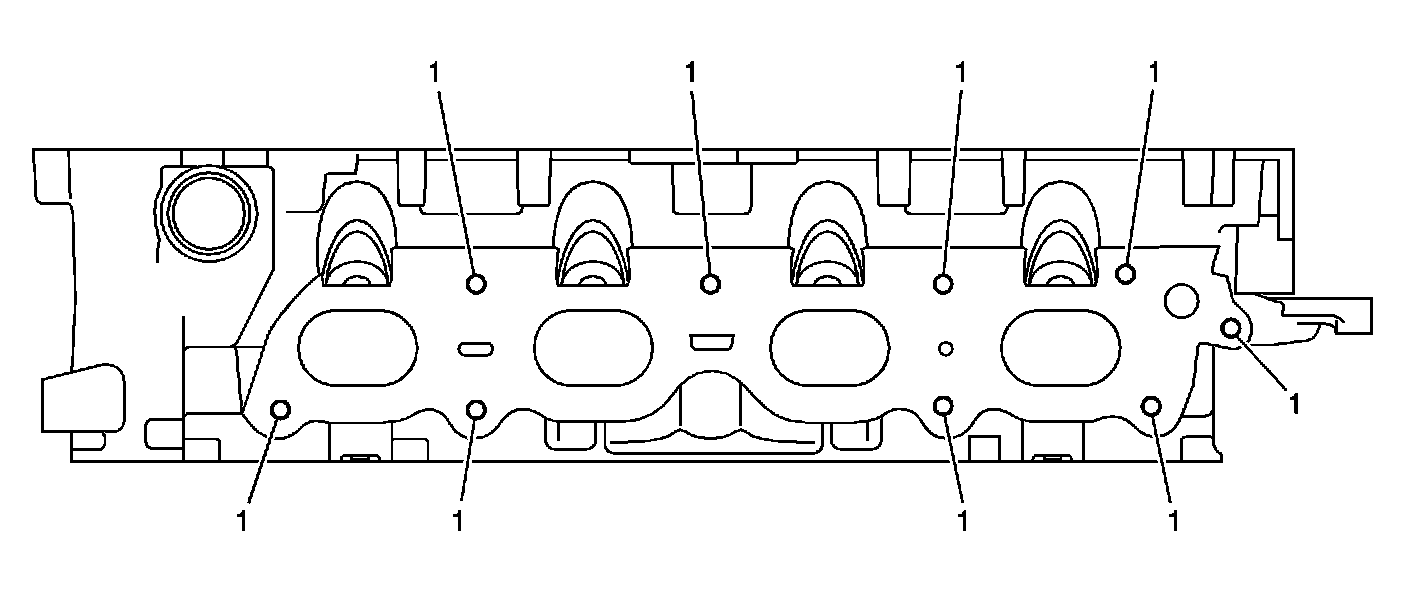

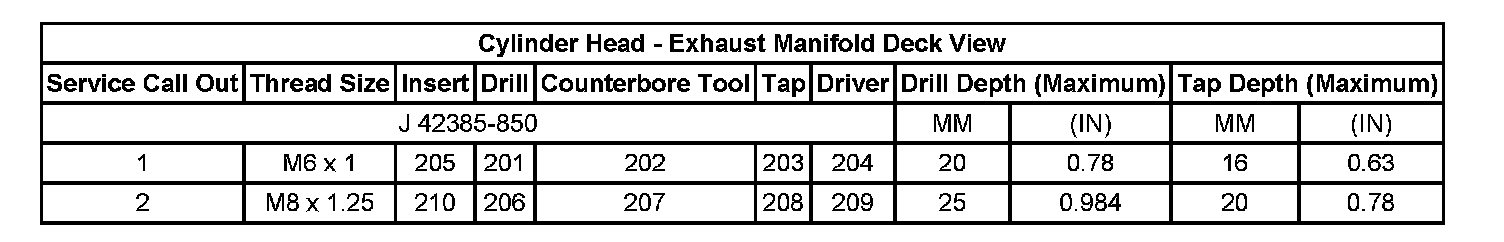

Cylinder Head - Exhaust Manifold Deck View:

Cylinder Head - Exhaust Manifold Deck View:

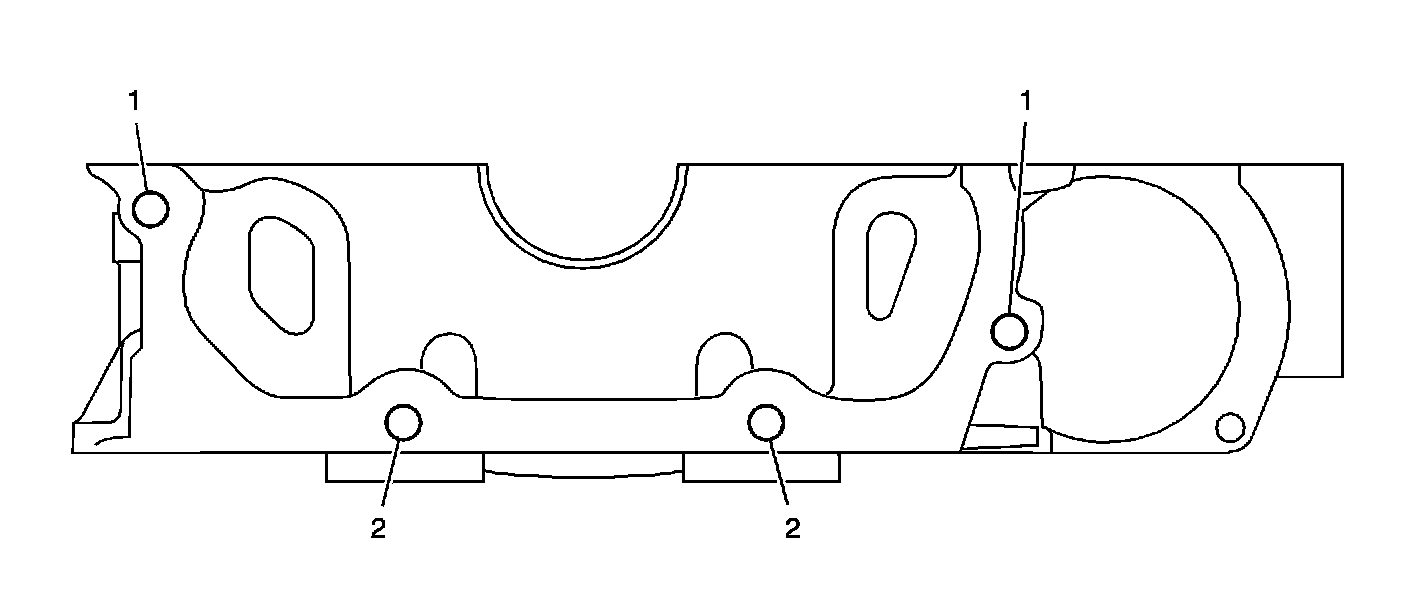

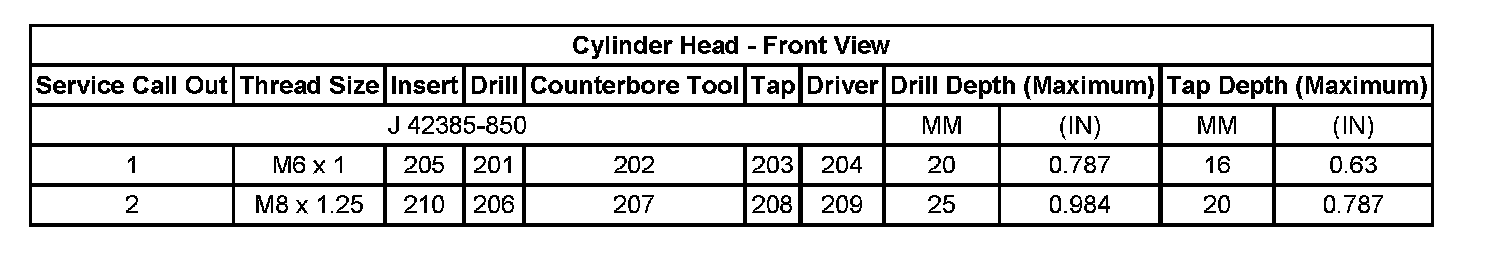

Cylinder Head - Front View:

Cylinder Head - Front View:

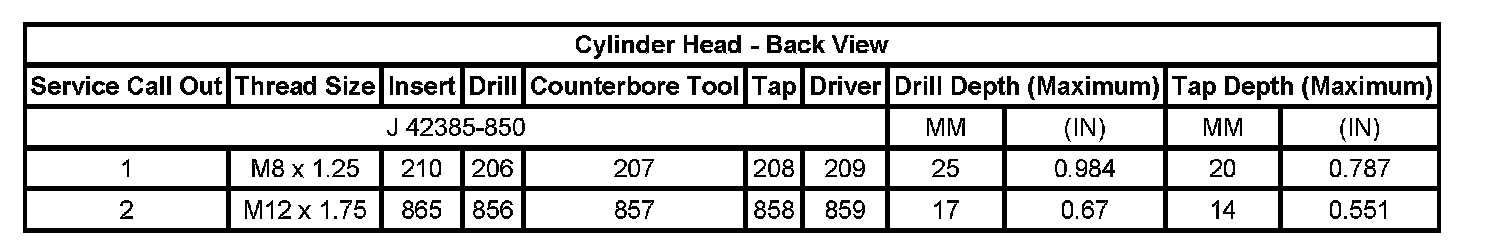

Cylinder Head - Back View:

Cylinder Head - Back View:

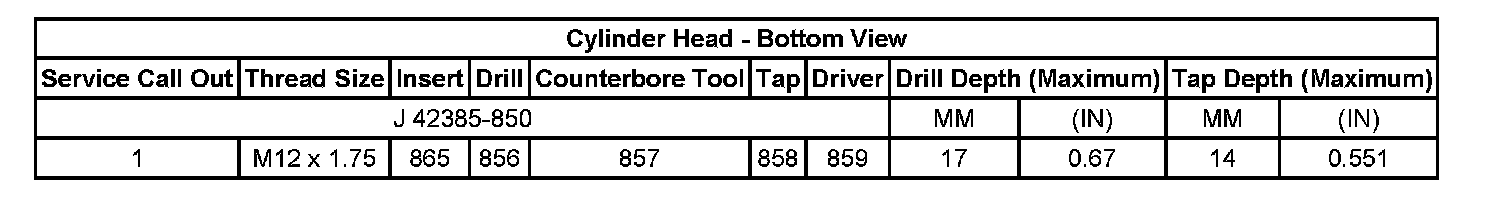

Cylinder Head - Bottom View:

Cylinder Head - Bottom View:
