Engine Control Module Connector End Views

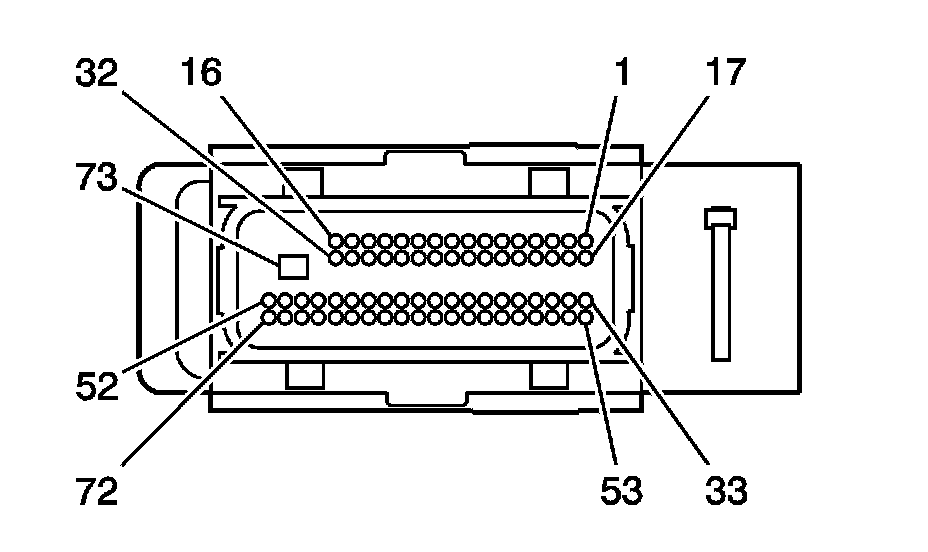

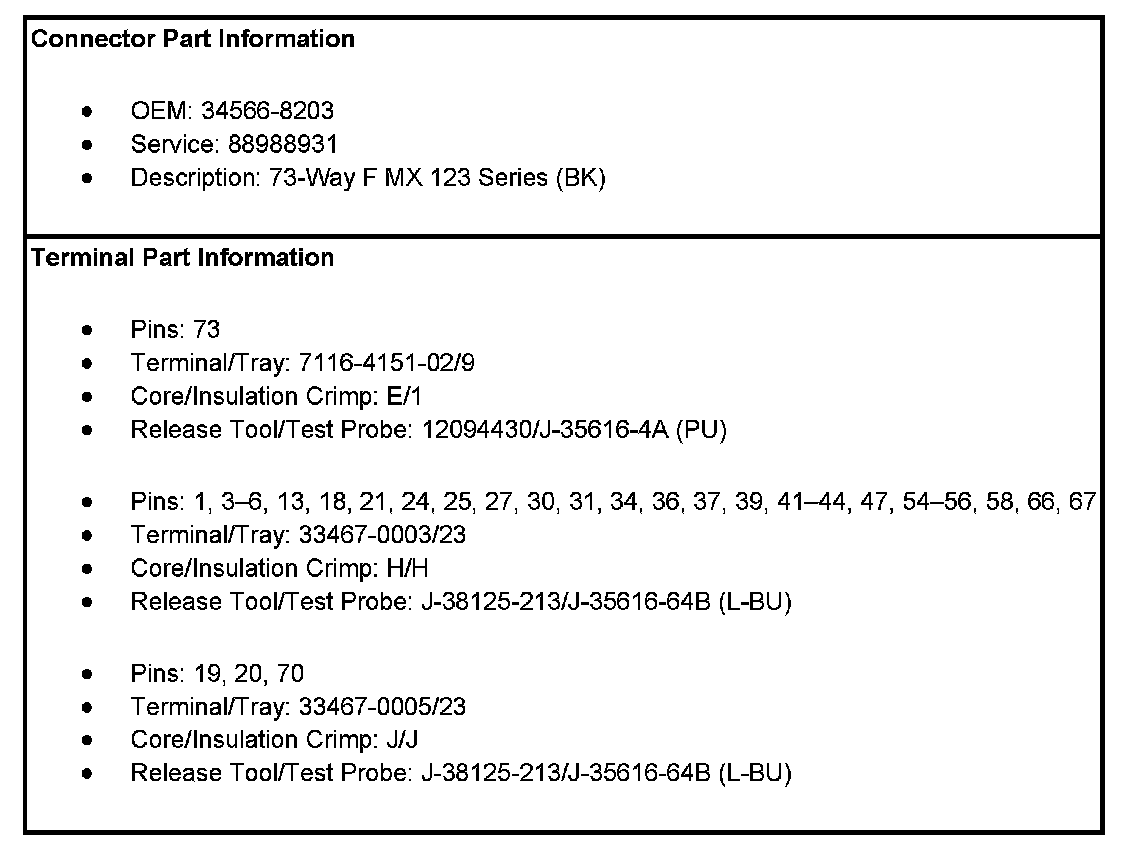

Engine Control Module (ECM) C1

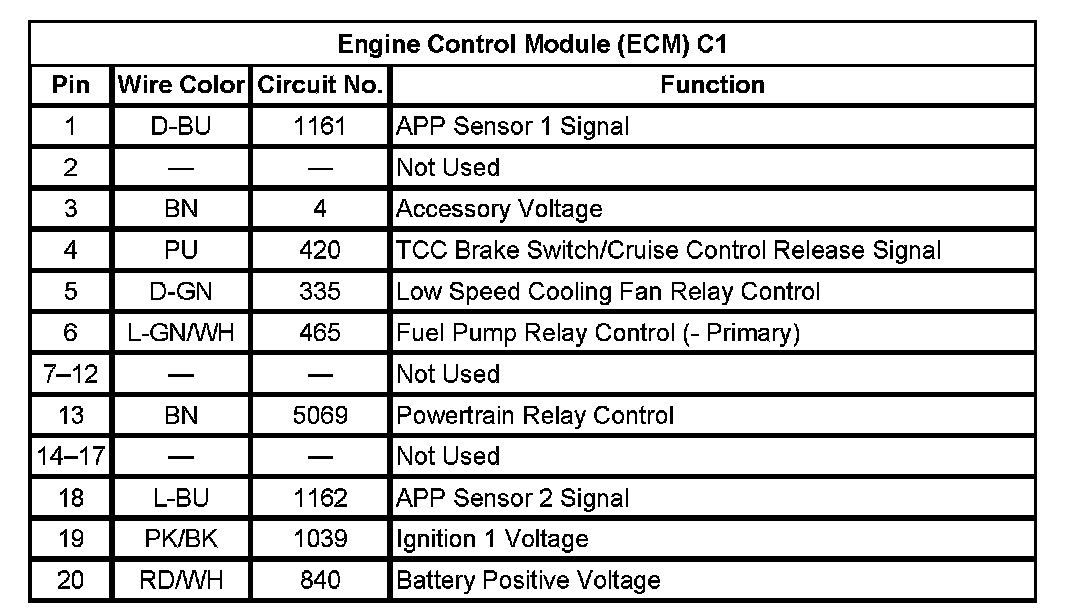

Engine Control Module (ECM) C1 (Pin 1 To 20):

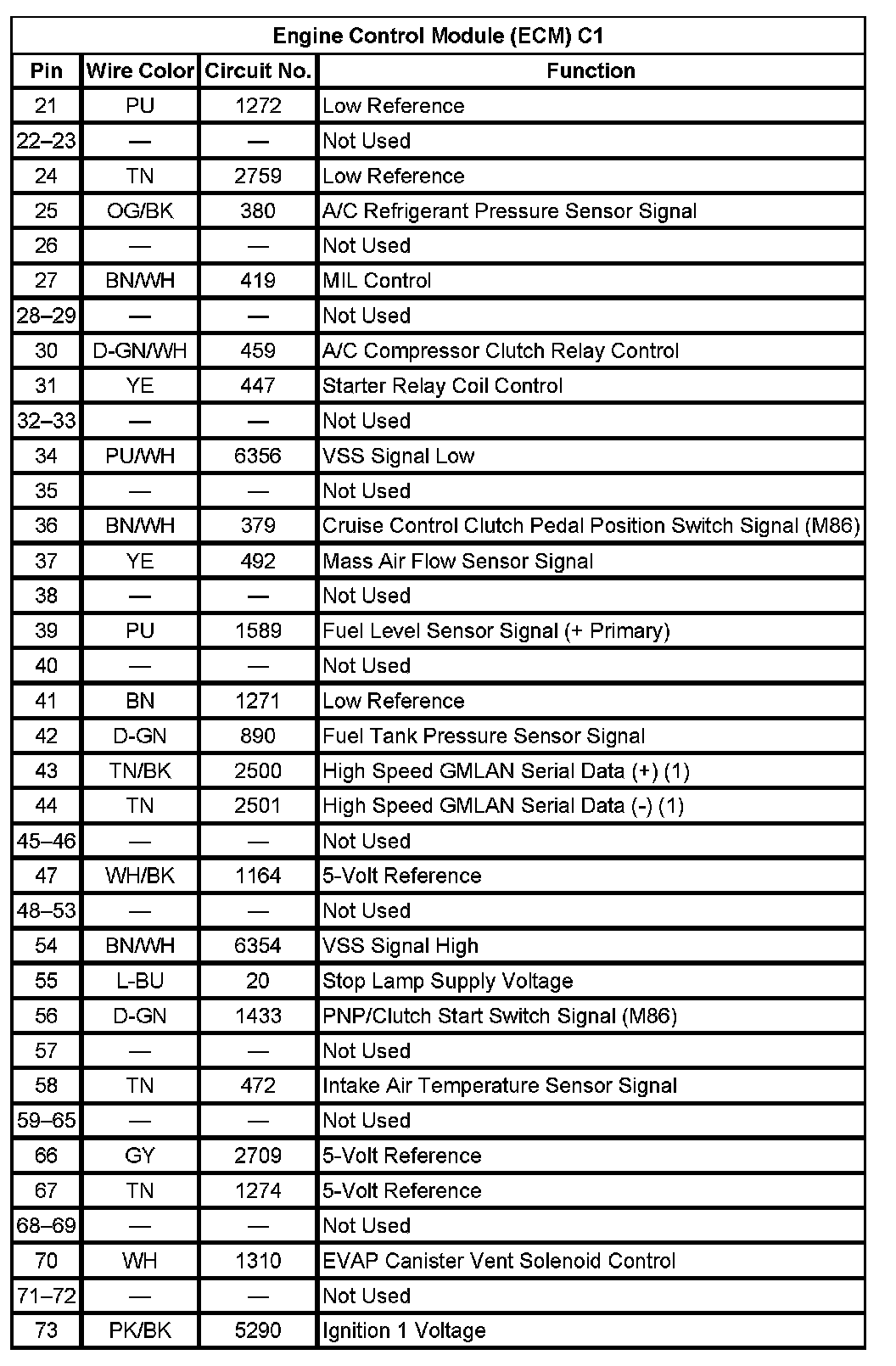

Engine Control Module (ECM) C1 (Pin 21 To 73):

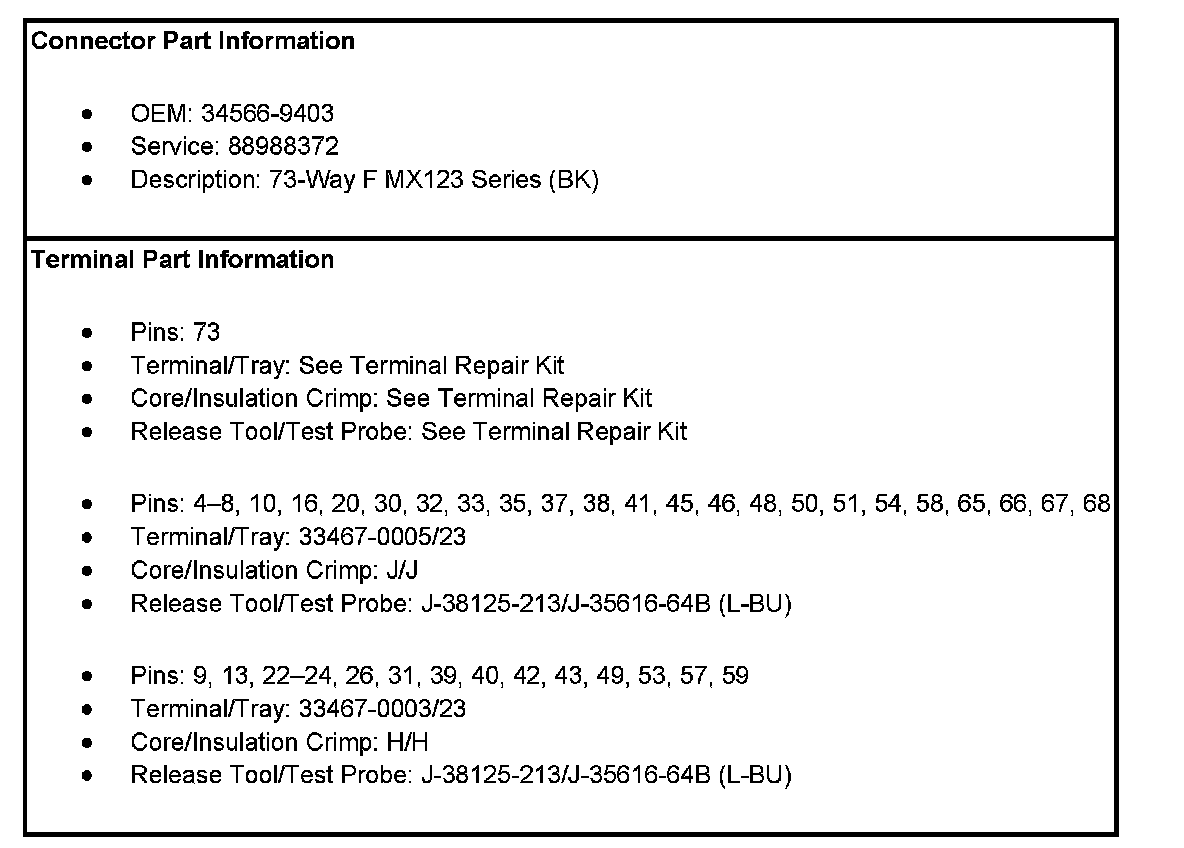

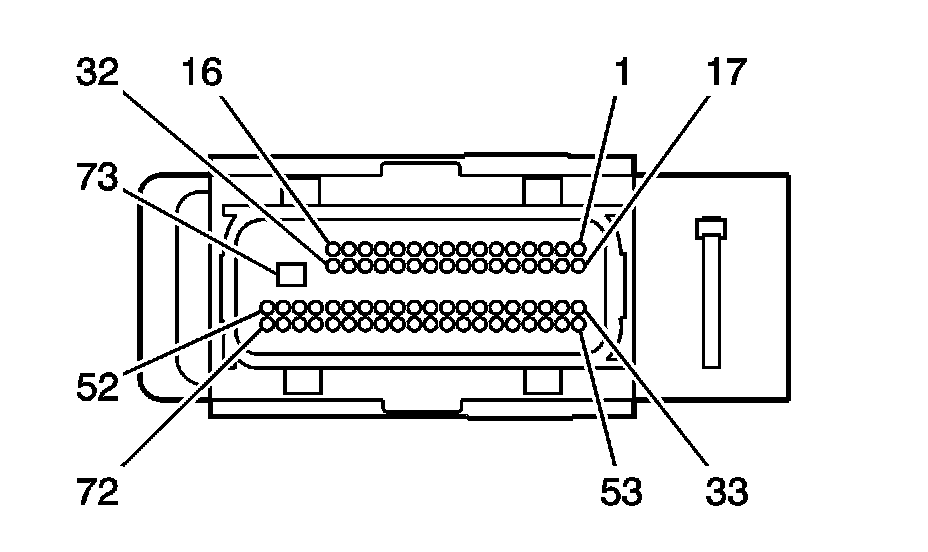

Engine Control Module (ECM) C2

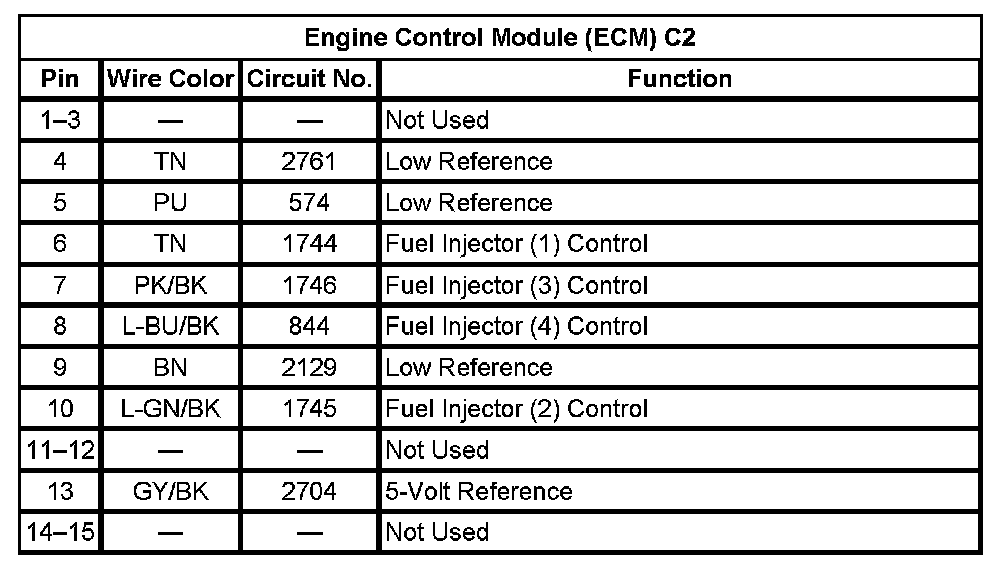

Engine Control Module (ECM) C2 (Pin 1 To 15):




Engine Control Module (ECM) C2 (Pin 16 To 73):
