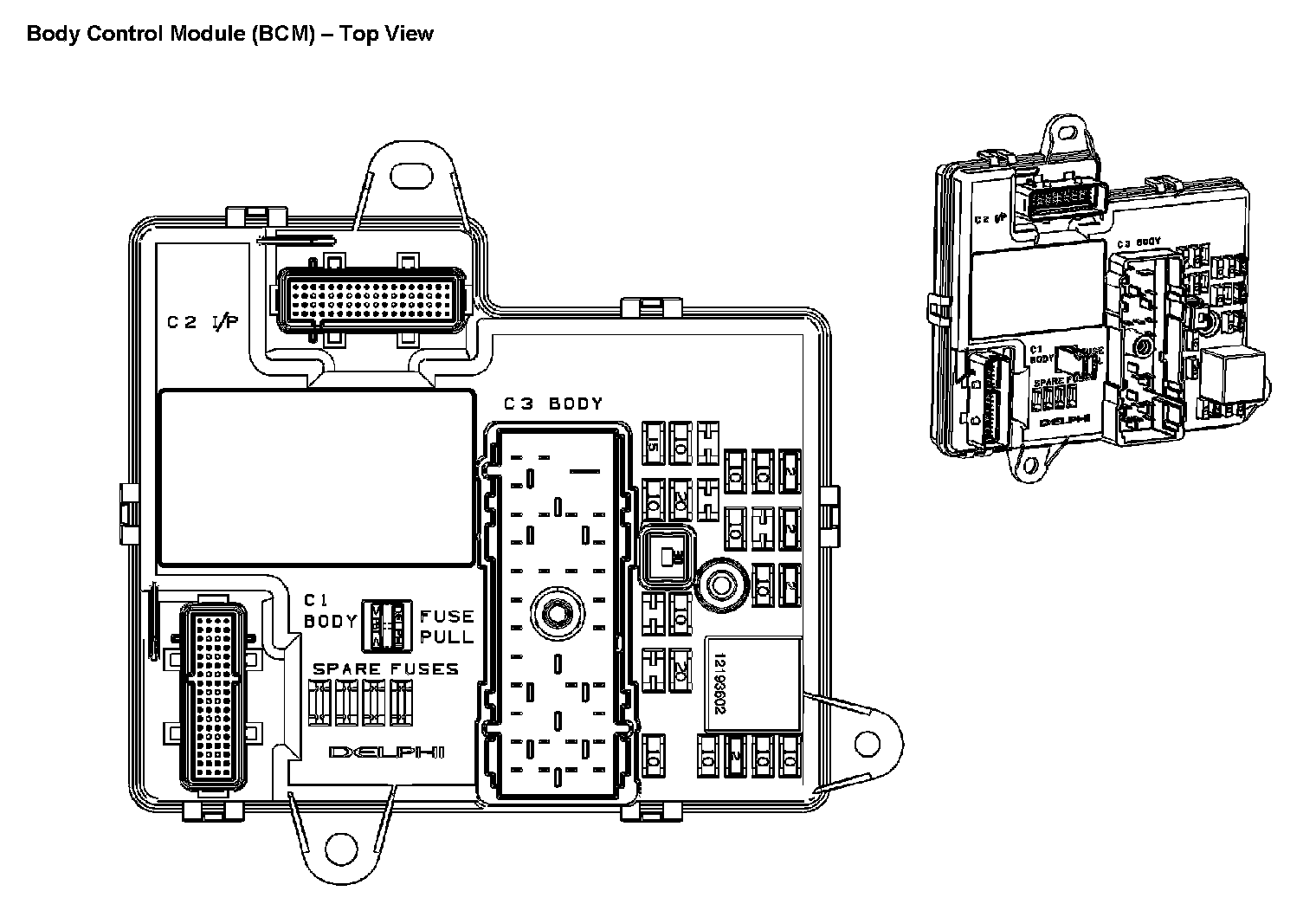

Body Control Module (BCM) - Top View:

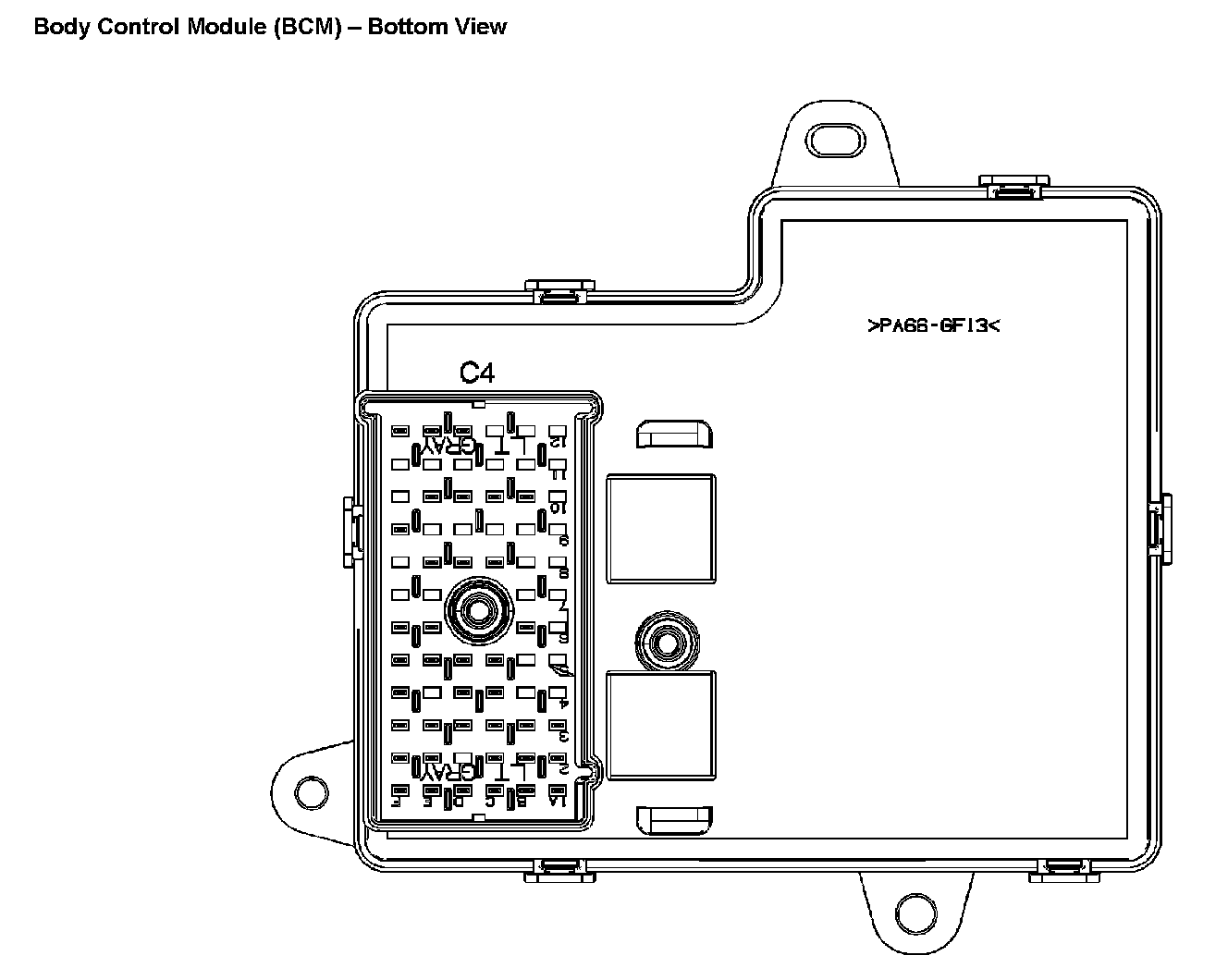

Body Control Module (BCM) - Bottom View:

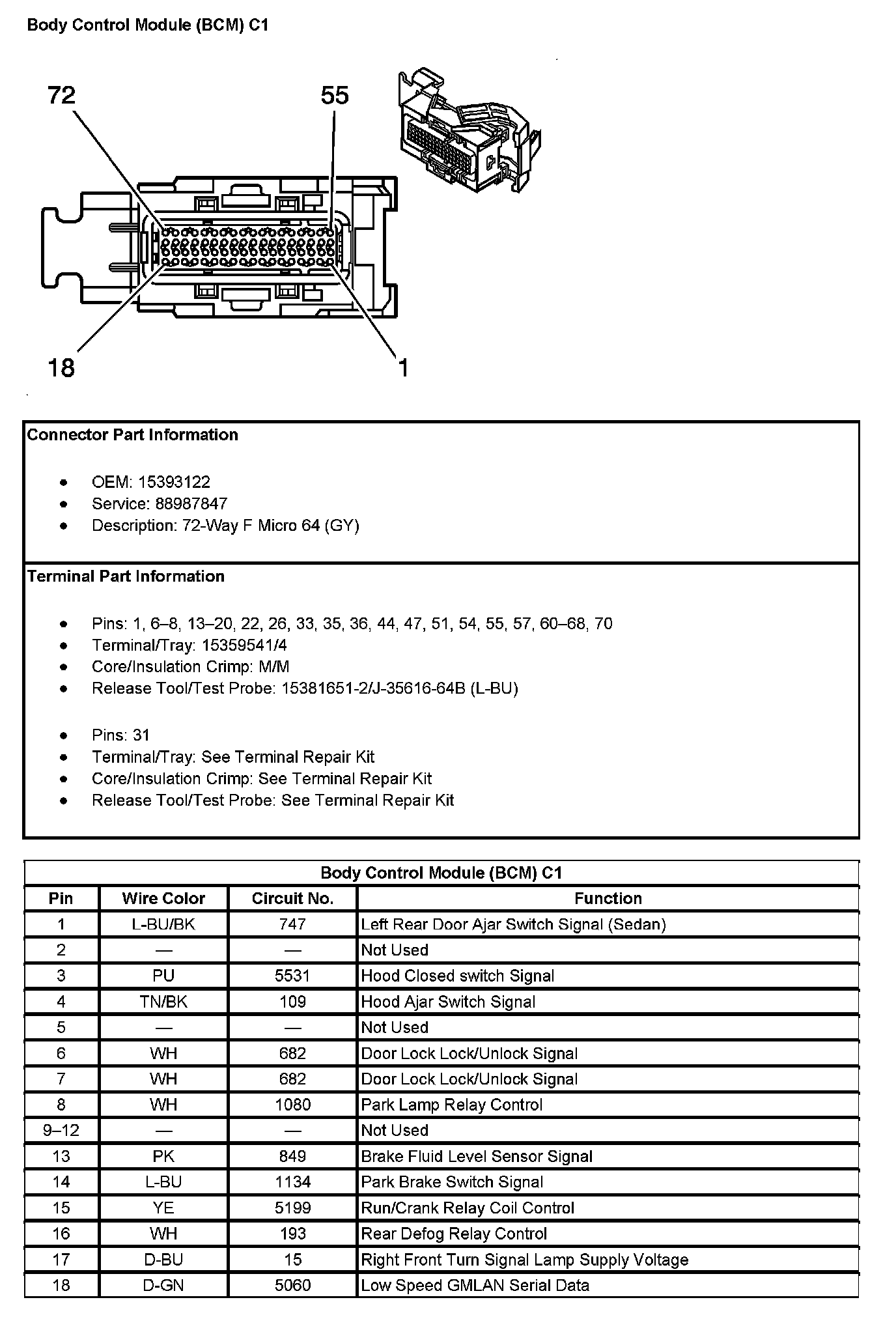

Body Control Module (BCM) C1 (Pin 1 To 8):

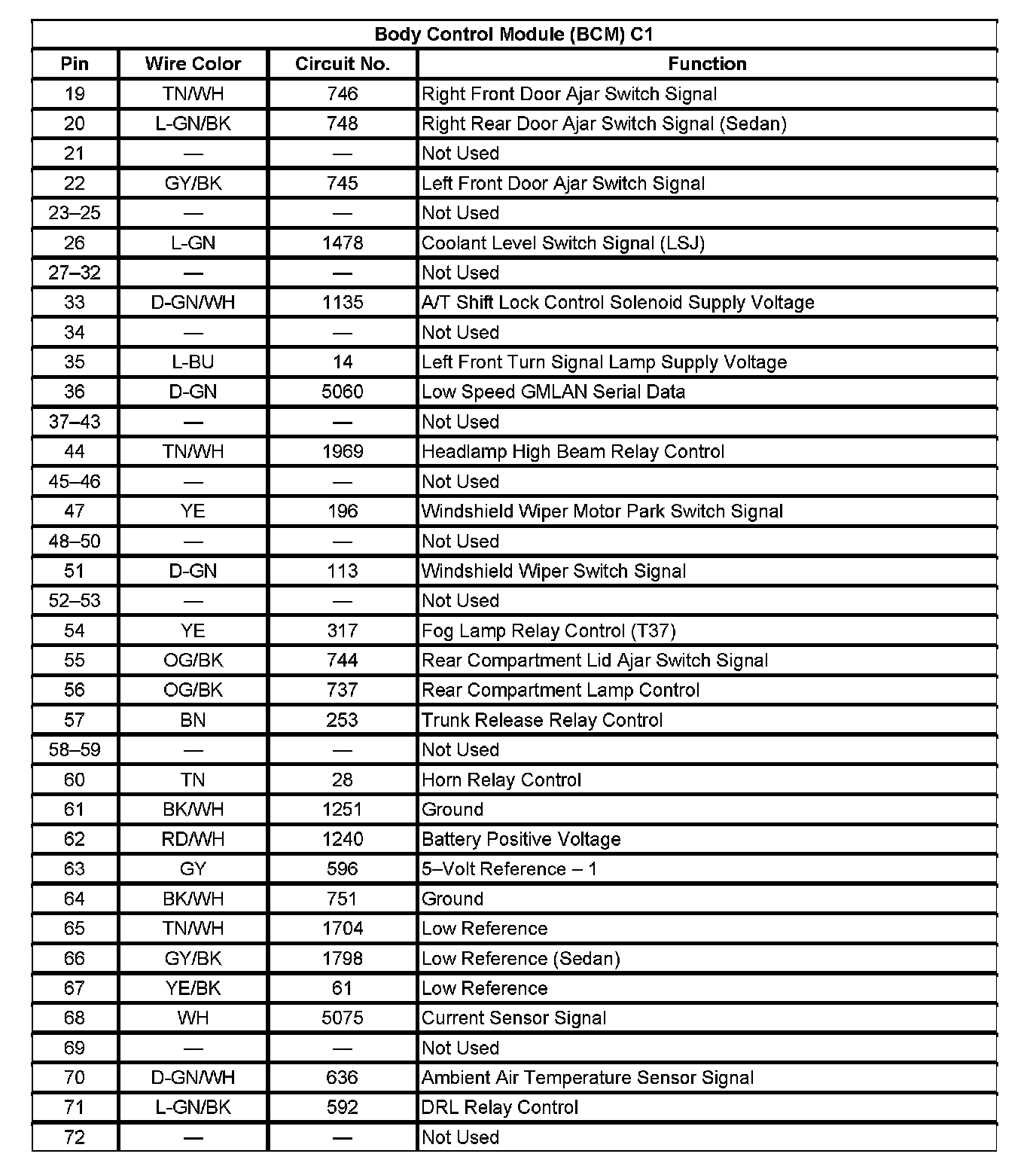

Body Control Module (BCM) C1 (Pin 19 To 72):

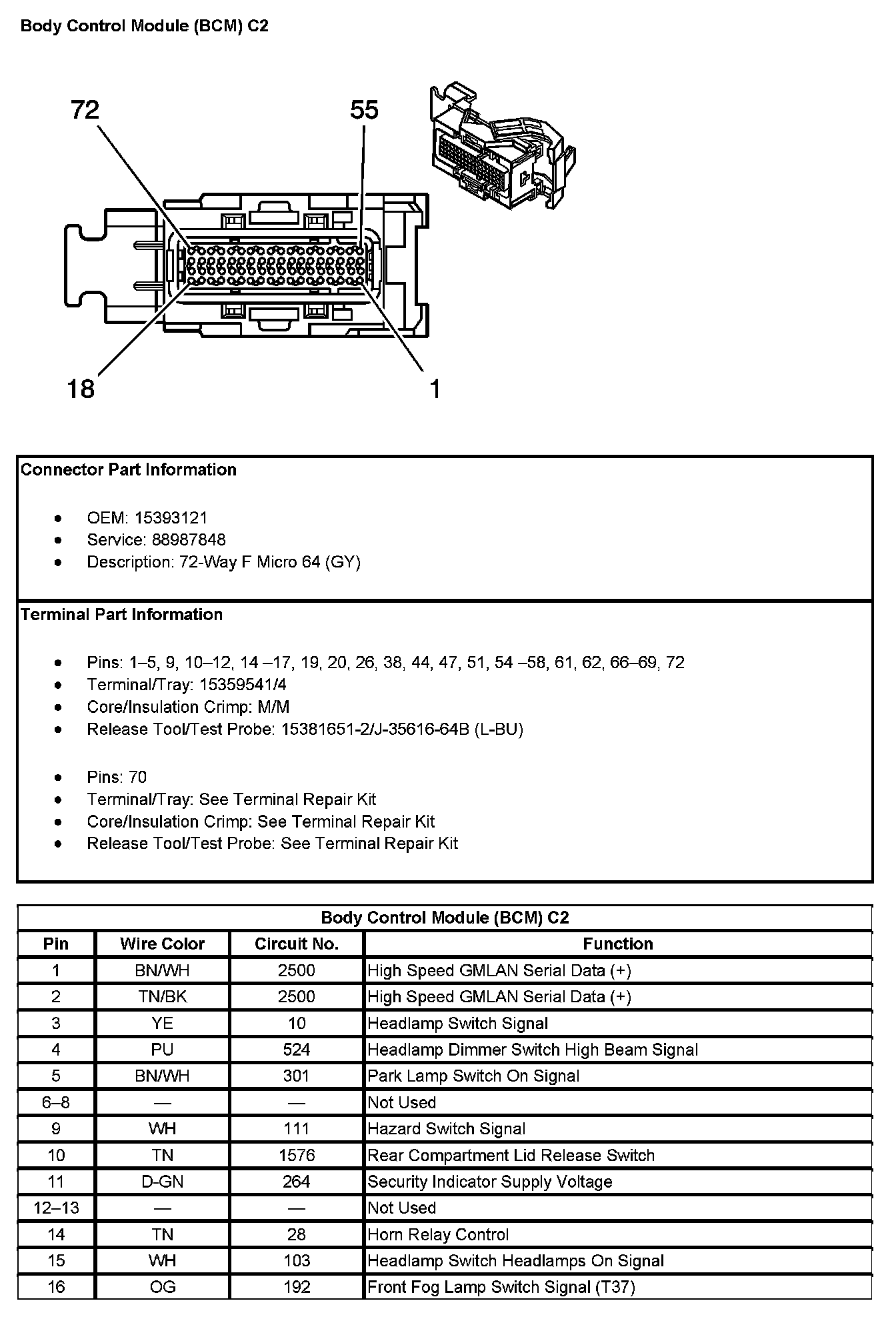

Body Control Module (BCM) C2 (Pin 1 To 16):

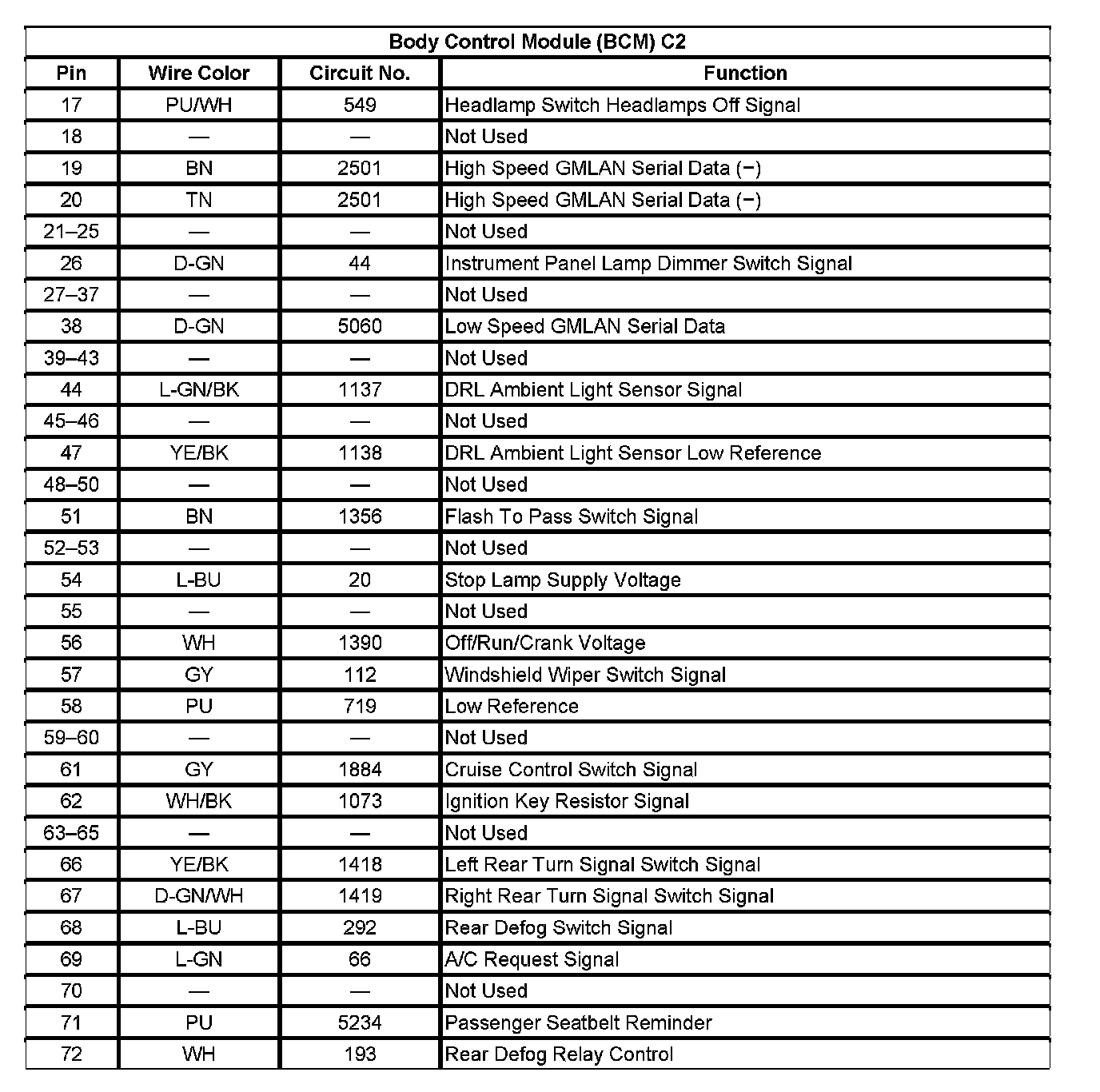

Body Control Module (BCM) C2 (Pin 17 To 72):

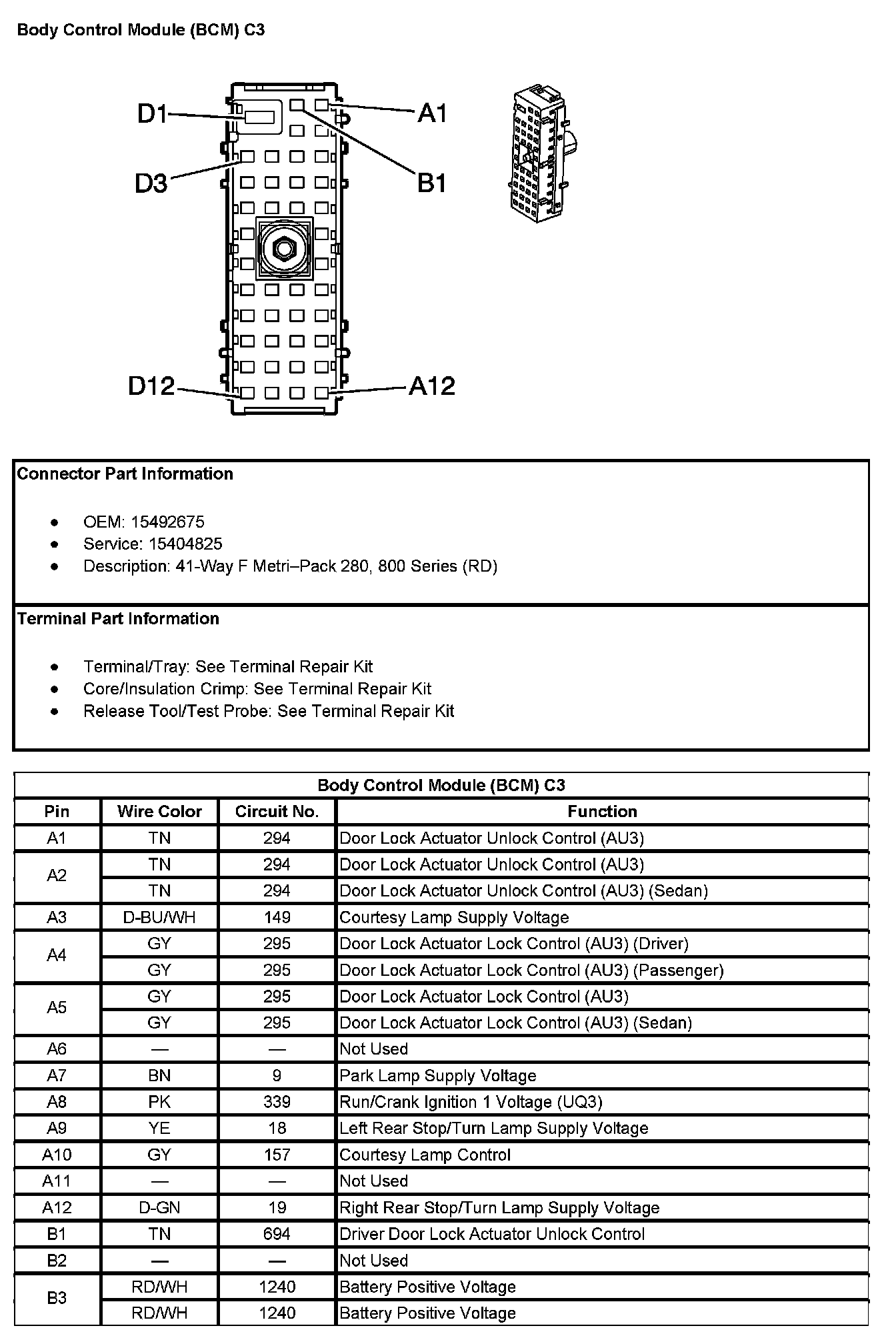

Body Control Module (BCM) C3 (Pin A1 To B3):

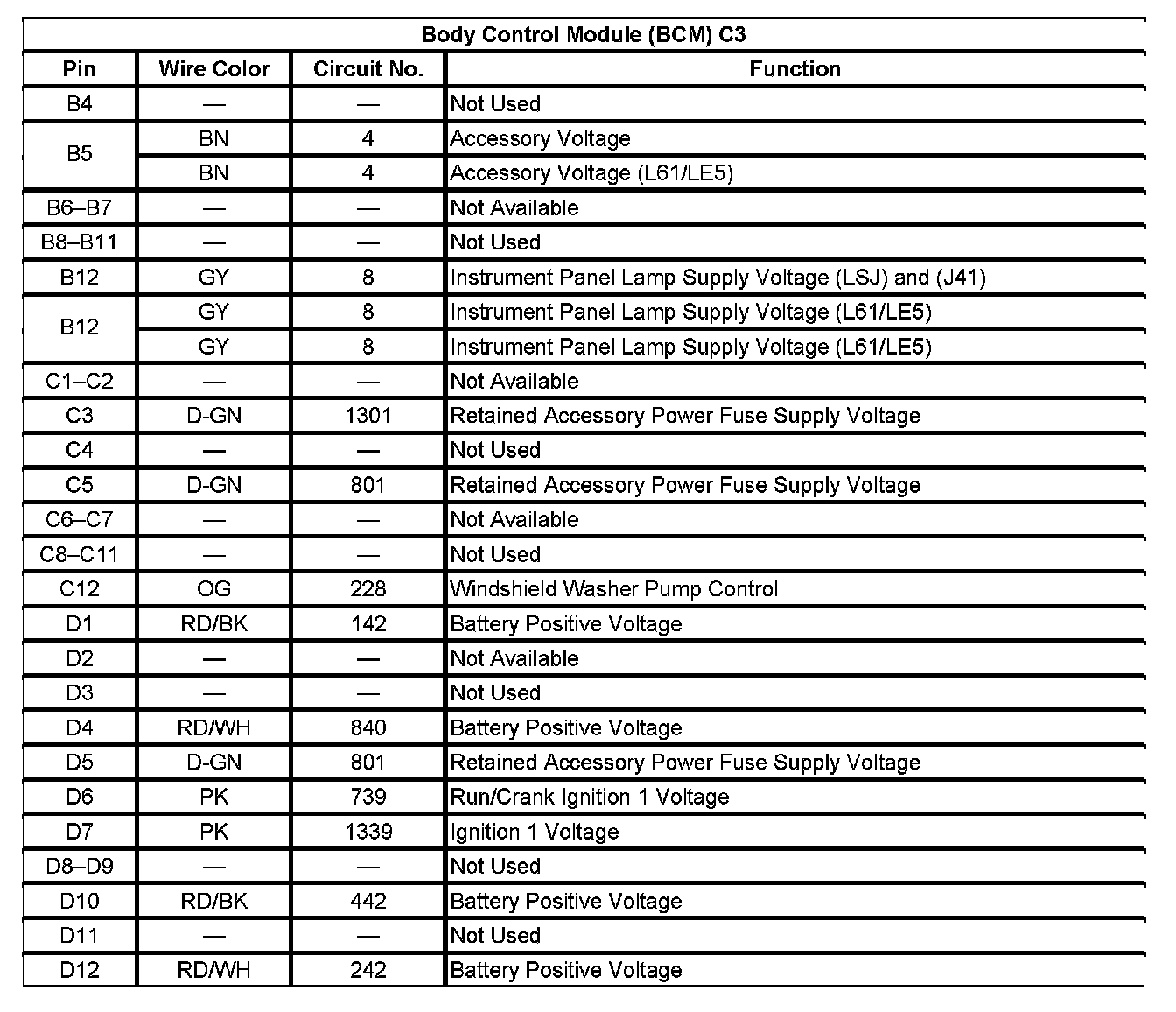

Body Control Module (BCM) C3 (Pin B4 To D12):

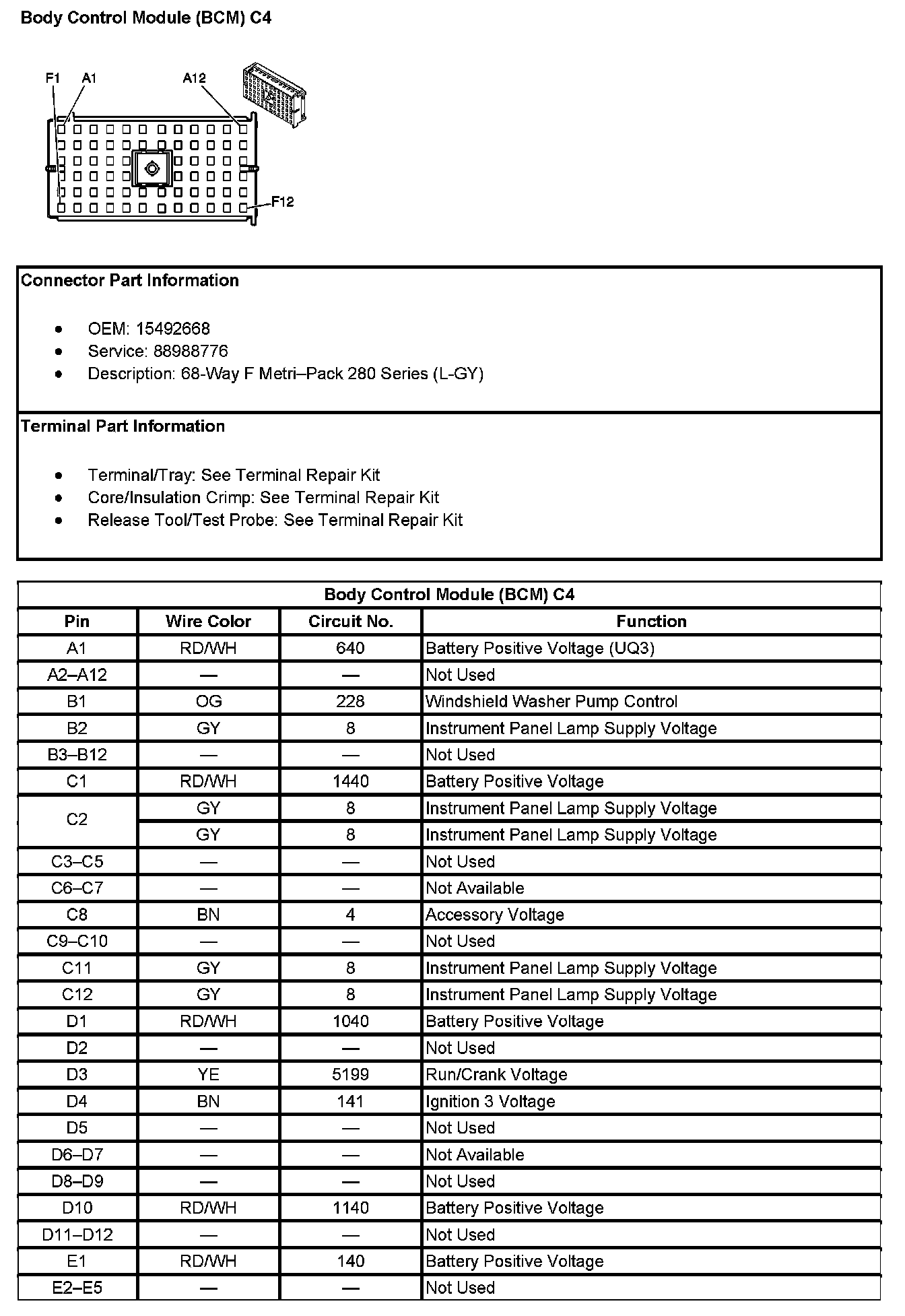

Body Control Module (BCM) C4 (Pin A1 To E5):

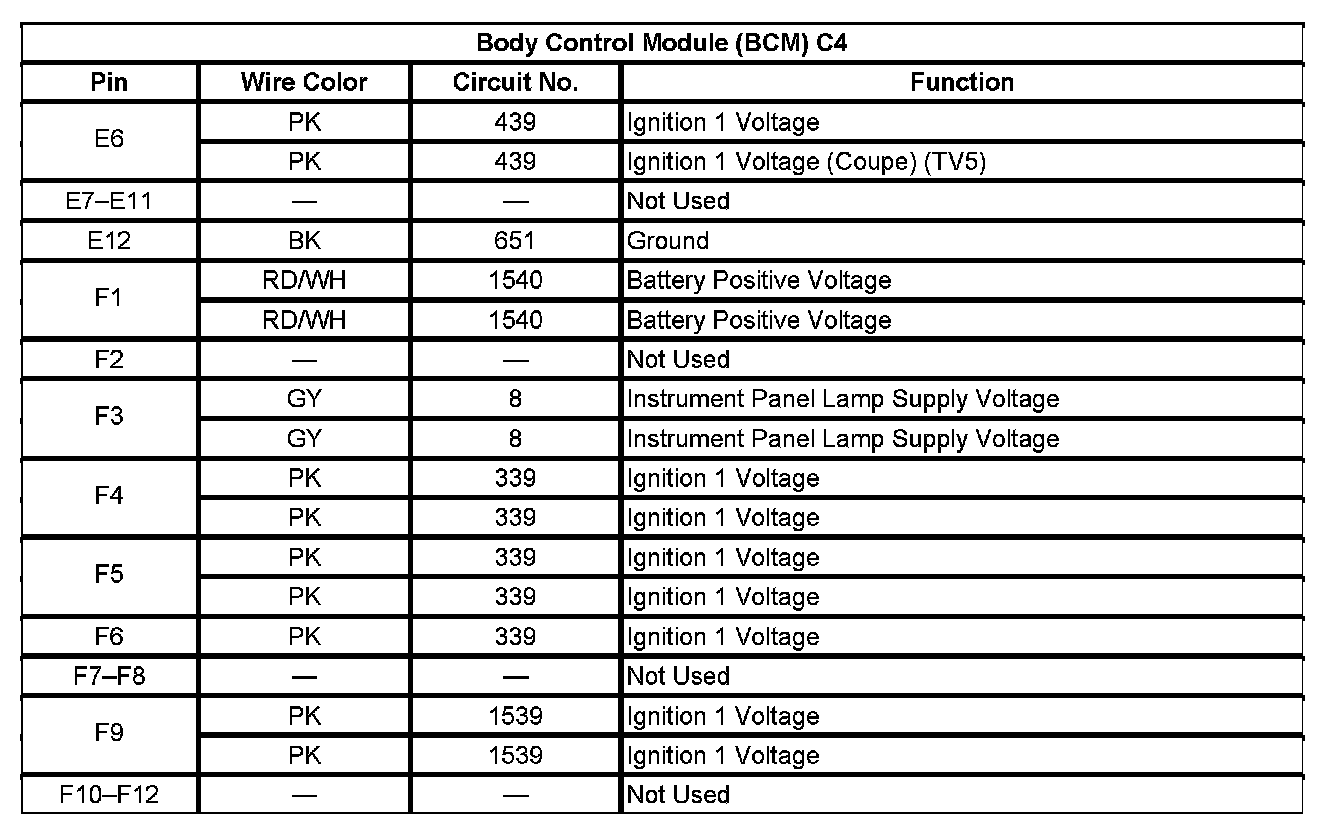

Body Control Module (BCM) C4 (Pin E6 To F12):
