Control Module HVAC

Need a step-by-step guide?

Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 2007 Chevrolet.

AI Repair Guides

HVAC Connector End Views

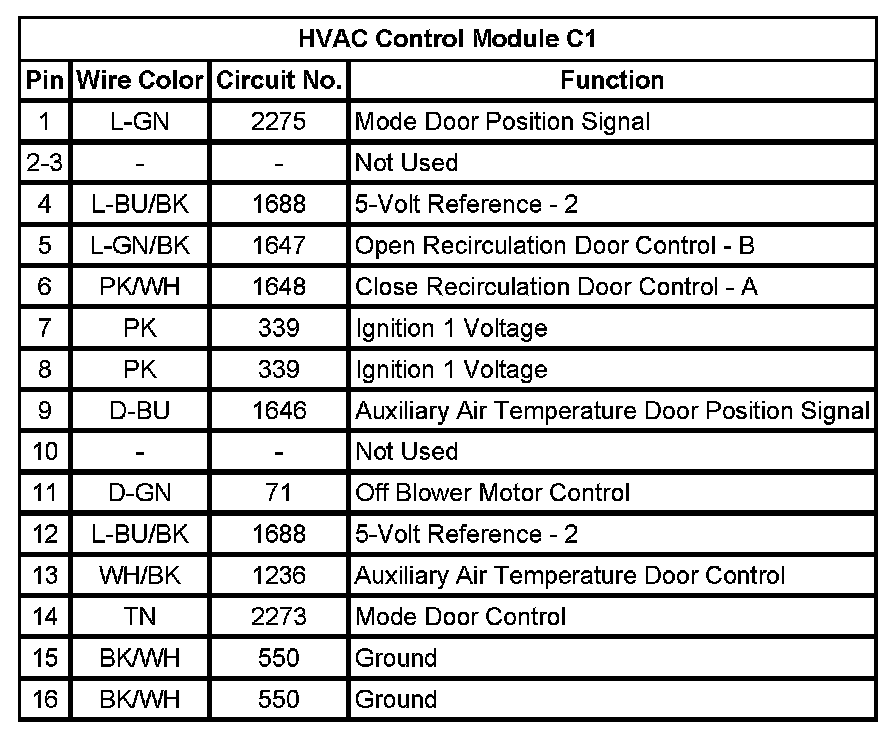

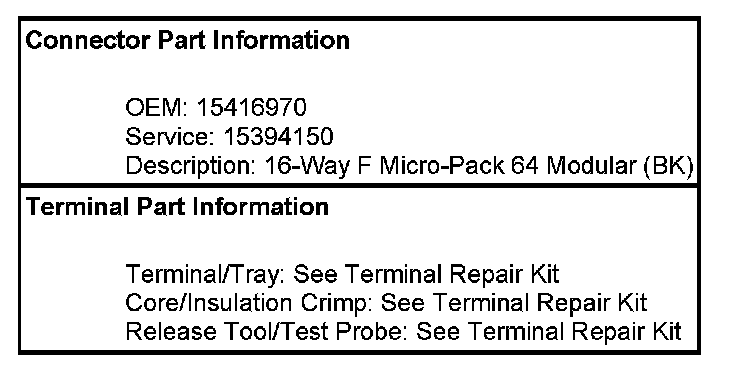

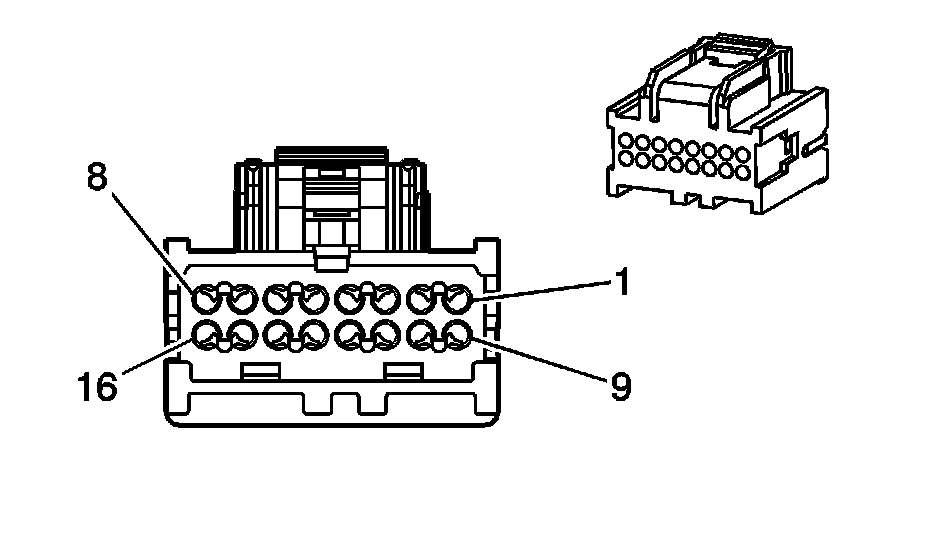

HVAC Control Module C1

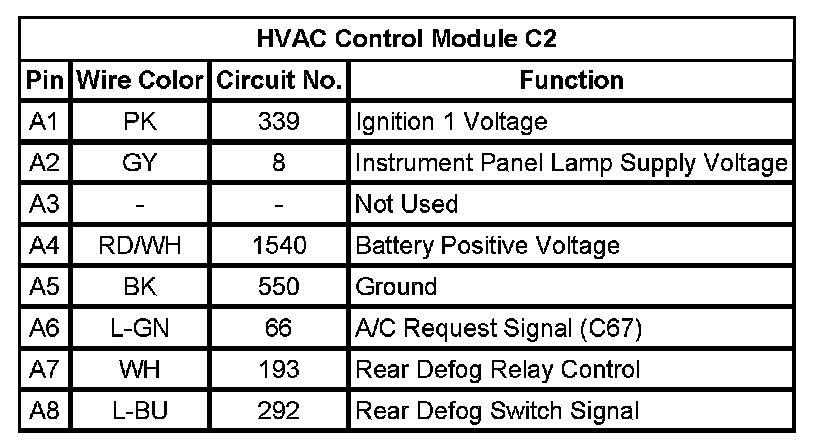

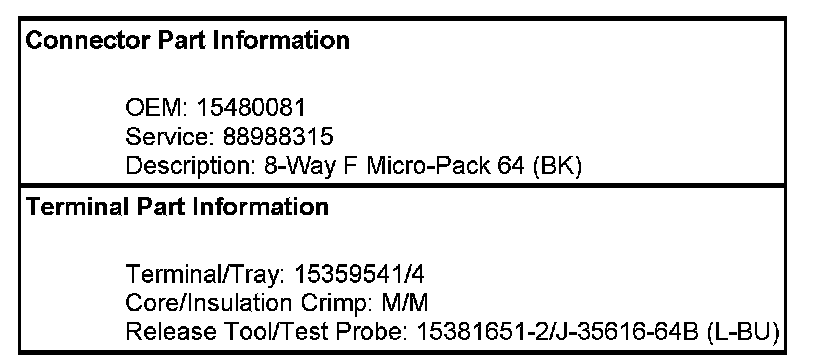

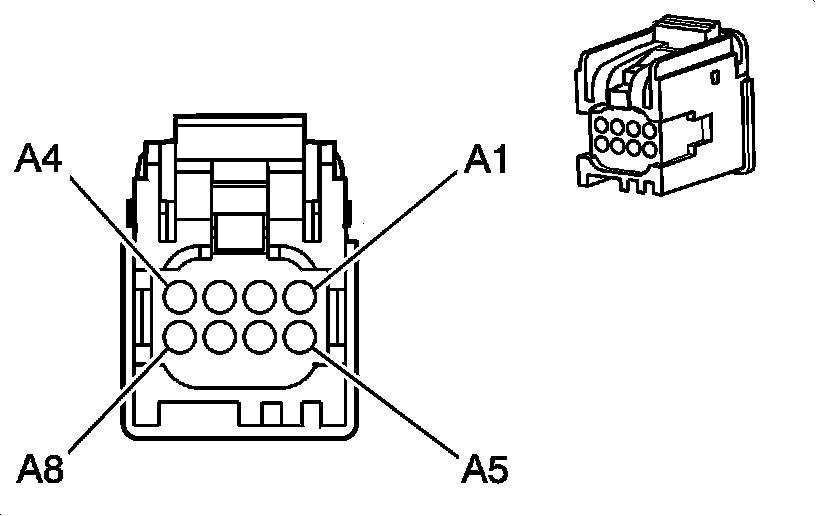

HVAC Control Module C2

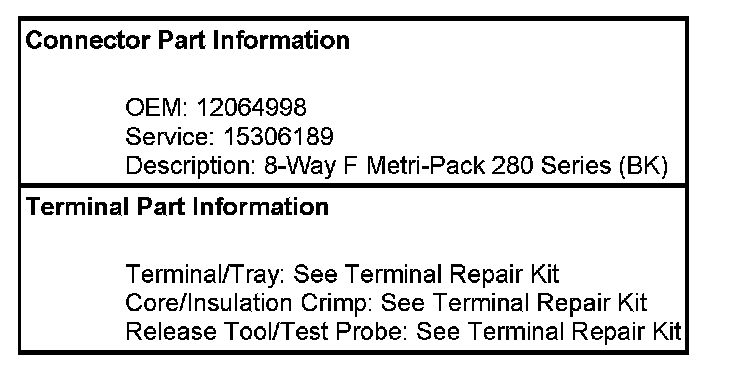

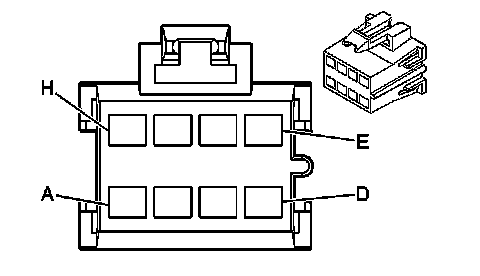

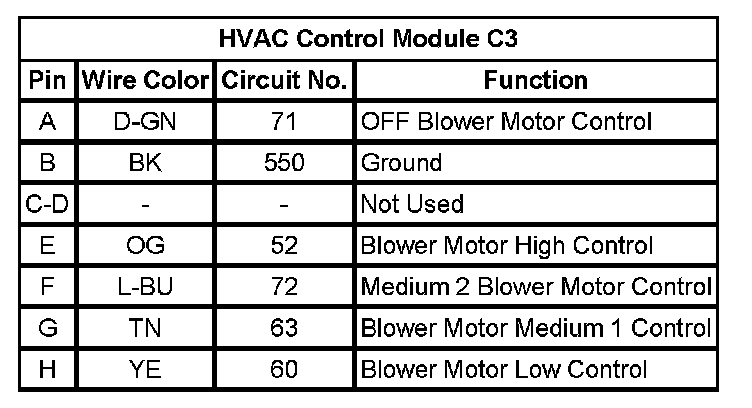

HVAC Control Module C3
