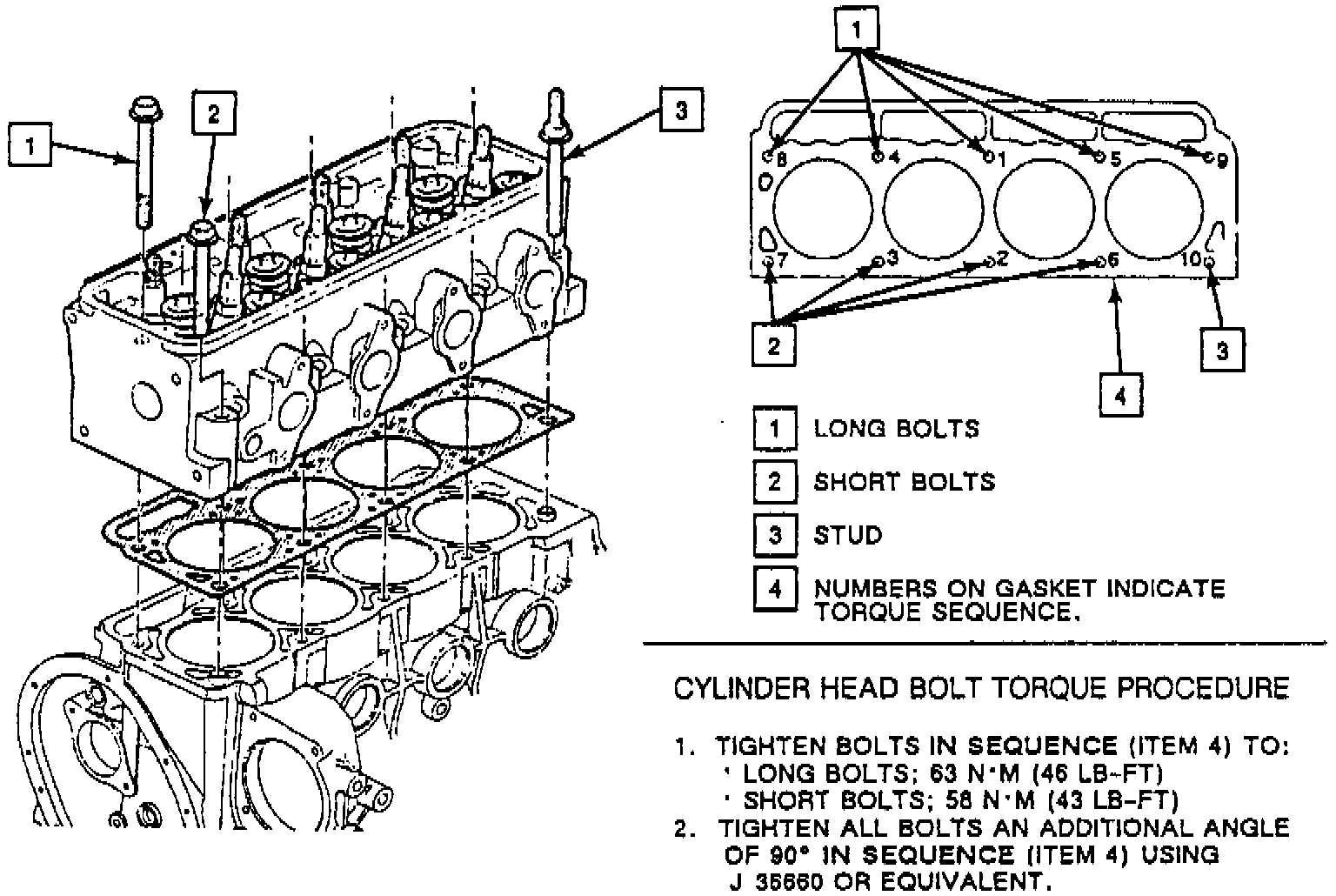

Fig. 8 Cylinder Head Bolt Tightening Sequence:
In the sequence shown (refer to figure 8):
1. Torque long bolts to 63 Nm (46 lbs. ft.)
Torque short bolts to 58 Nm (43 lbs. ft.)
2. Tighten bolts an additional 90°
Torque Specifications
Need a step-by-step guide?
Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 1995 Chevrolet.
In the sequence shown (refer to figure 8):
1. Torque long bolts to 63 Nm (46 lbs. ft.)
Torque short bolts to 58 Nm (43 lbs. ft.)
2. Tighten bolts an additional 90°
