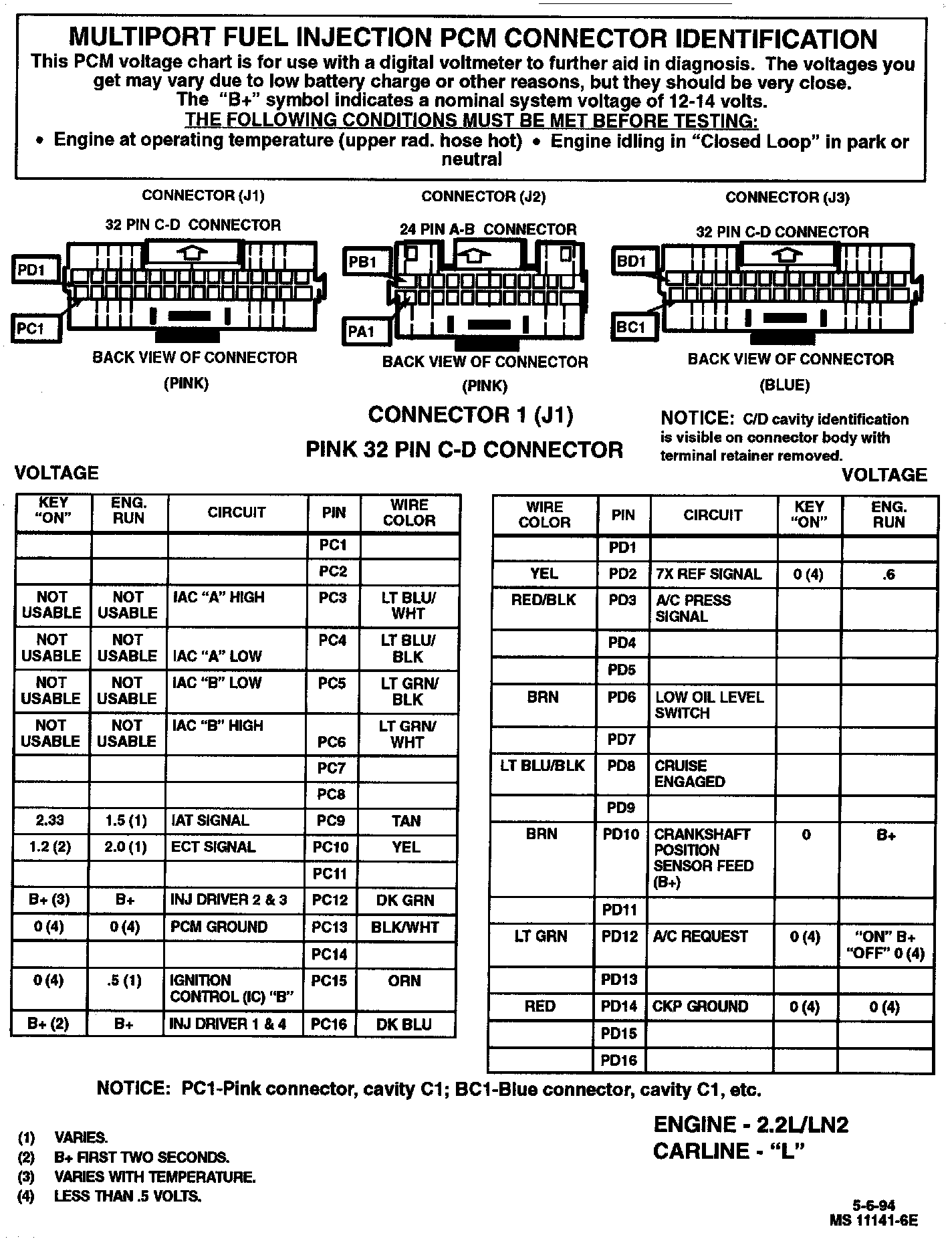

PCM Connector Terminal End View:
PINK 32 PIN C-D CONNECTOR (J1)

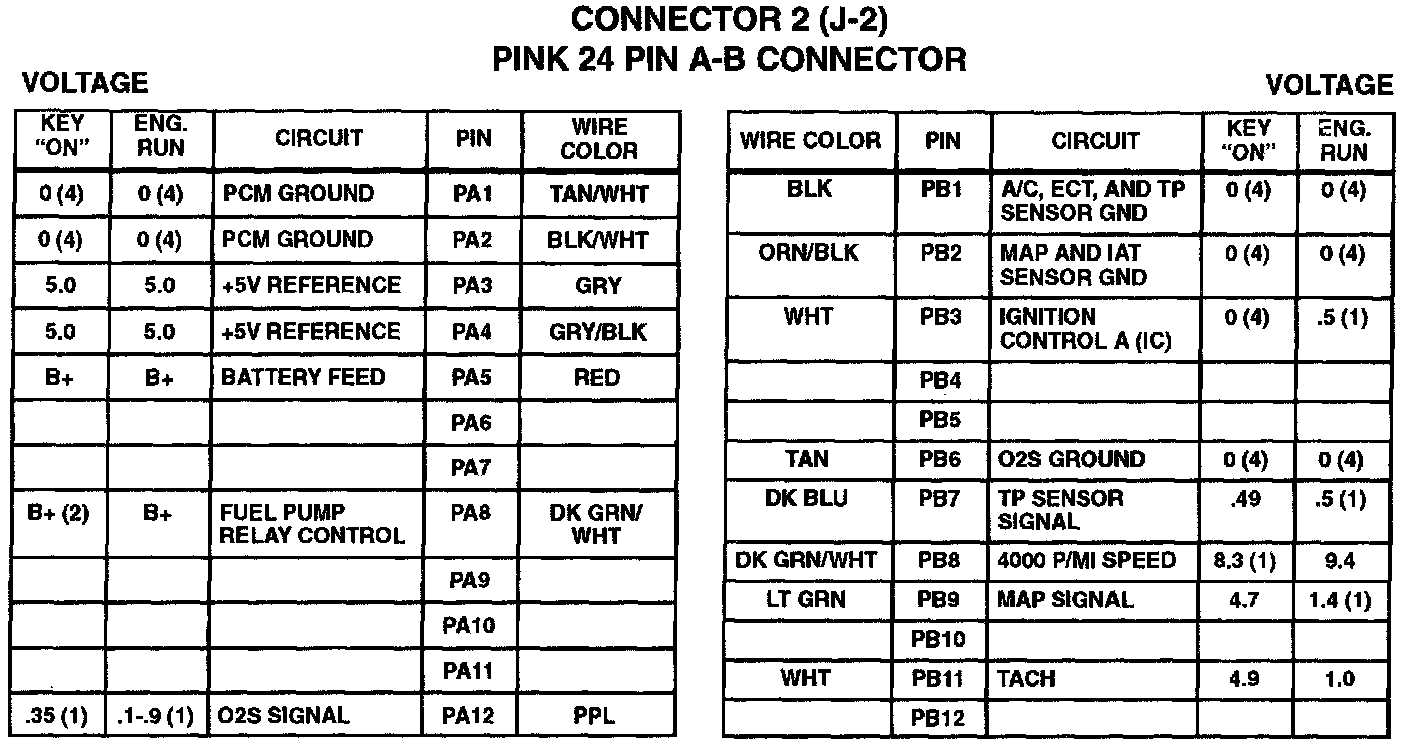

PCM Connector Terminal:
PINK 24 PIN A-B CONNECTOR (J2)

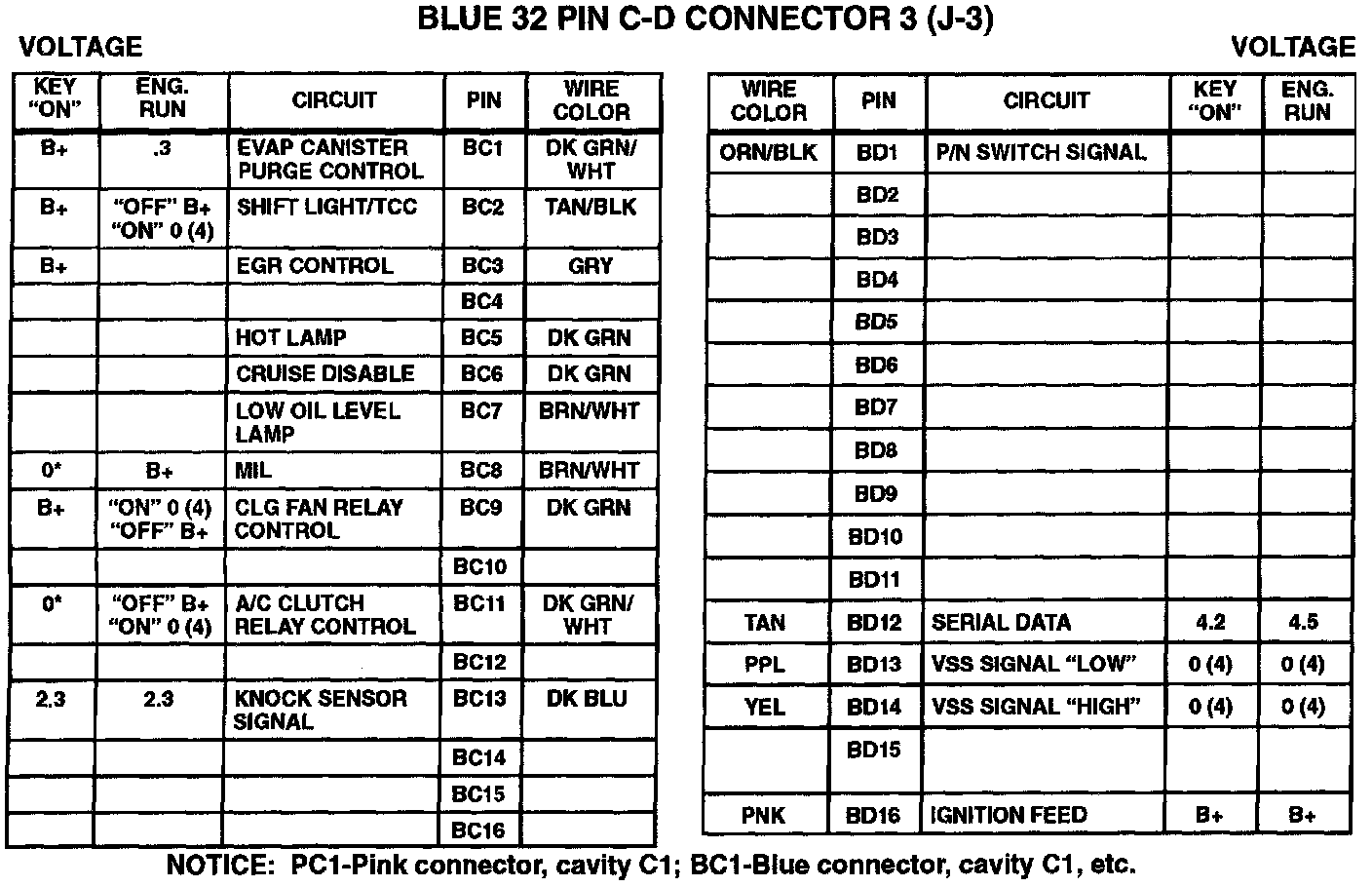

PCM Connector Terminal:
BLUE 32 PIN C-D CONNECTOR (J3)
Pinout Information
Need a step-by-step guide?
Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 1995 Chevrolet.
PINK 32 PIN C-D CONNECTOR (J1)
PINK 24 PIN A-B CONNECTOR (J2)
BLUE 32 PIN C-D CONNECTOR (J3)
