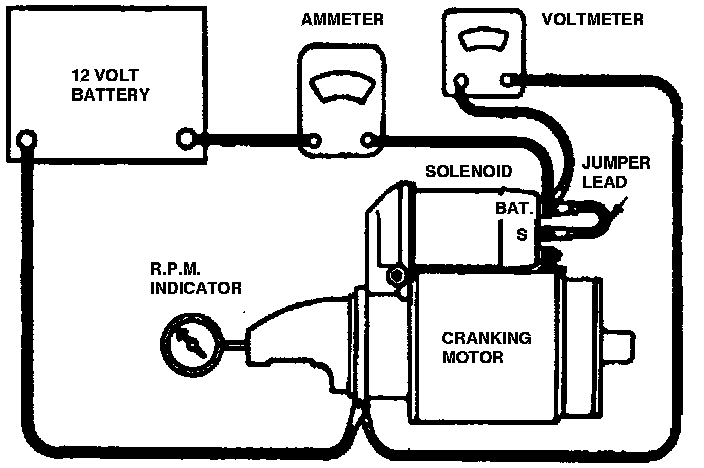

Fig. 4 Starter Free Speed Test Connections:
With the circuit connected as shown in Fig. 4 , use a tachometer to measure armature revolutions per minute. Refer to Starter Specifications for data. Failure of the motor to perform to specifications may be due to tight or dry bearings, or high resistance connections.
