Ignition Control Module: Service and Repair

Need a step-by-step guide?

Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 1994 Chevrolet.

AI Repair Guides

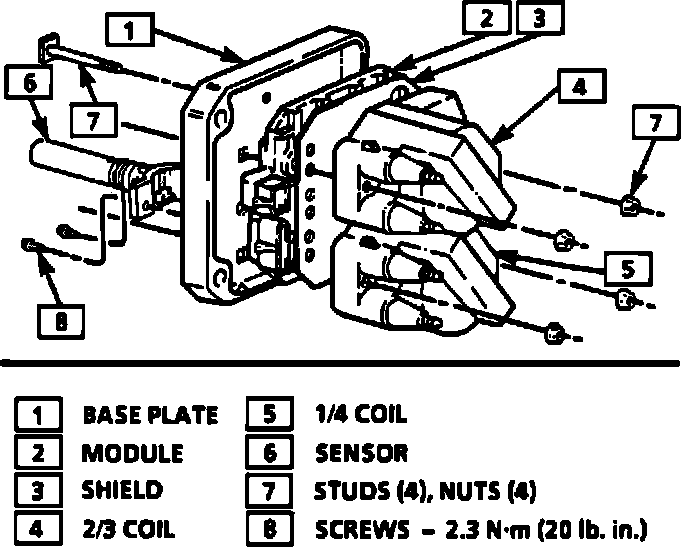

Coil Assembly:






Remove or Disconnect
1. Negative battery cable.
2. DIS assembly from engine.
3. Coils from assembly.
4. Module from assembly plate.

Install or Connect
1. Module to assembly plate. (Carefully engage sensor to module terminals.)
2. Coils.
3. DIS assembly to engine.
4. Negative battery cable.
