Transmission Parts Kit Specifications

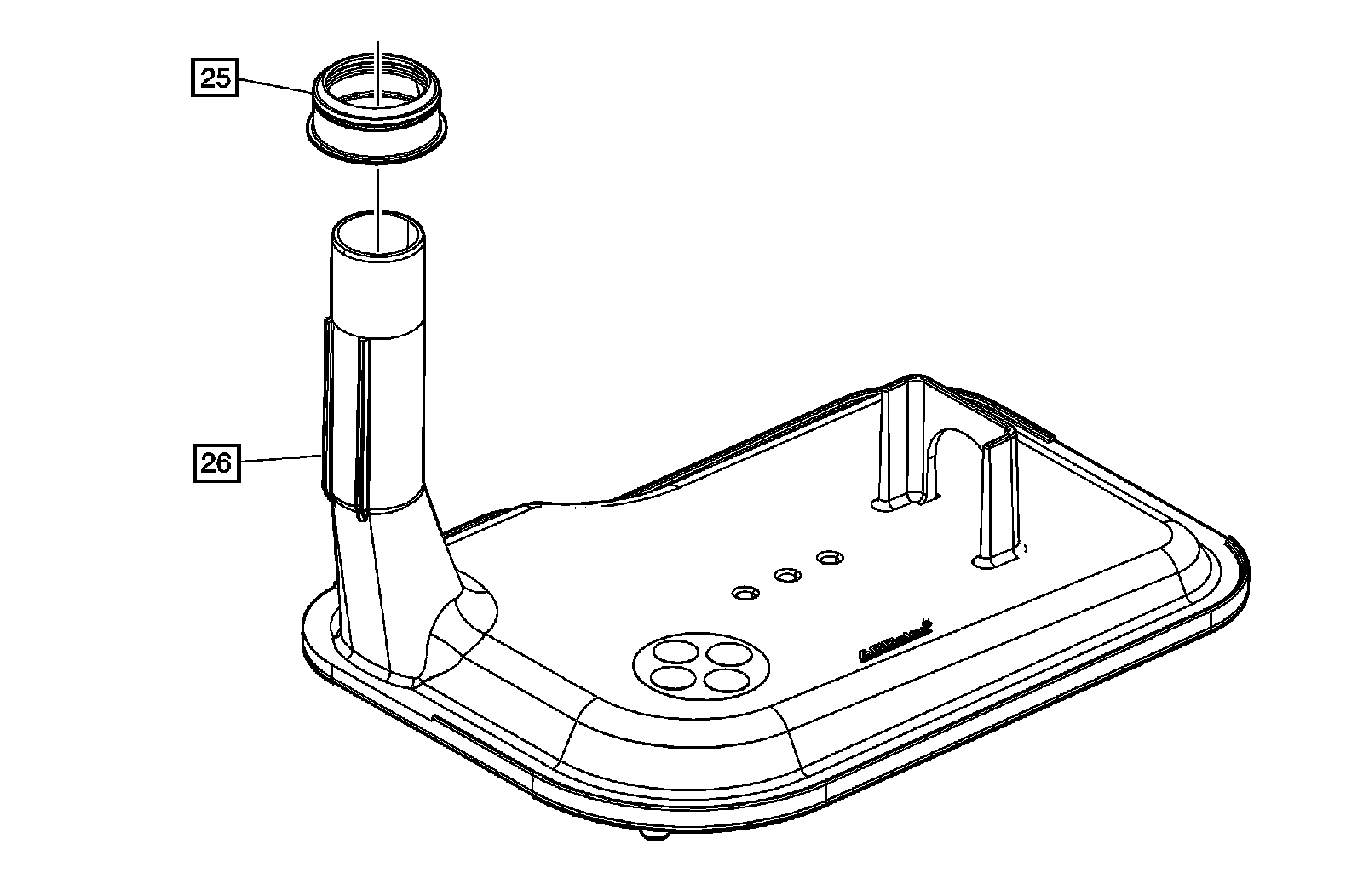

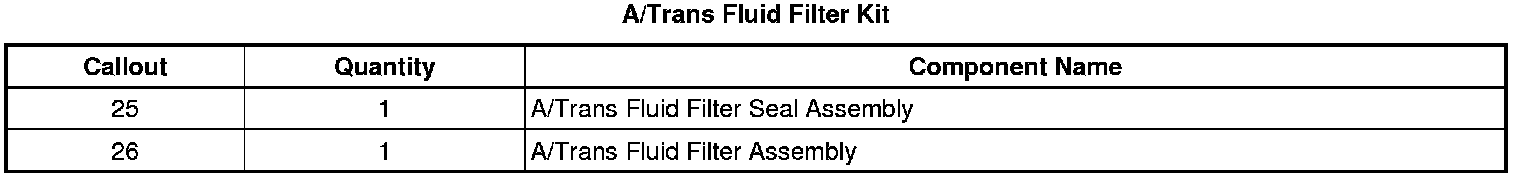

A/Trans Fluid Filter Kit

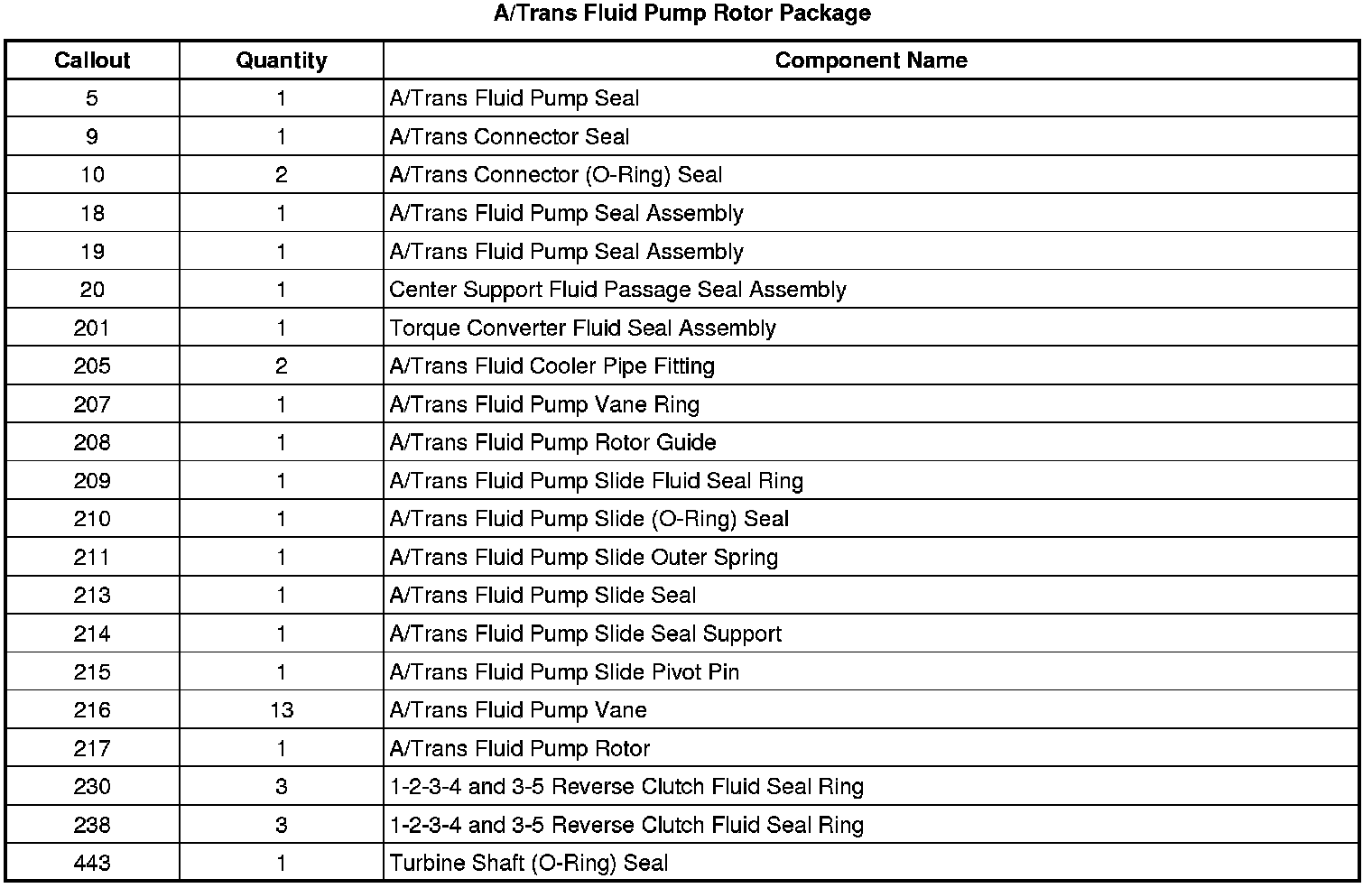

A/Trans Fluid Pump Rotor Package





Note: Callouts with boxes around them indicate part is included in the service kit. Callouts without boxes are shown for relationship purposes only.

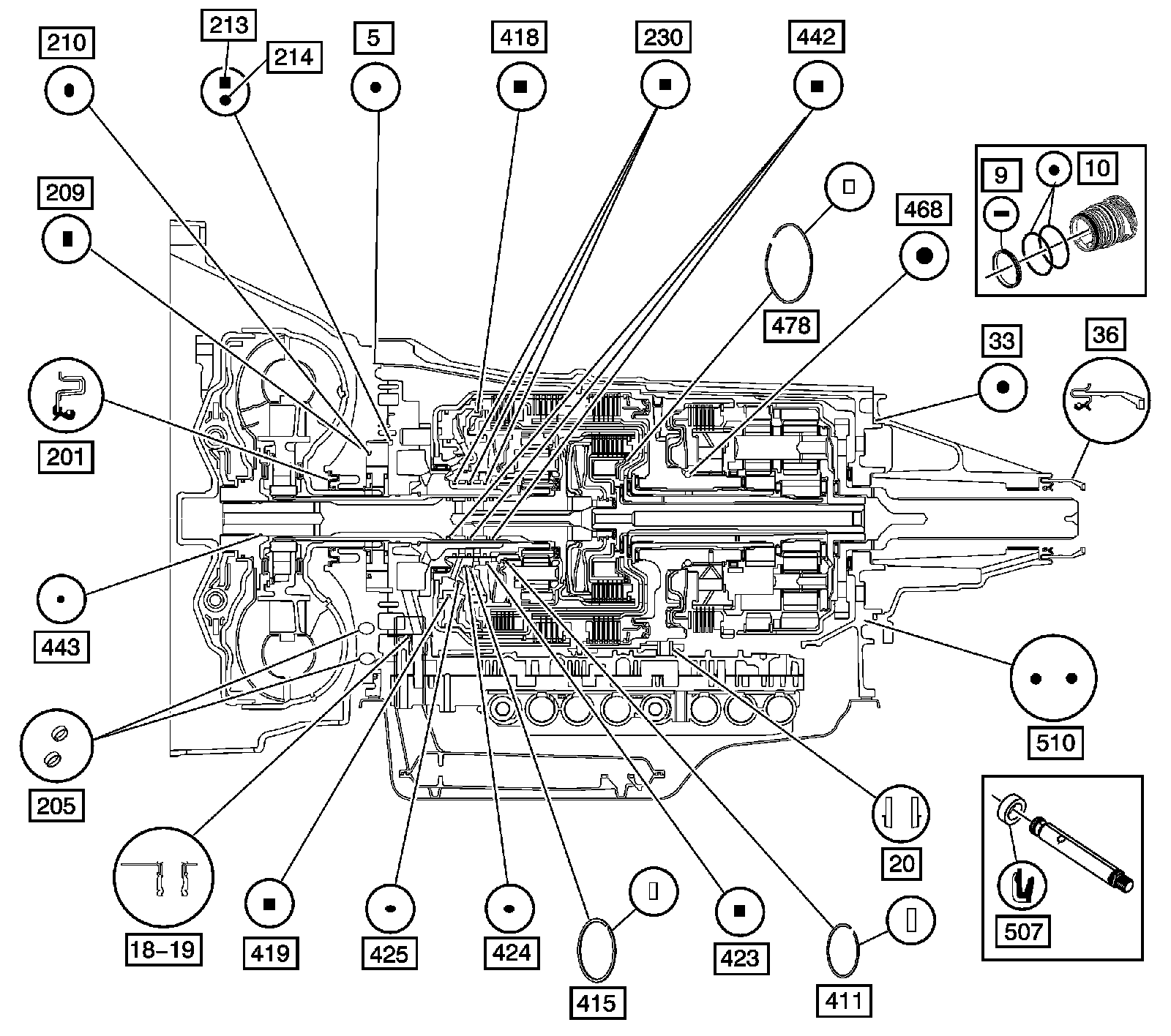

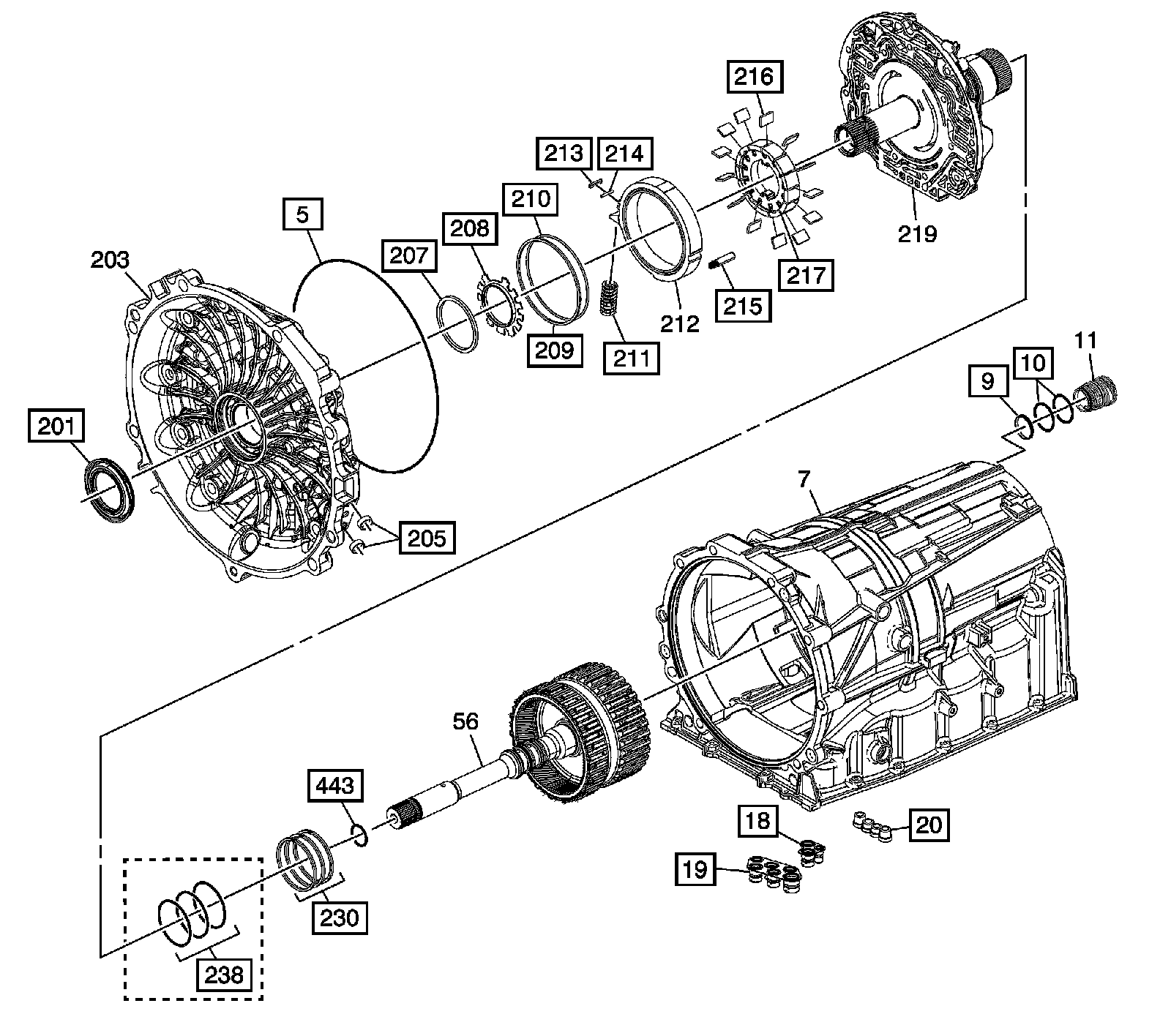

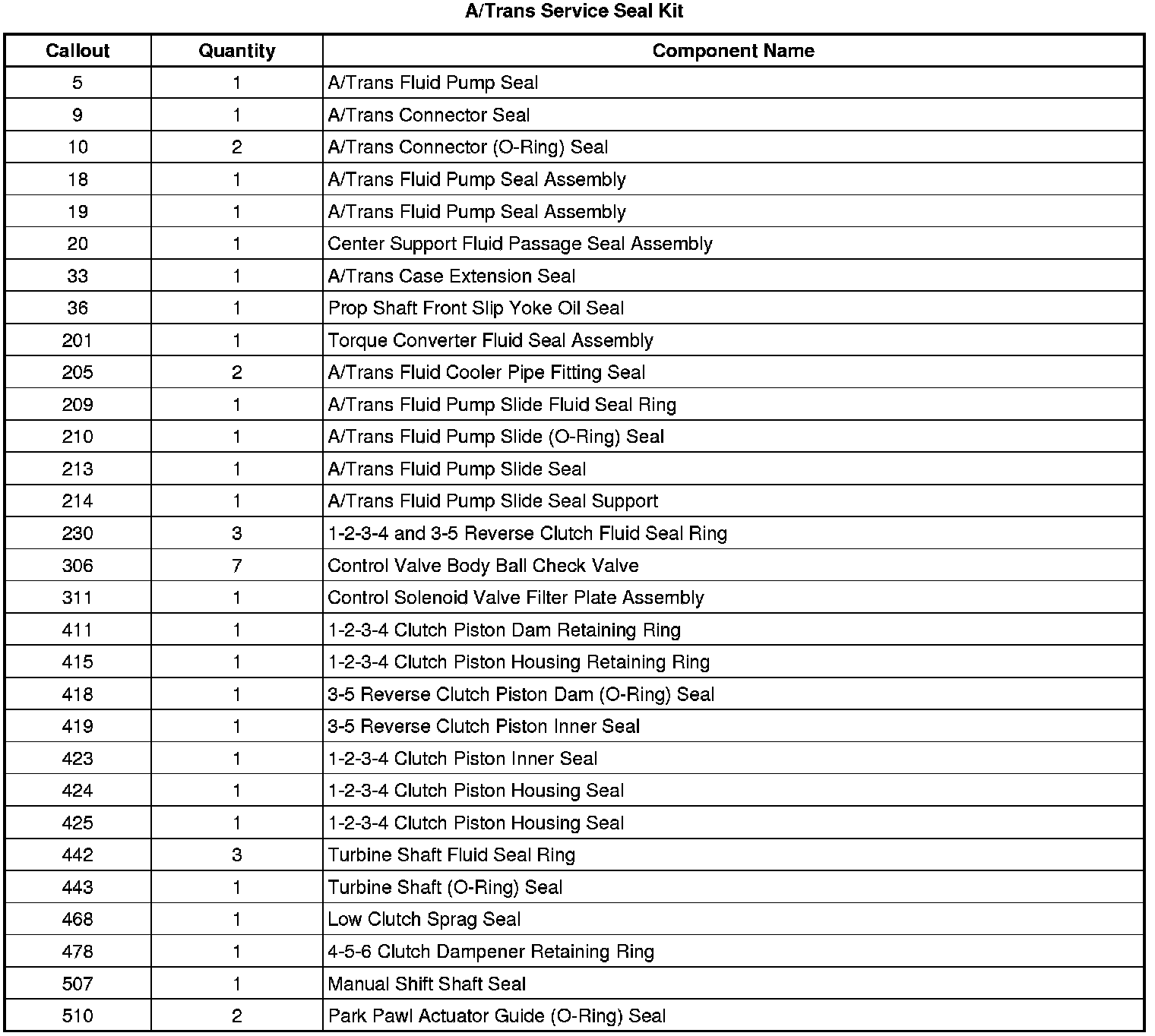

A/Trans Service Seal Kit

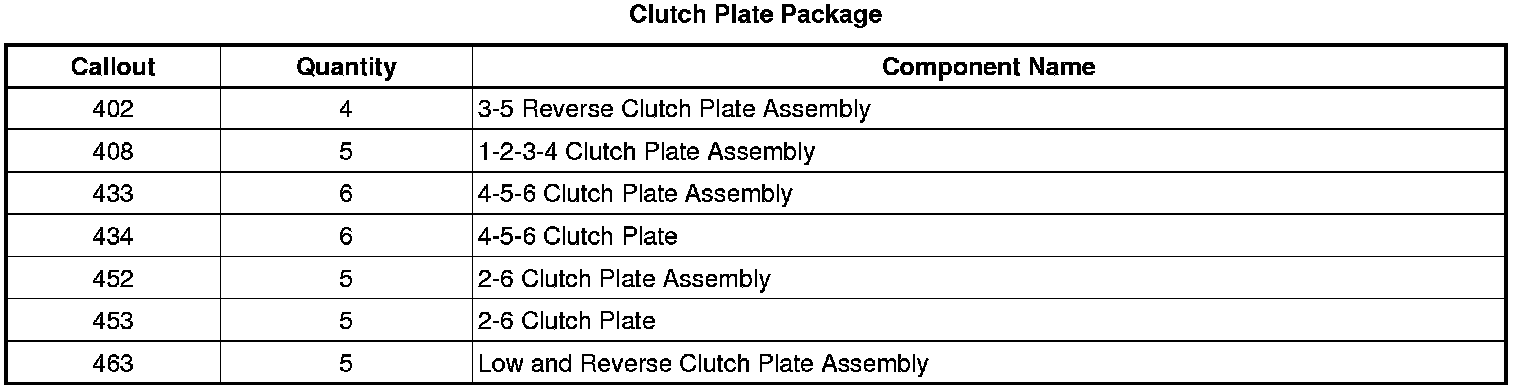

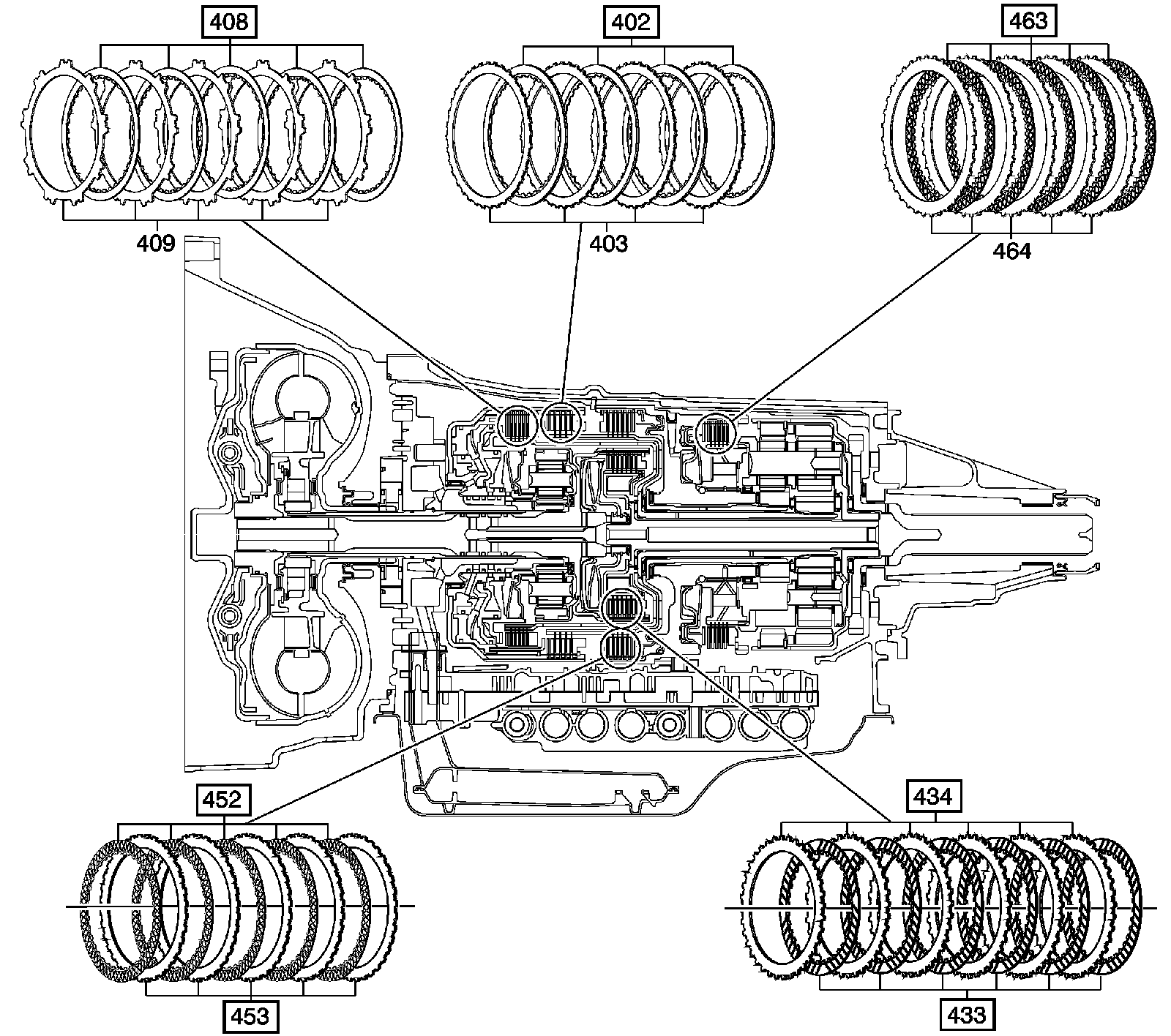

Clutch Plate Package





Note: Callouts with boxes around them indicate part is included in the service kit. Callouts without boxes are shown for relationship purposes only.

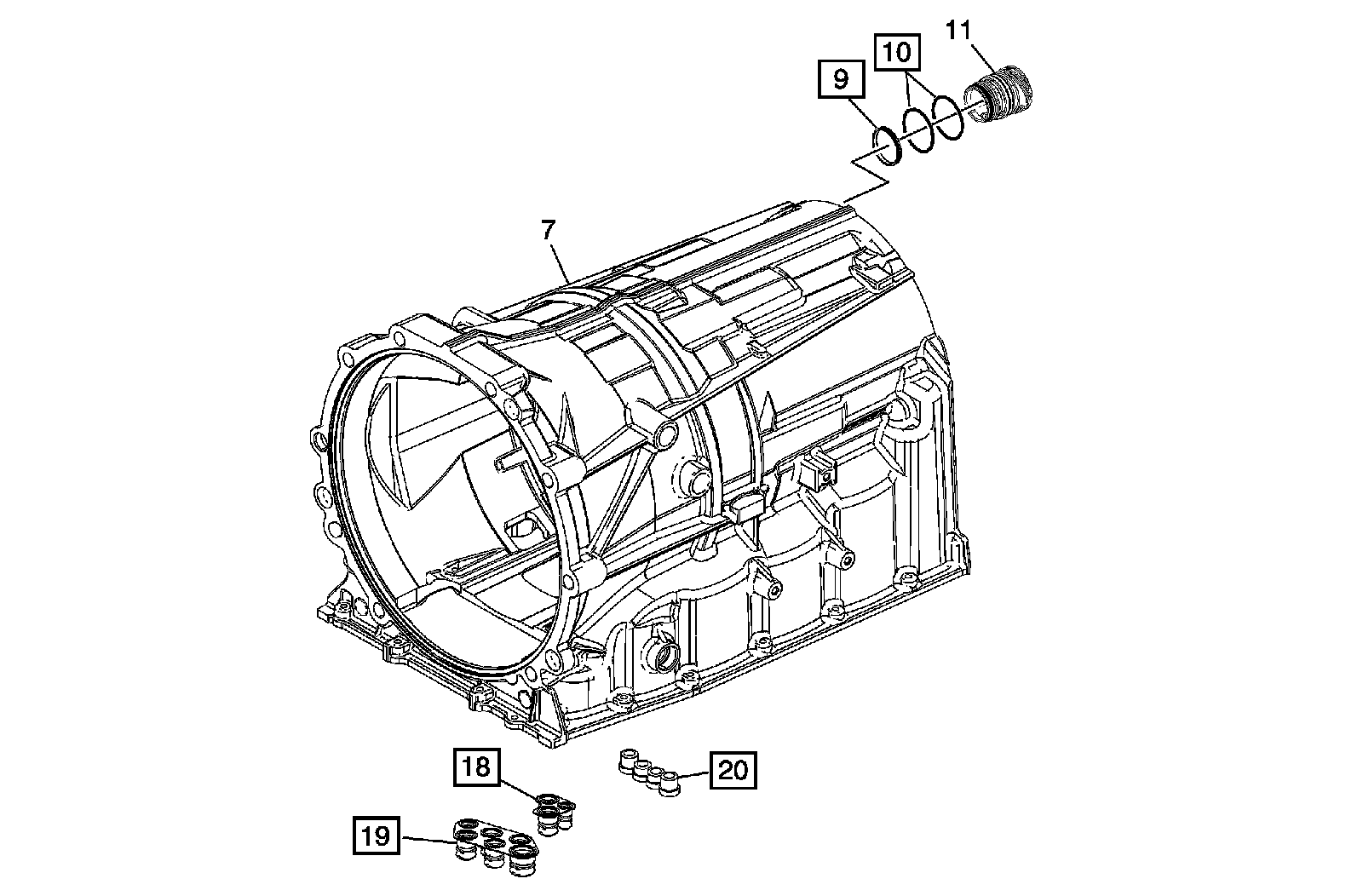

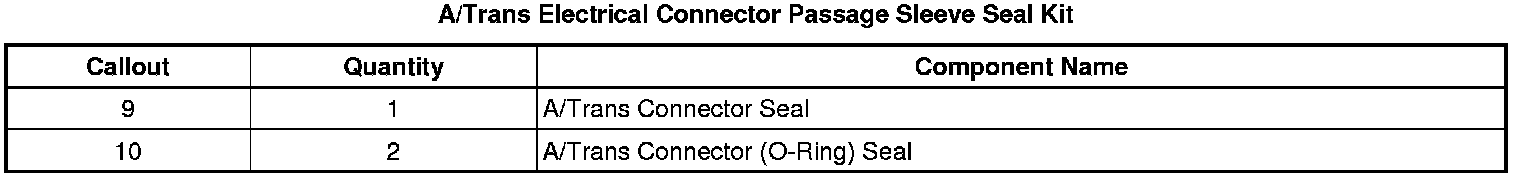

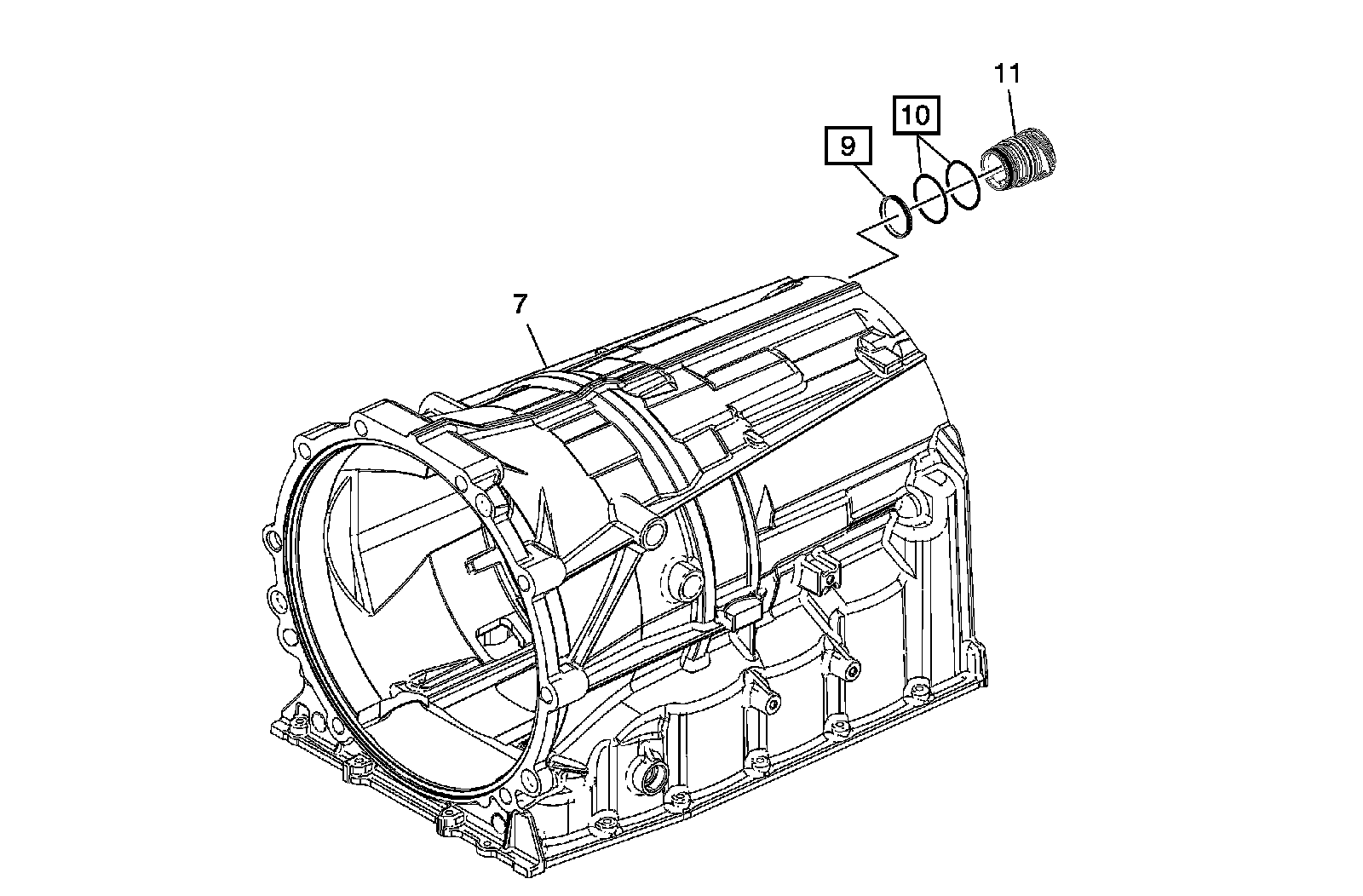

A/Trans Electrical Connector Passage Sleeve Seal Kit





Note: Callouts with boxes around them indicate part is included in the service kit. Callouts without boxes are shown for relationship purposes only.






A/Trans Control Solenoid Valve Assembly Seal Kit





Note: Callouts with boxes around them indicate part is included in the service kit. Callouts without boxes are shown for relationship purposes only.

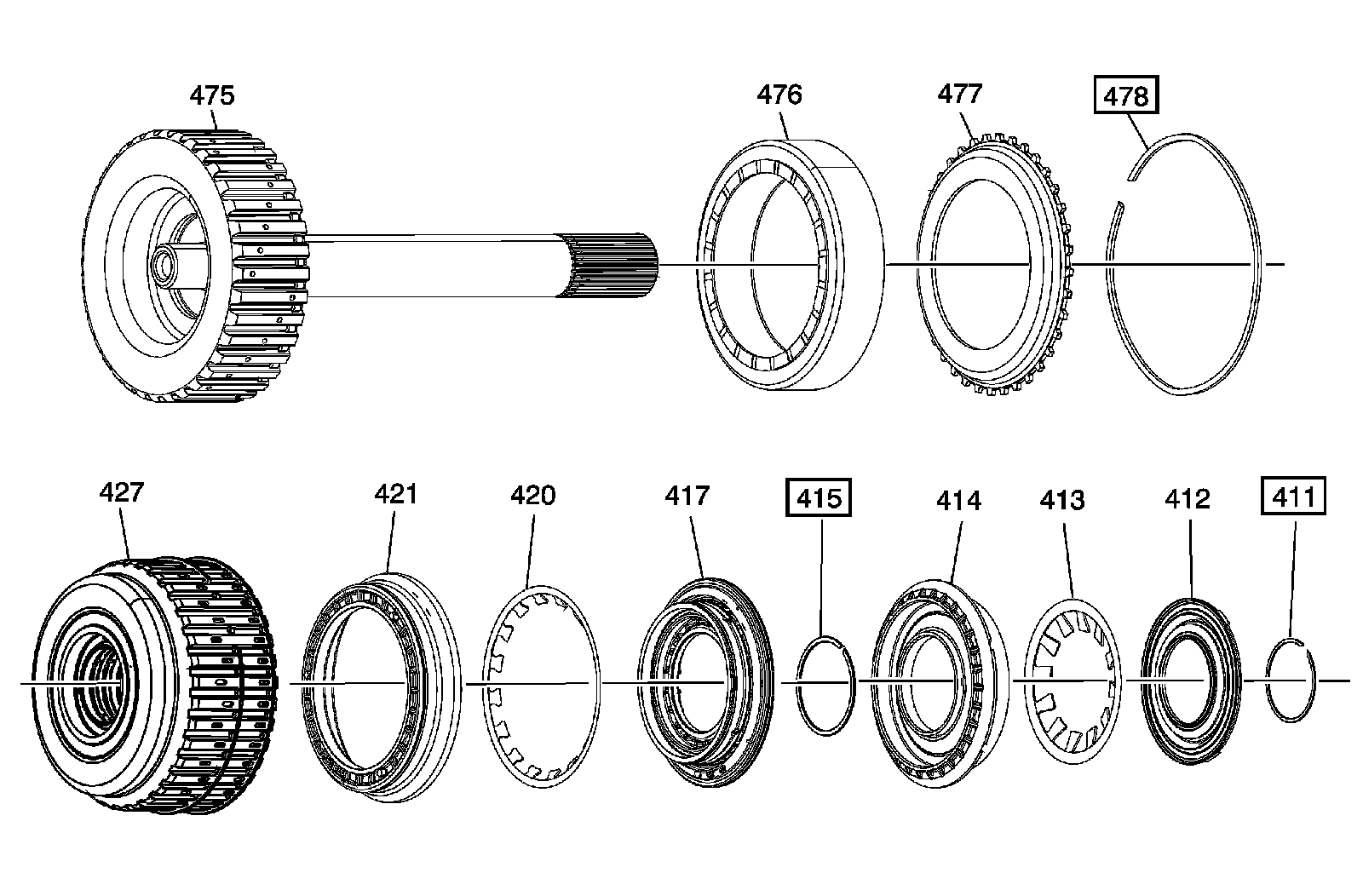

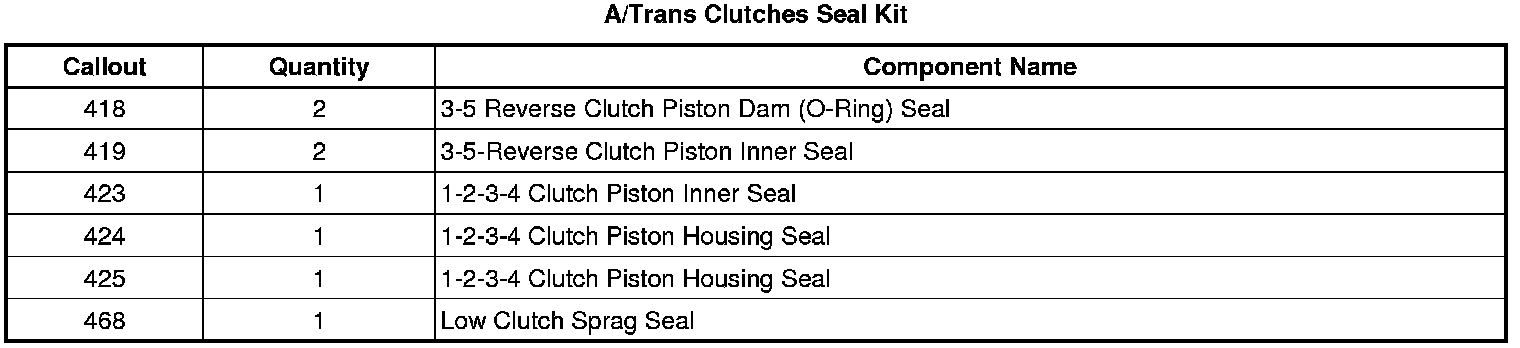

A/Trans Clutches Seal Kit





Note: Callouts with boxes around them indicate part is included in the service kit. Callouts without boxes are shown for relationship purposes only.

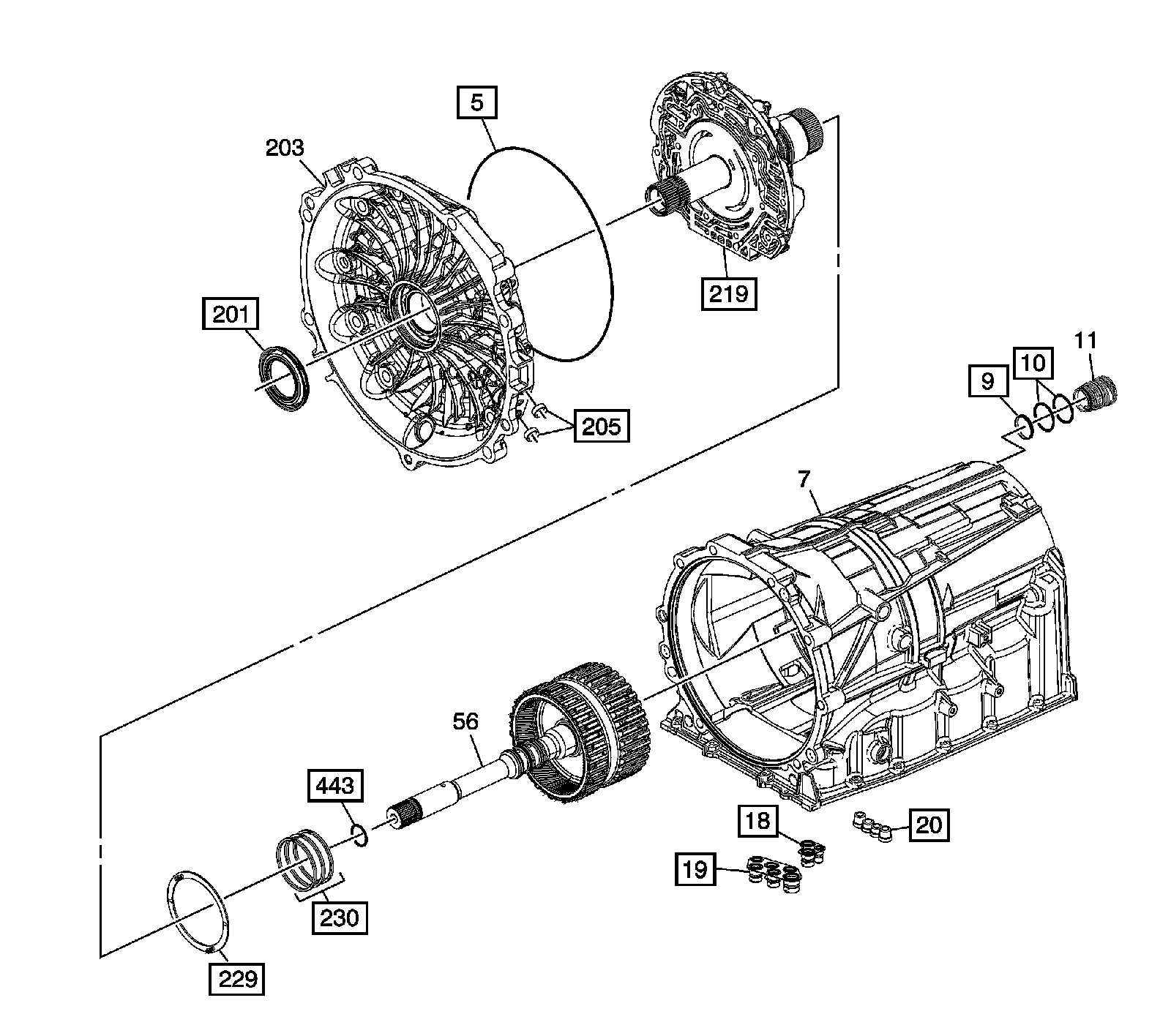

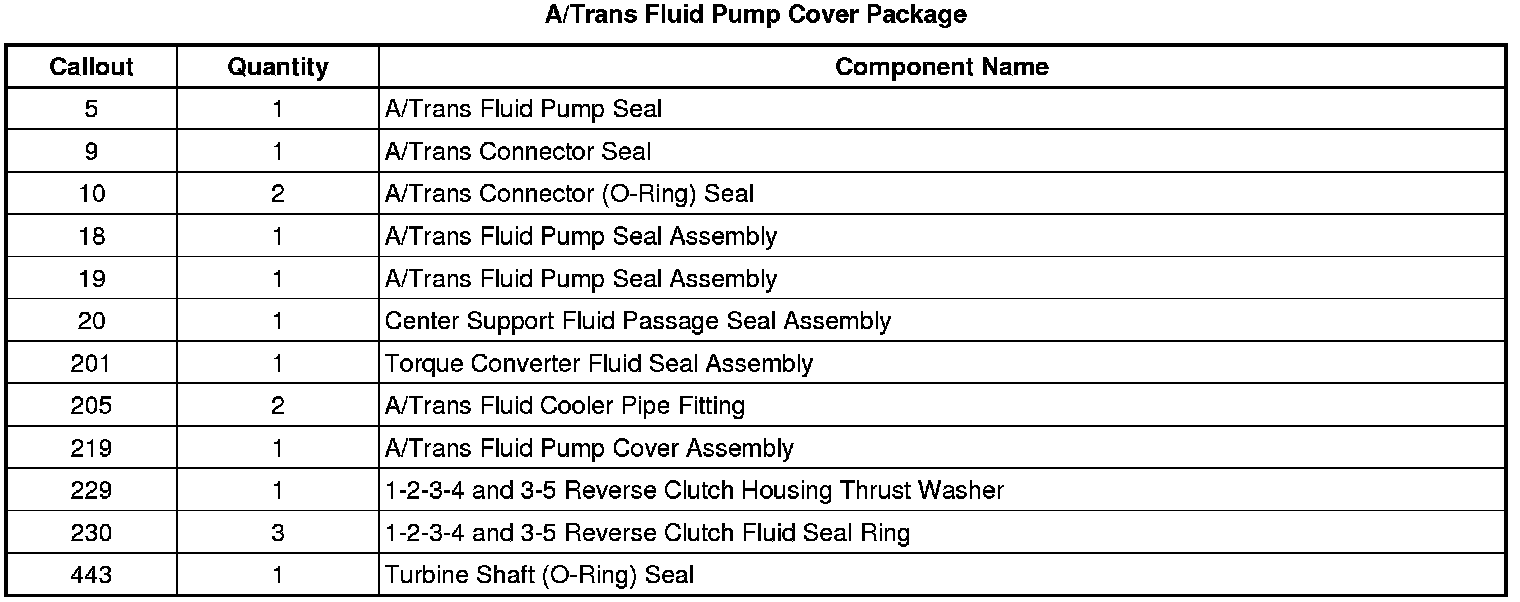

A/Trans Fluid Pump Cover Package





Note: Callouts with boxes around them indicate part is included in the service kit. Callouts without boxes are shown for relationship purposes only.

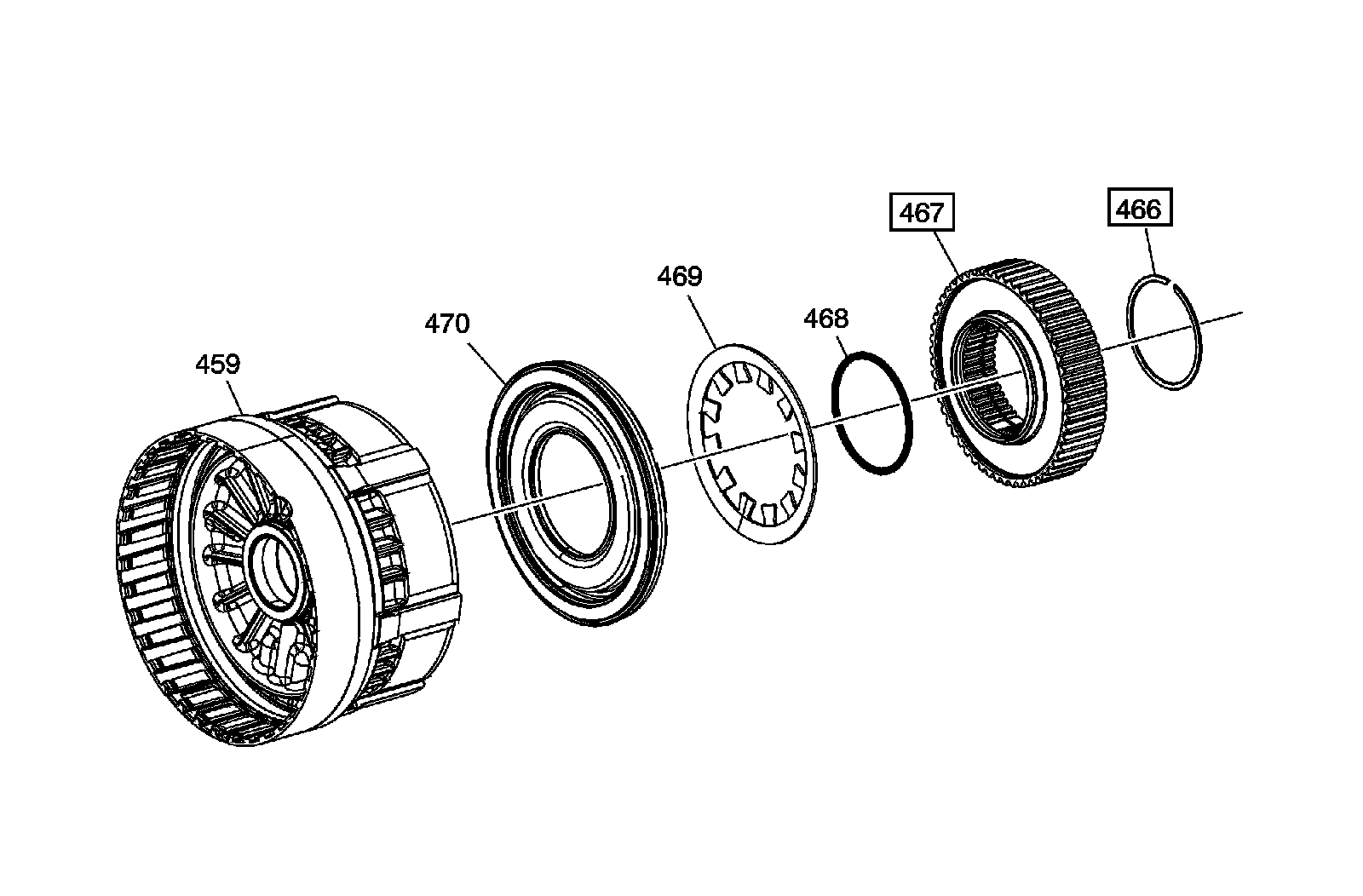

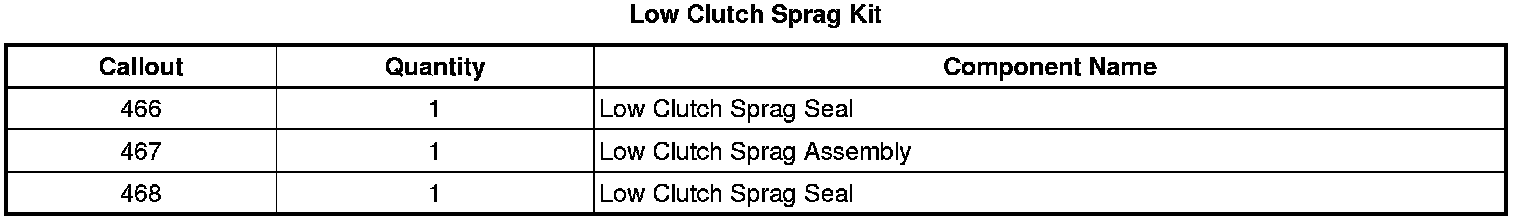

Low Clutch Sprag Kit





Note: Callouts with boxes around them indicate part is included in the service kit. Callouts without boxes are shown for relationship purposes only.

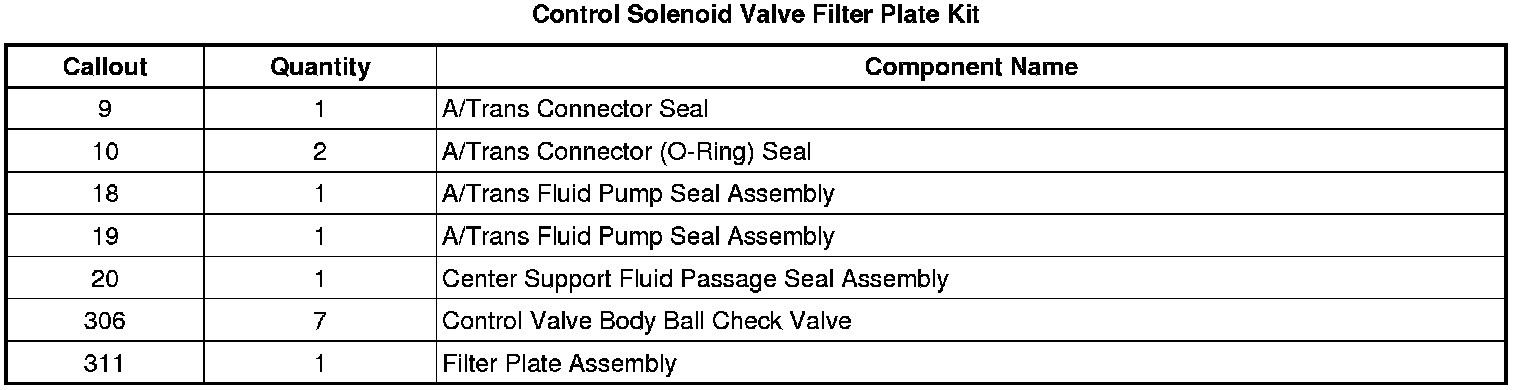

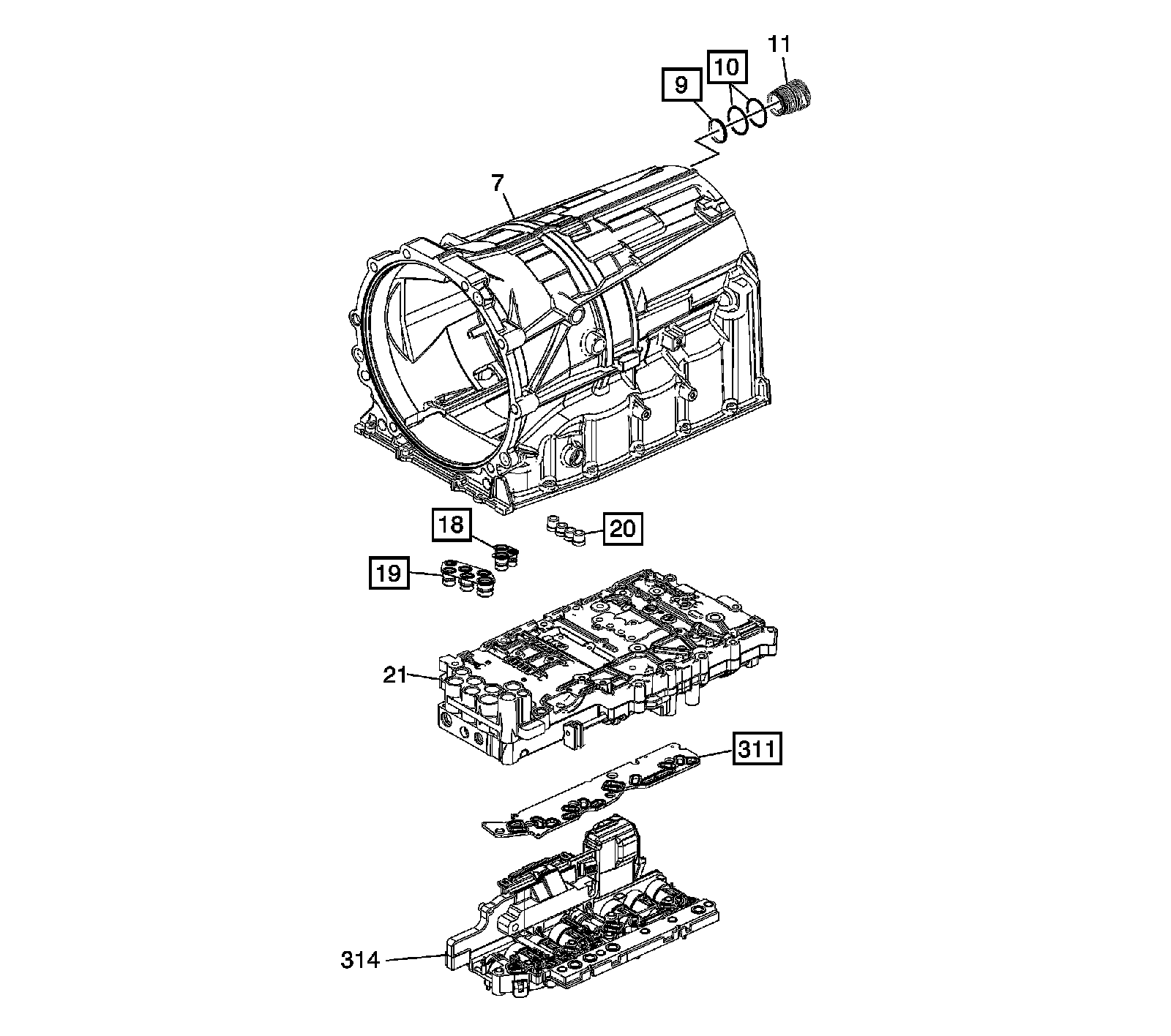

Control Solenoid Valve Filter Plate Kit





Note: Callouts with boxes around them indicate part is included in the service kit. Callouts without boxes are shown for relationship purposes only.

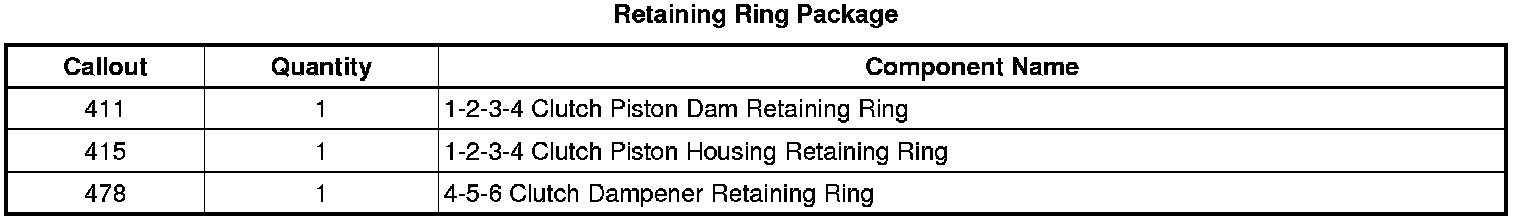

Retaining Ring Package





Note: Callouts with boxes around them indicate part is included in the service kit. Callouts without boxes are shown for relationship purposes only.

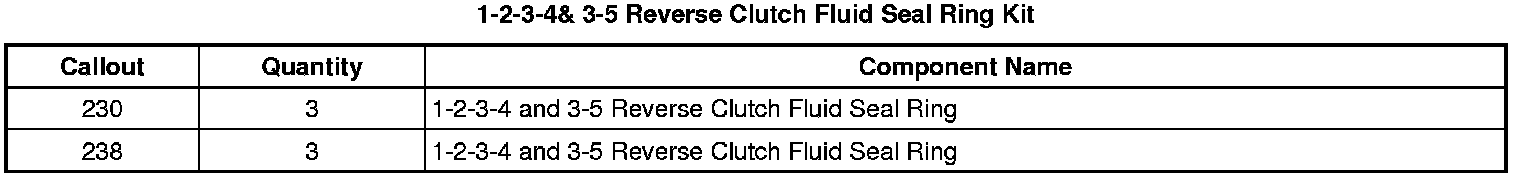

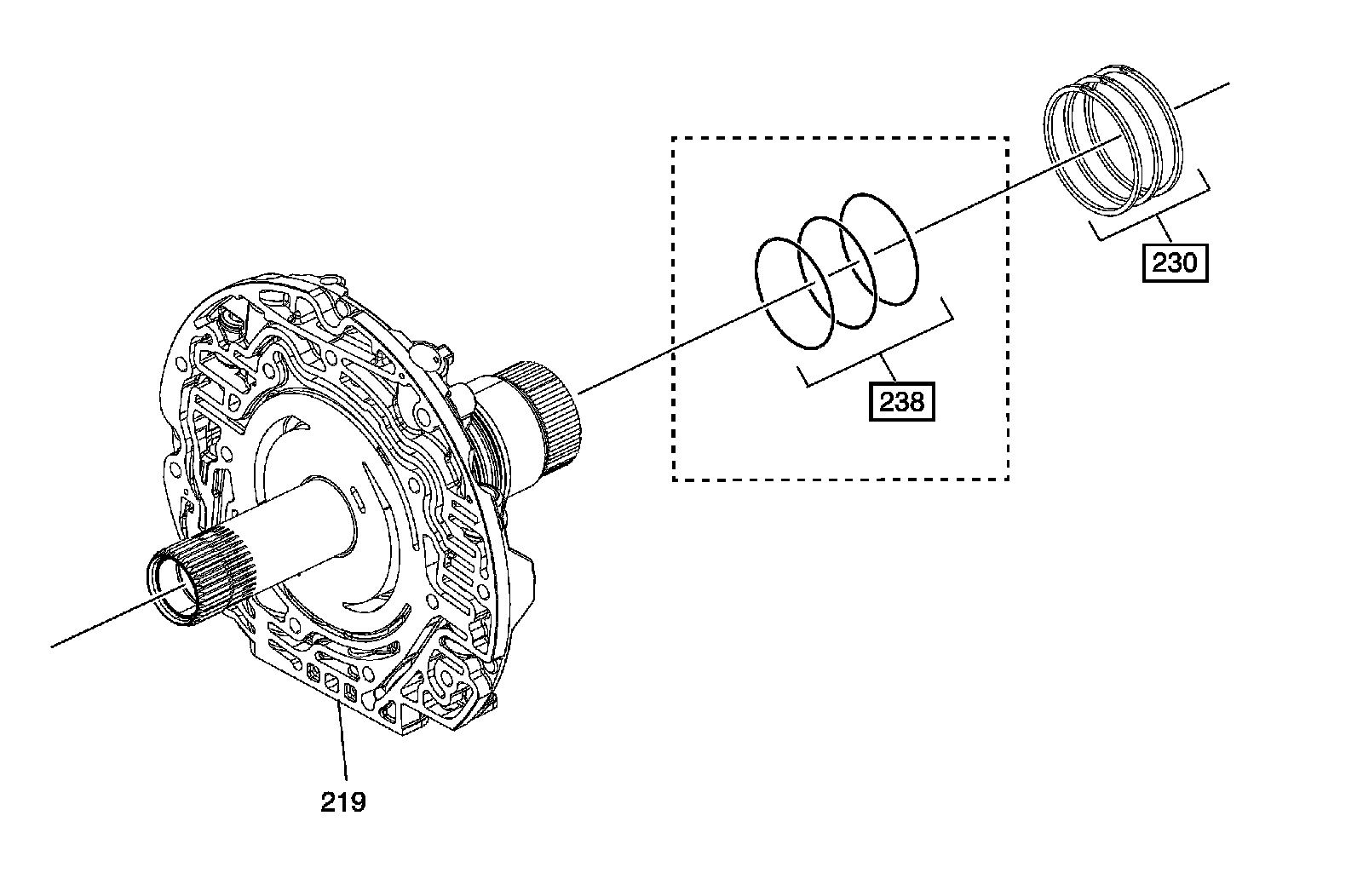

1-2-3-4& 3-5 Reverse Clutch Fluid Seal Ring Kit





Note: Callouts with boxes around them indicate part is included in the service kit. Callouts without boxes are shown for relationship purposes only.

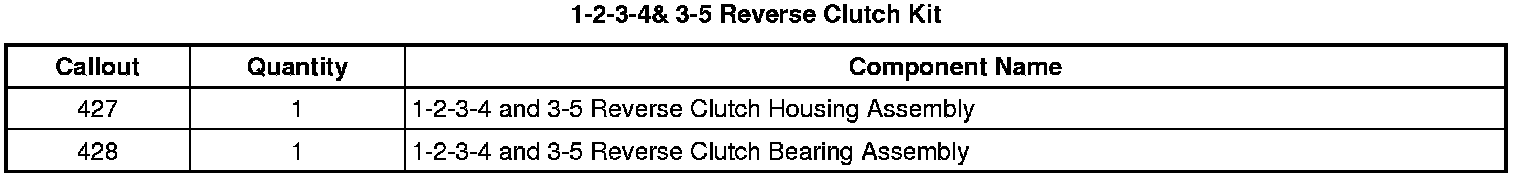

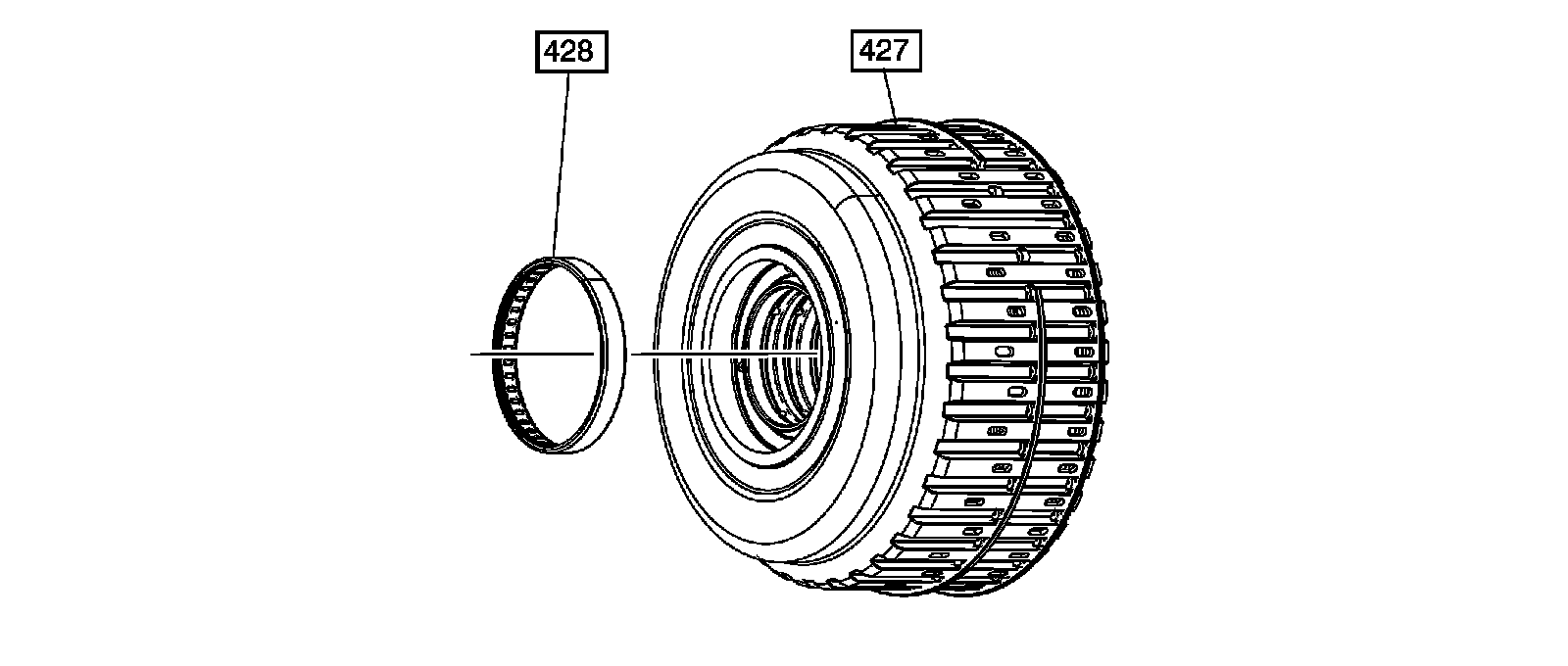

1-2-3-4& 3-5 Reverse Clutch Kit

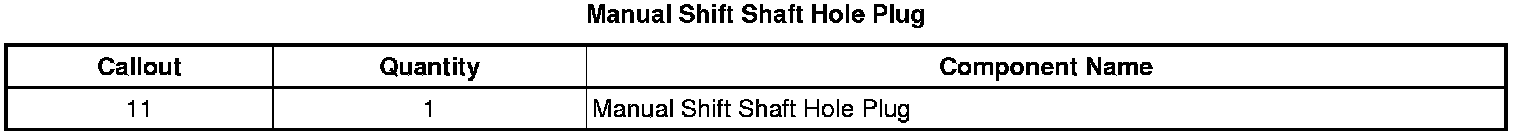

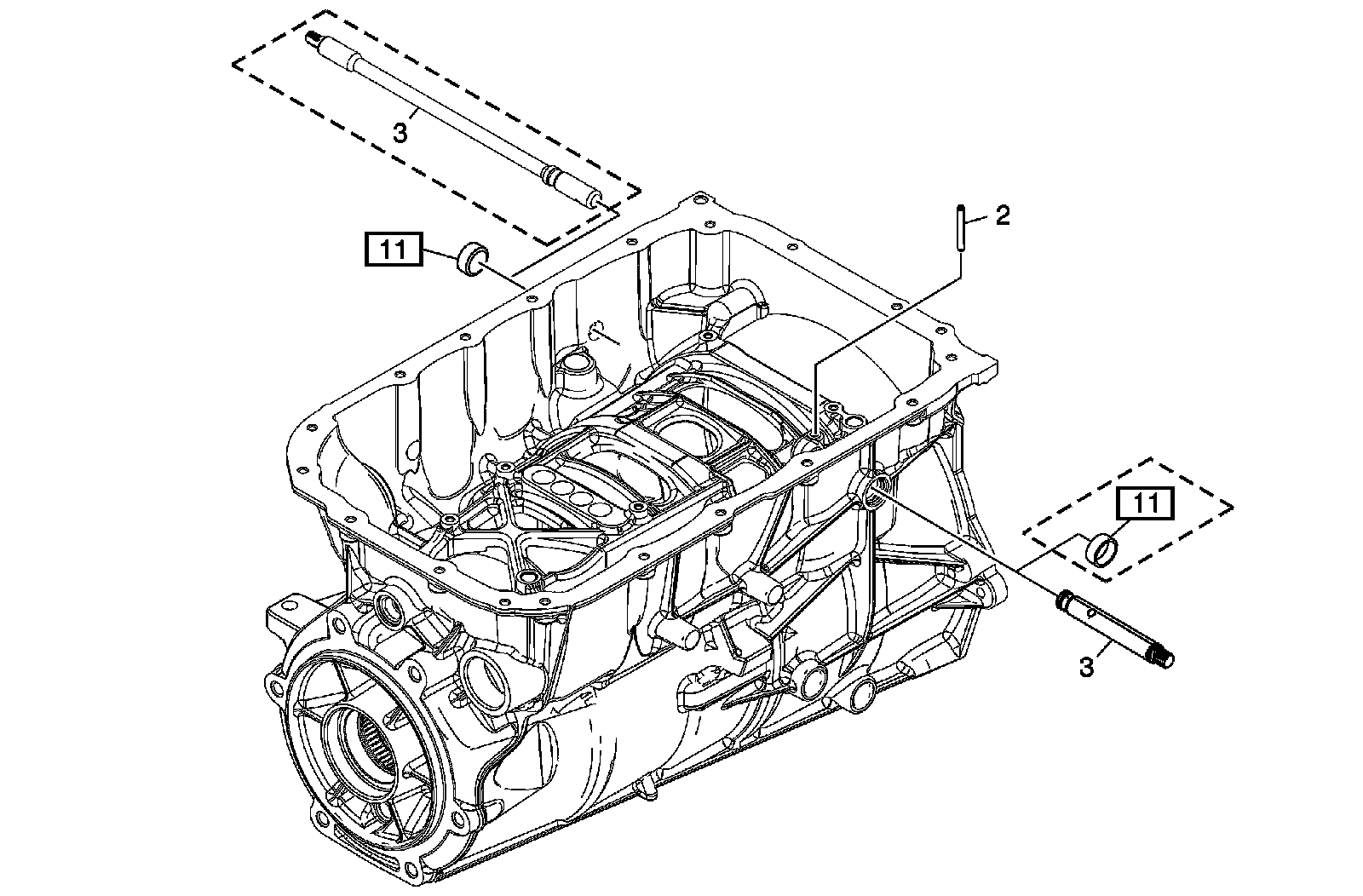

Manual Shift Shaft Hole Plug





Note: Callouts with boxes around them indicate part is included in the service kit. Callouts without boxes are shown for relationship purposes only.
