Powertrain Component Views

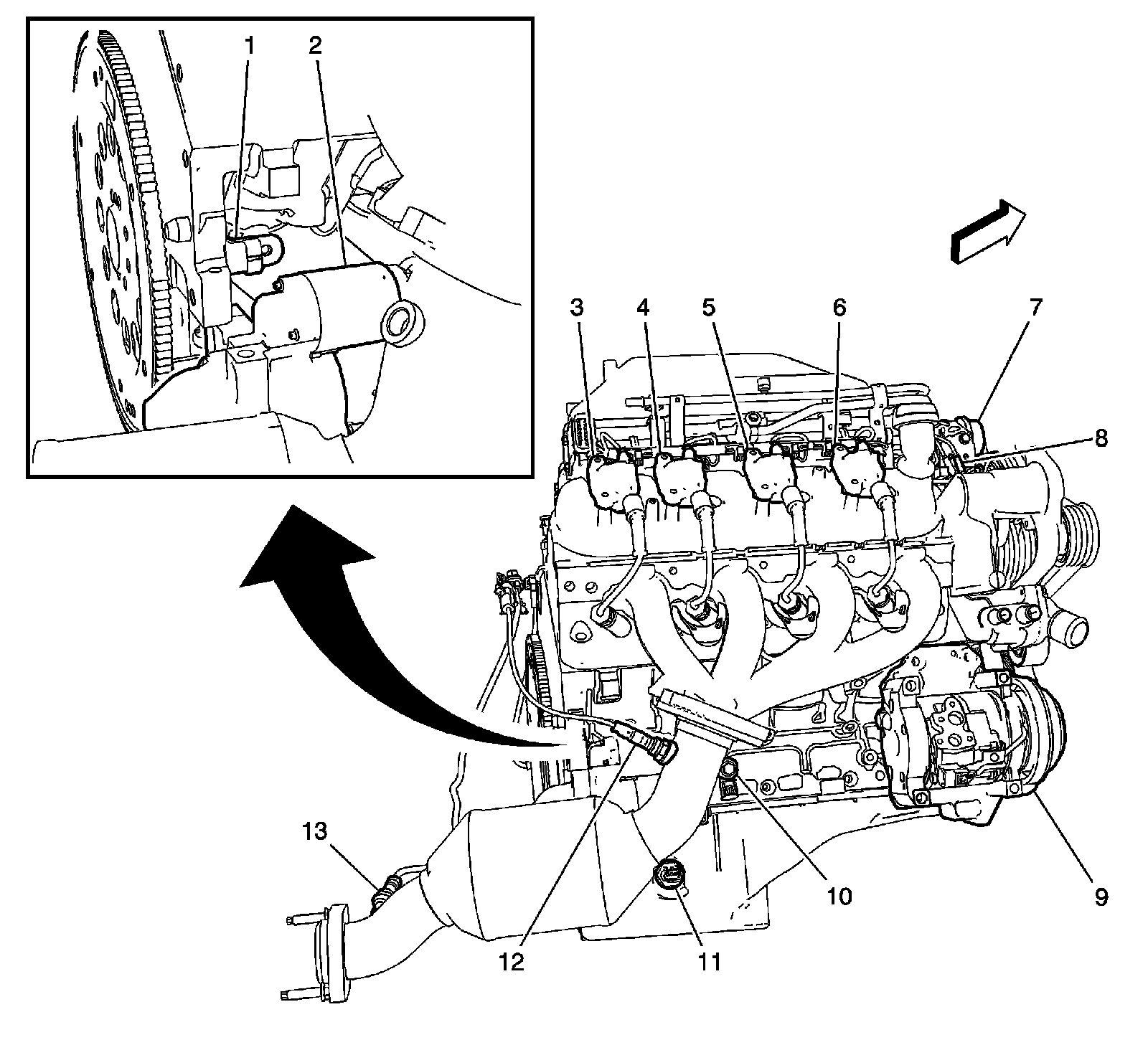

Engine Components - Right Side (LSA)
1 - Crankshaft Position (CKP) Sensor
2 - Starter Motor
3 - Ignition Coil 8
4 - Ignition Coil 6
5 - Ignition Coil 4
6 - Ignition Coil 2
7 - Supercharger Bypass Valve Solenoid
8 - Charge Air Bypass Regulator Solenoid Valve
9 - A/C Compressor Clutch
10 - Knock Sensor (KS) 2
11 - Engine Oil Level and Temperature Sensor
12 - Heated Oxygen Sensor (HO2S) - Bank 2 Sensor 1
13 - Heated Oxygen Sensor (HO2S) - Bank 2 Sensor 2
