Powertrain Component Views

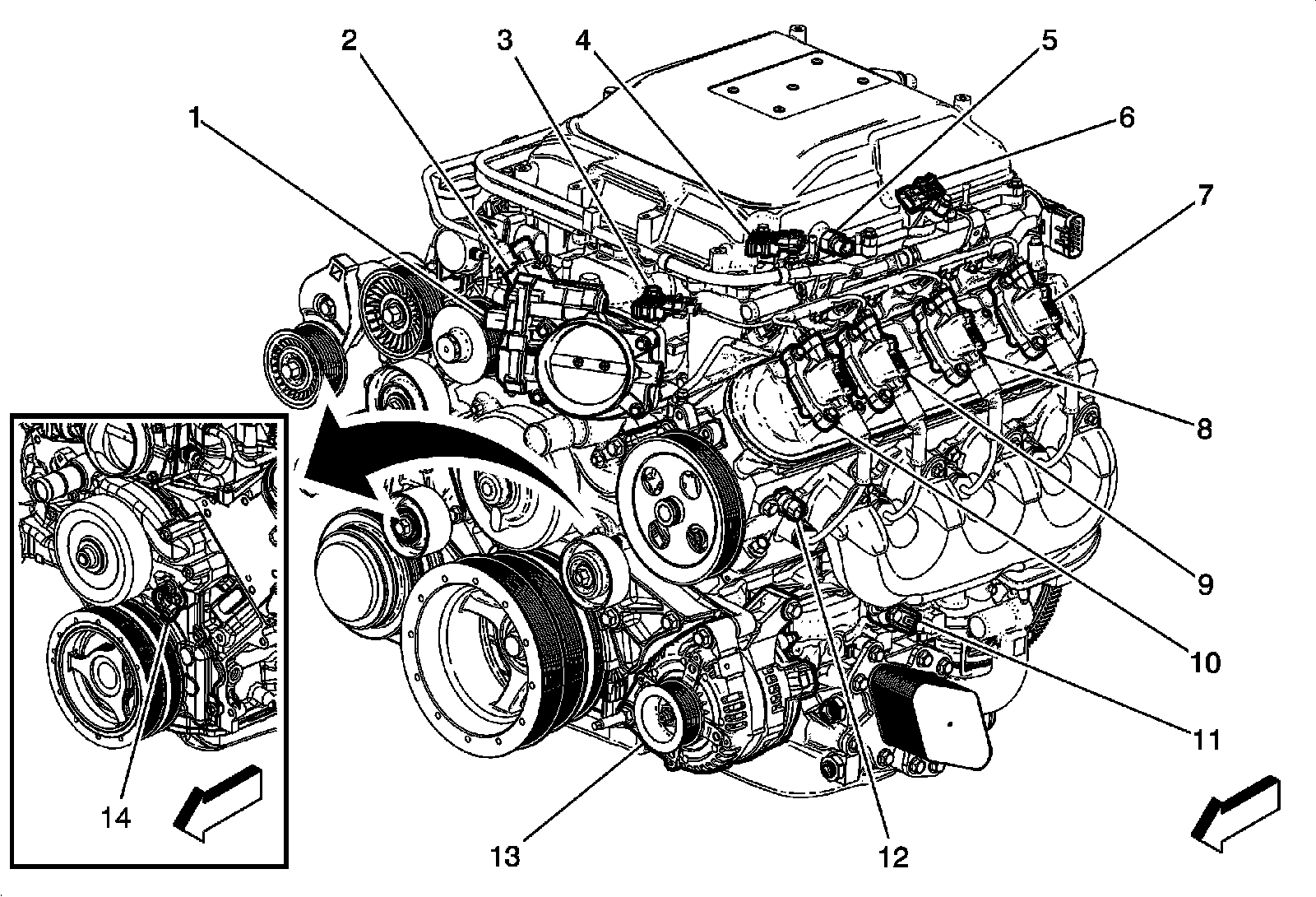

Engine Components - Left Side (LSA)
1 - Throttle Body
2 - Evaporative Emissions (EVAP) Canister Purge Solenoid Valve
3 - Supercharger Air Inlet Pressure Sensor
4 - Manifold Absolute Pressure (MAP) Sensor
5 - Intake Air Temperature (IAT) Sensor
6 - Barometric Pressure (BARO) Sensor
7 - Ignition Coil 7
8 - Ignition Coil 5
9 - Ignition Coil 3
10 - Ignition Coil 1
11 - Knock Sensor (KS) 1
12 - Engine Coolant Temperature (ECT) Sensor
13 - Generator
14 - Camshaft Position (CMP) Sensor
