Component Connector End Views

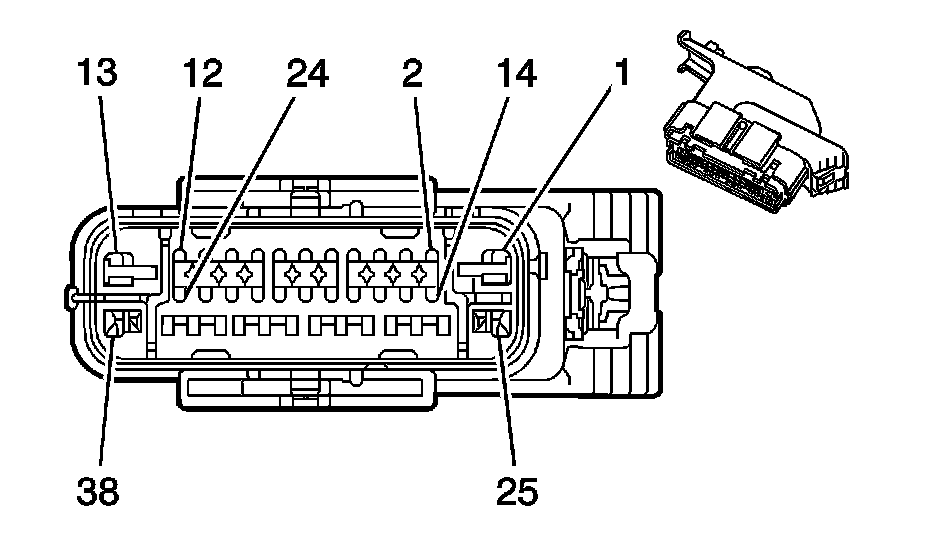

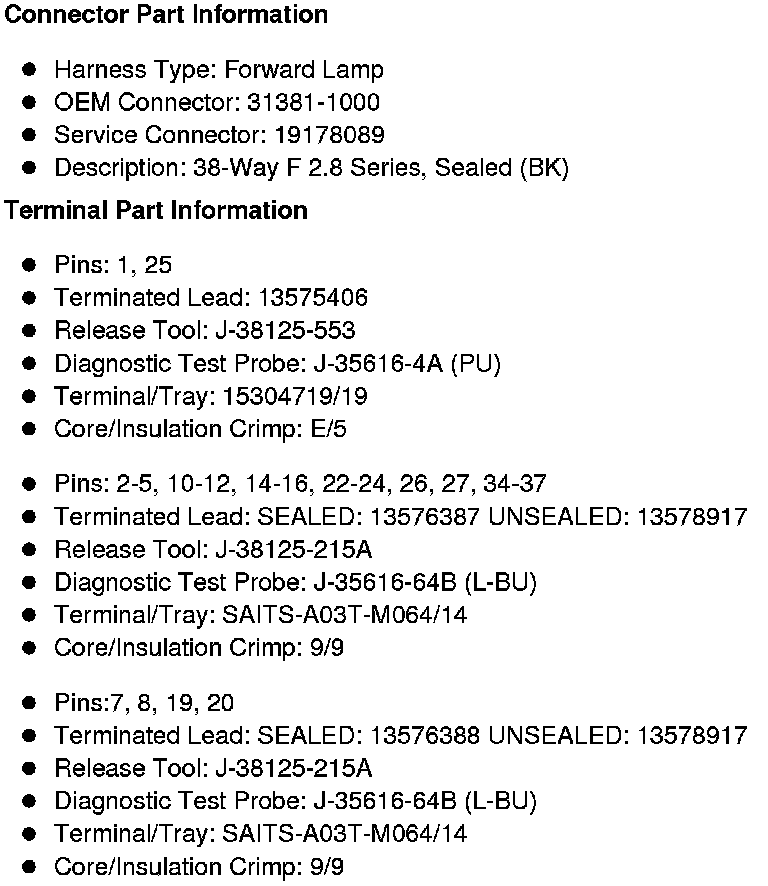

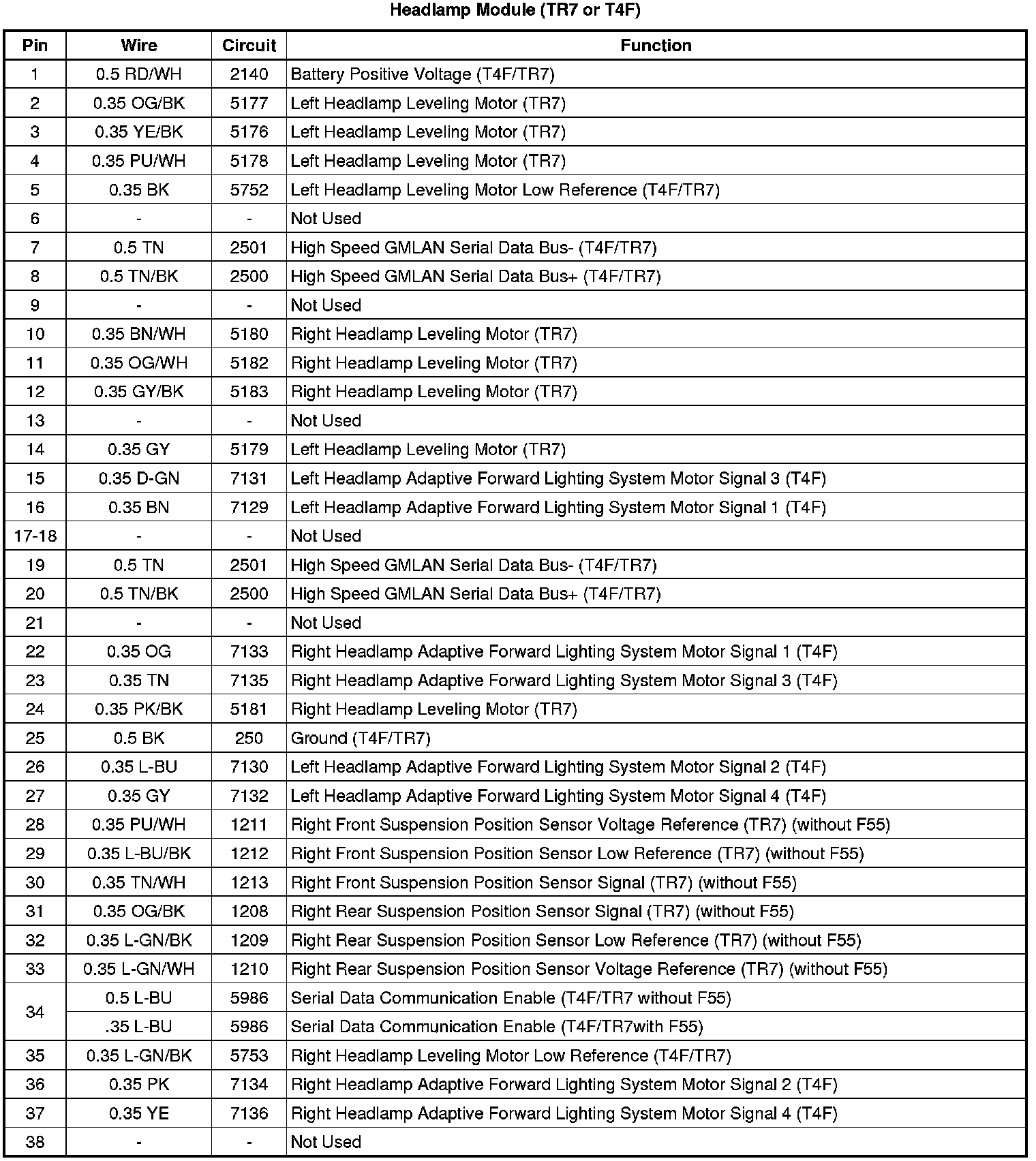

Headlamp Module (TR7 or T4F)
Headlamp Control Module
Need a step-by-step guide?
Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 2013 Cadillac.
Component Connector End Views
Headlamp Module (TR7 or T4F)
