Rear Integration Module Replacement - Cadillac 1999 Seville SLS V8-4.6L VIN Y Service Manual

Rear Integration Module Replacement

Need a step-by-step guide?

Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 1999 Cadillac.

REMOVAL PROCEDURE
Before replacement of the rear integration module record the personalization settings (if equipped). Program the new module with the personalization settings after replacement.
1. Remove the rear seat cushion.
2. Remove the rear seat back.
3. Move the rear seat back insulator aside.

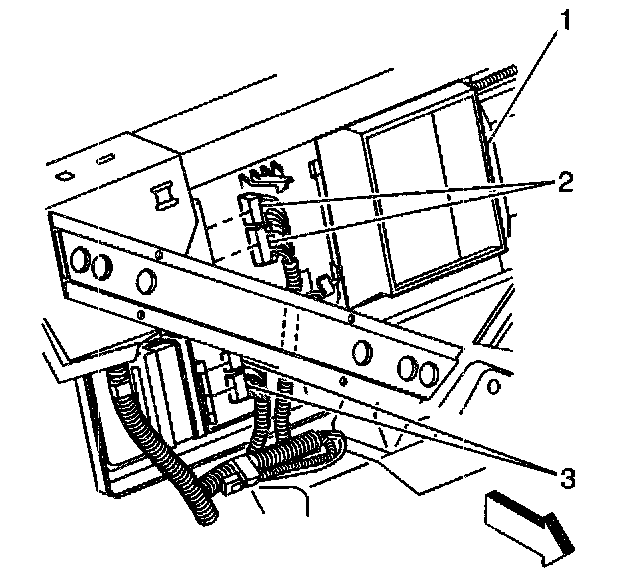

4. Disconnect the rear integration module electrical connectors (3).
5. Remove the rear integration module.

INSTALLATION PROCEDURE
1. Install the rear integration module.
2. Connect the electrical connectors (3).
3. Reposition the rear seat back insulator.
4. Install the rear seat back.
5. Install the rear seat cushion.
6. Perform the vehicle personalization to reset the owner's desired personalization settings. Refer to BCM Programming/RPO Configuration. Testing and Inspection
