Dash Integration Module Replacement - Cadillac 1999 Seville SLS V8-4.6L VIN Y Service Manual

Dash Integration Module Replacement

Need a step-by-step guide?

Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 1999 Cadillac.

REMOVAL PROCEDURE
Before replacement of the dash integration module record the personalization settings (if equipped). Program the new module with the personalization settings after replacement.
1. Remove the passenger side sound insulator.
2. Disconnect the courtesy lamp electrical connector.
3. Remove the IP storage compartment.

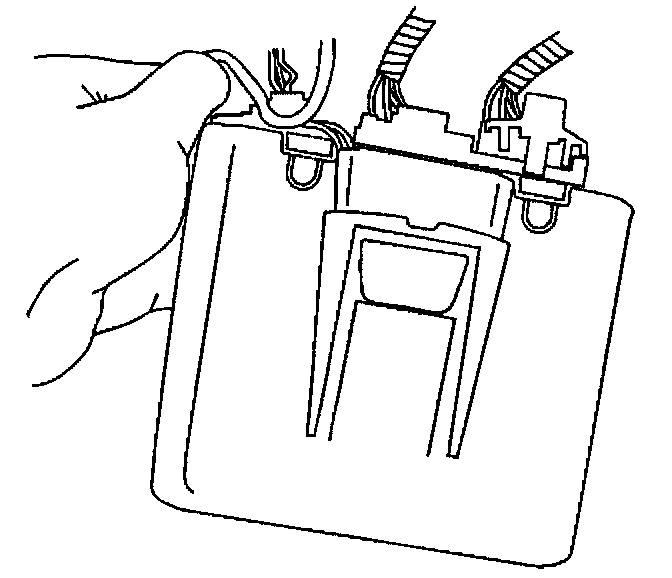

4. Disconnect the dash integration module electrical connectors.
5. Remove the dash integration module from the bracket.

INSTALLATION PROCEDURE
1. Install the dash integration module to the bracket.
2. Connect the dash integration module electrical connectors.
3. Install the IP storage compartment.
4. Connect the courtesy lamp electrical connector
5. Install the passenger side sound insulator.
6. Reprogram the dash integration module. Testing and Inspection
