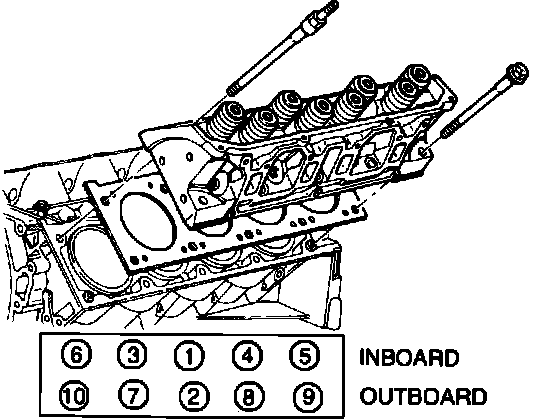

Fig. 7 Cylinder Head Bolt Tightening Sequence:
In the sequence shown in figure 7:
1. Torque all bolts to 38 ft. lbs.
2. Torque all bolts to 68 ft. lbs.
3. Torque bolts 1, 3 and 4 to 90 ft. lbs.
System Specifications
Need a step-by-step guide?
Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 1991 Cadillac.
In the sequence shown in figure 7:
1. Torque all bolts to 38 ft. lbs.
2. Torque all bolts to 68 ft. lbs.
3. Torque bolts 1, 3 and 4 to 90 ft. lbs.
