Scan Tool Data List (3.8L)
Use the scan tool data list under the following conditions:
^ The Diagnostic System Check is complete.
^ The on-board diagnostics are functioning properly.
^ No DTC's are present.
The values below represent a typical display recorded from a properly functioning system.
Important: :
Do not use a scan tool that displays faulty data. Report the condition to the scan tool manufacturer. The use of a faulty scan tool can result in misdiagnosis and the unnecessary replacement of parts.
Only the parameters listed below are used in this manual for diagnosing. If a scan tool displays other parameters, the values are not recommended by General Motors for use in diagnosis.

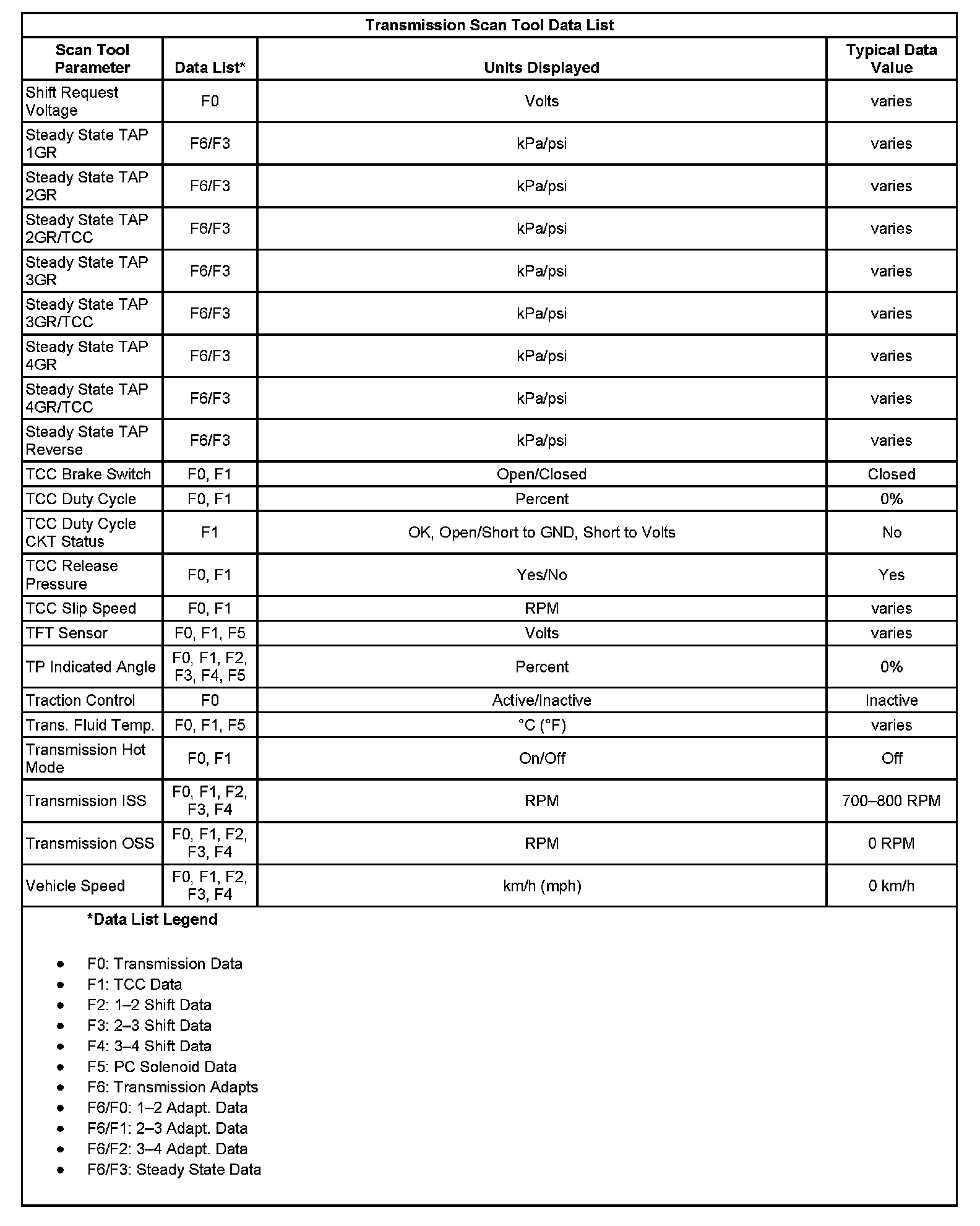

Transmission Scan Tool Data List:
Transmission Scan Tool Data List:
Scan tool values below were recorded under the following conditions:
^ Engine at Idle
^ Upper radiator hose hot
^ Closed throttle
^ Transmission in PARK
^ Closed Loop operation
^ Accessories OFF
^ Brake pedal not applied
