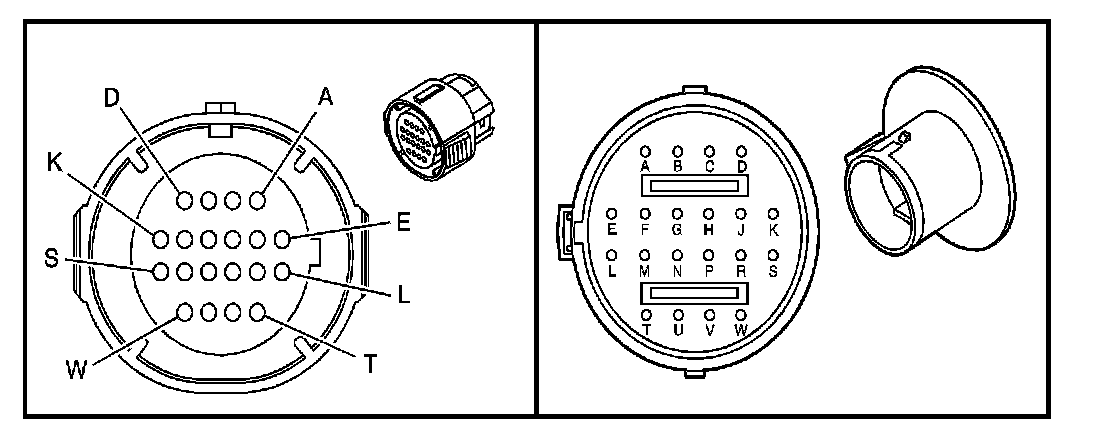

Automatic Transmission Inline 20-Way Connector End View

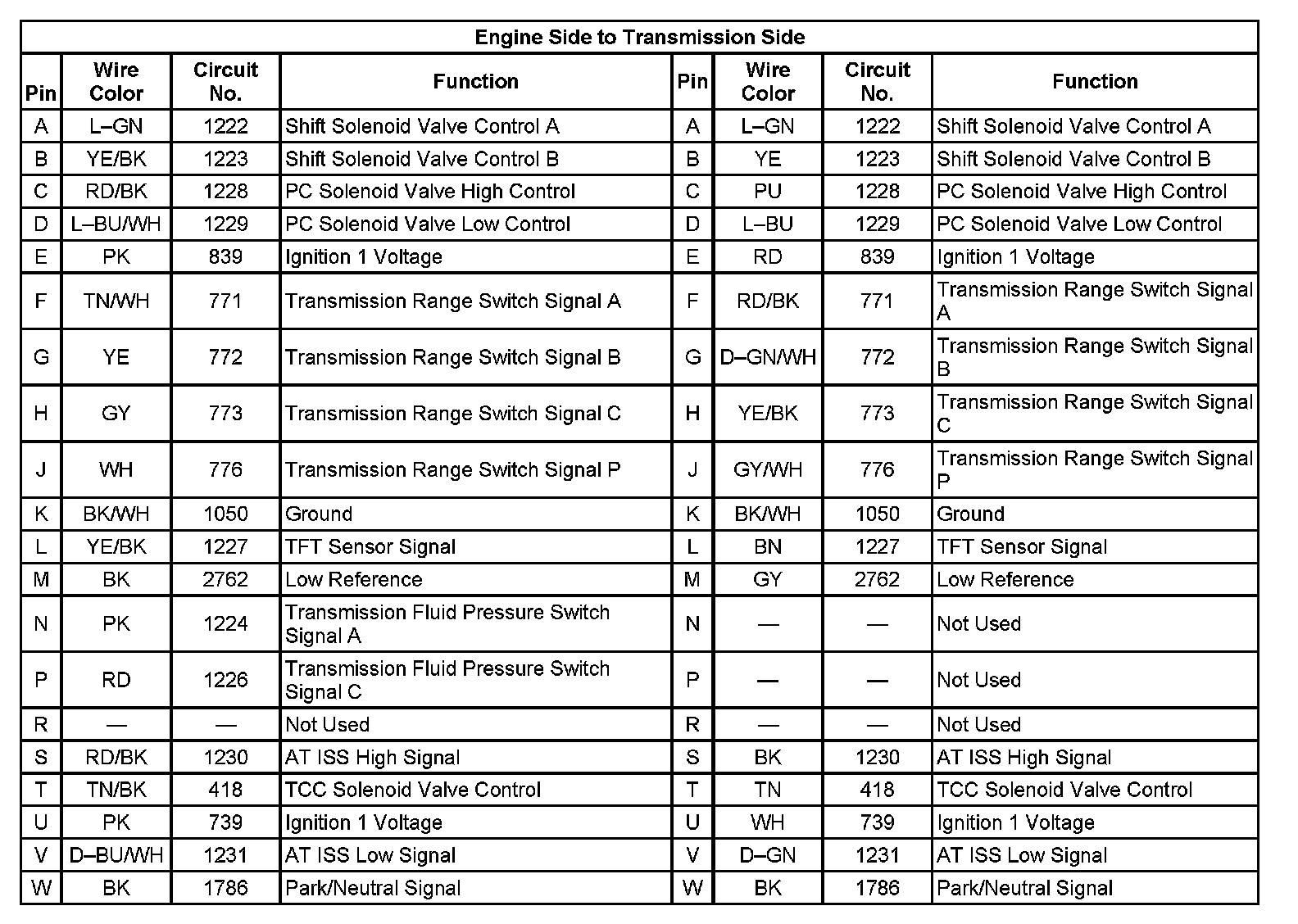

Engine Side to Transmission Side
Engine Side to Transmission Side:
4T80-E Automatic Transaxle
Need a step-by-step guide?
Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 2006 Buick.
Automatic Transmission Inline 20-Way Connector End View
Engine Side to Transmission Side
