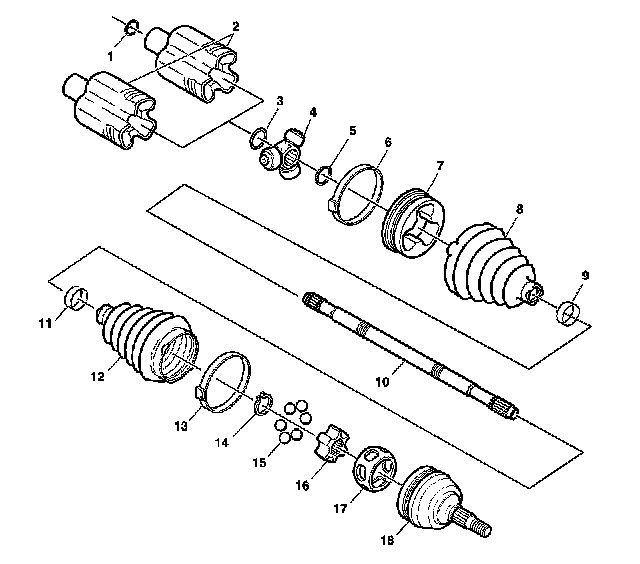

Wheel Drive Shafts Disassembled Views:
1 - Retaining Ring
2 - Retainer and Housing Assembly
3 - Spacer Ring
4 - Tripot Spider Assembly
5 - Spacer Ring
6 - Seal Retaining Clamp
7 - Tripot Trilobal Bushing
8 - Inboard Seal
9 - Swage Ring
10 - Halfshaft Bar
11 - Swage Ring
12 - Outboard Seal
13 - Seal Retaining Clamp
14 - Race Retaining Ring
15 - Chrome Alloy Balls
16 - CV Joint Inner Race
17 - CV Joint Cage
18 - CV Joint Outer Race
