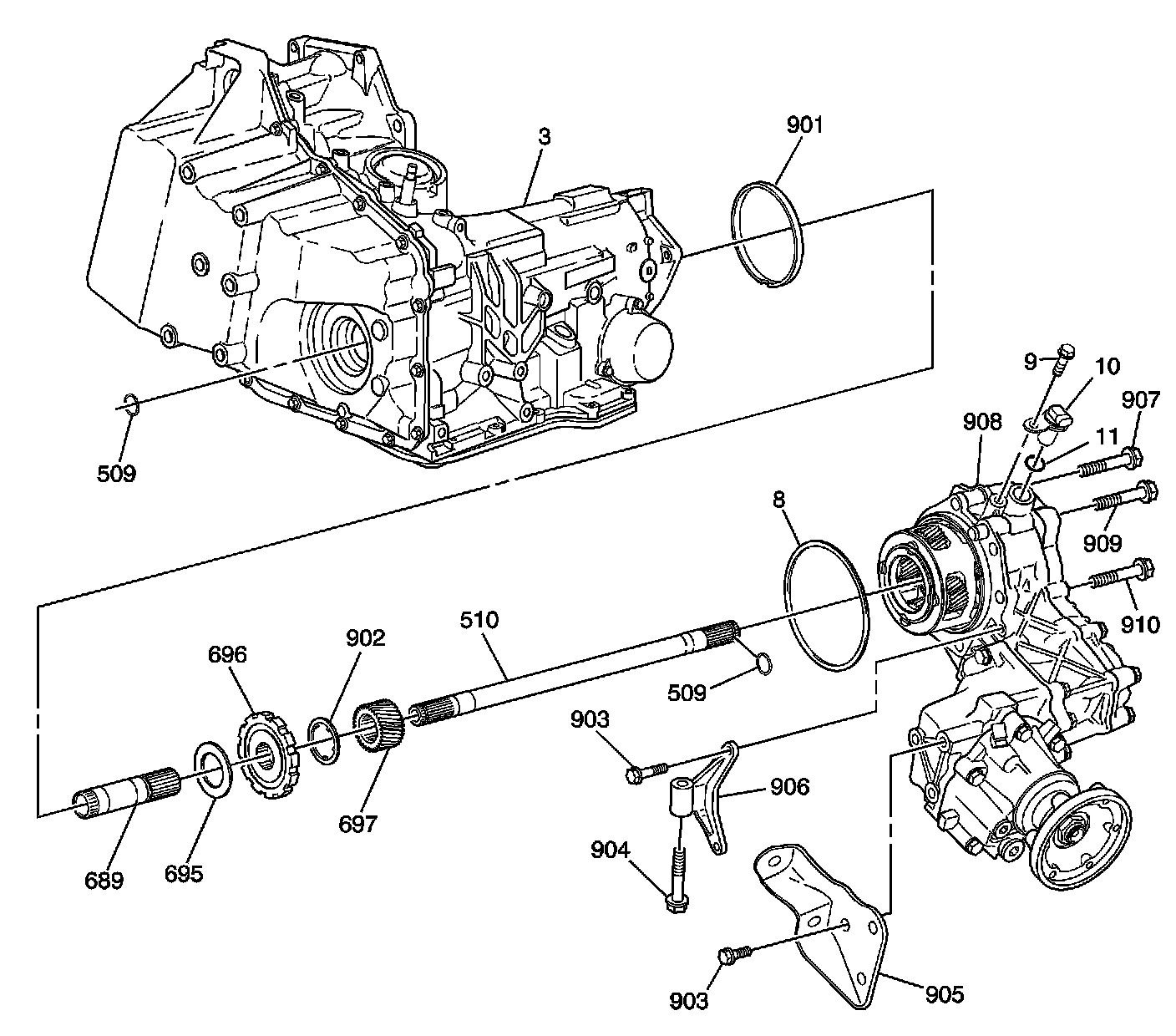

Disassembled Views
Transmission to Transfer Case Components:
3 - Transmission Case
8 - Case Extension Seal
9 - Vehicle Speed Sensor Bolt M8 X 1.25 X 12.0
10 - Vehicle Speed Sensor Assembly
11 - Vehicle Speed Sensor O-Ring Seal
509 - Output Shaft Snap Ring
509 - Output Shaft Snap Ring
510 - Output Shaft
689 - Final Drive Sun Gear Shaft
695 - Parking Gear Thrust Bearing
696 - Parking Gear
697 - Final Drive Sun Gear
901 - Oil Dam
902 - Selective Washer
903 - Brace Bolts
903 - Brace Bolts
904 - Transfer Case Lower Brace Bolt
905 - Side Brace
906 - Lower Brace
907 - Transfer Case to Case Bolts
908 - Transfer Case Assembly
909 - Transfer Case to Case Bolts
910 - Transfer Case to Case Bolts
911 - Output Stub Shaft
912 - Output Stub Shaft Snap Ring
