Disassembled Views

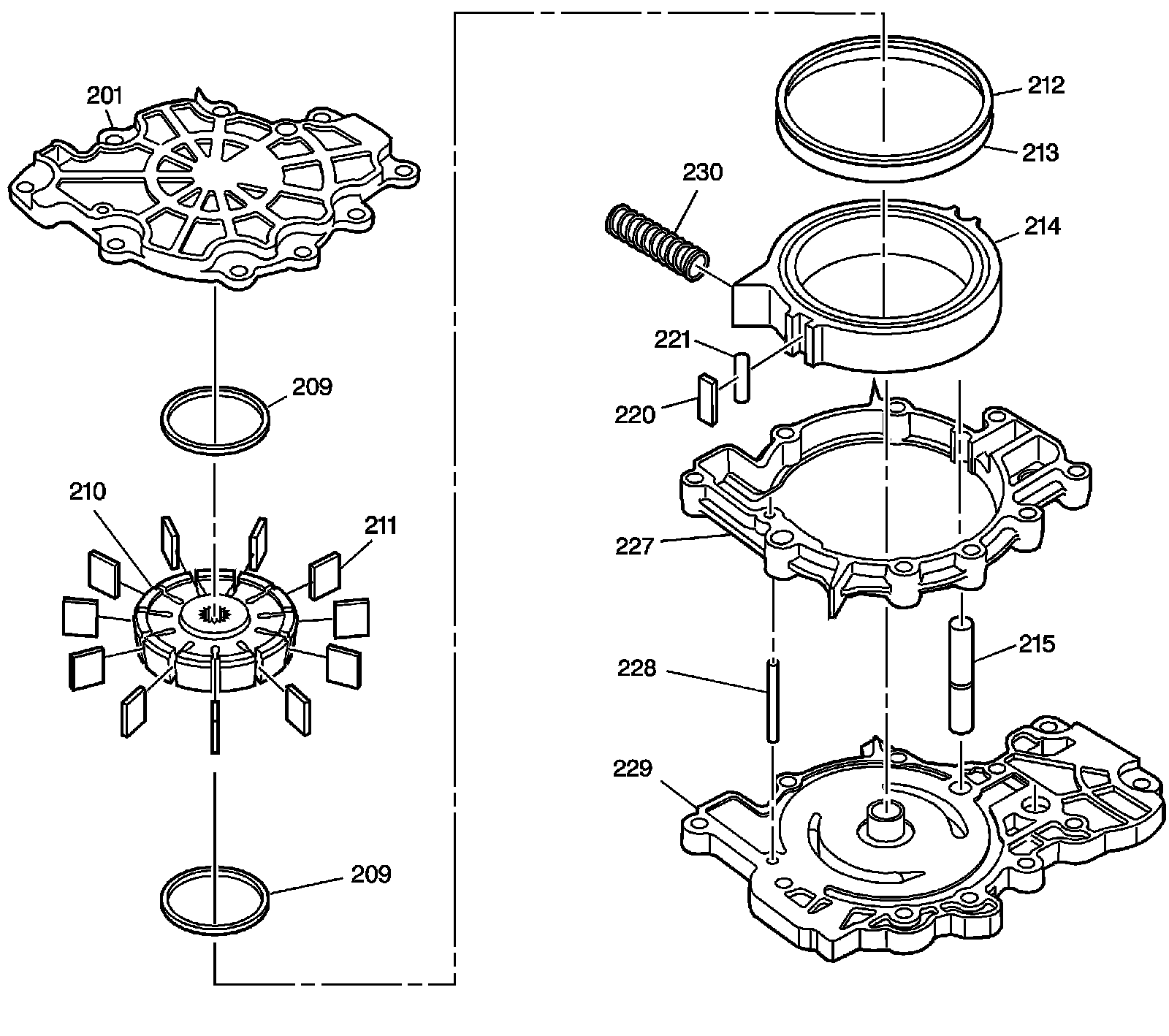

Oil Pump Assembly:
201 - Pump Cover
209 - Oil Pump Vane Ring
209 - Oil Pump Vane Ring
210 - Oil Pump Selective Rotor
211 - Oil Pump Selective Vane
212 - Oil Pump Slide Oil Seal Ring
213 - Oil Pump Slide O-Ring Seal
214 - Oil Pump Selective Slide
215 - Oil Pump Slide Pivot Pin
220 - Oil Pump Slide Seal
221 - Oil Pump Slide Seal Support
227 - Oil Pump Body
228 - Oil Pump Body Alignment Pin
229 - Oil Pump Base
230 - Oil Pump Prime Spring
