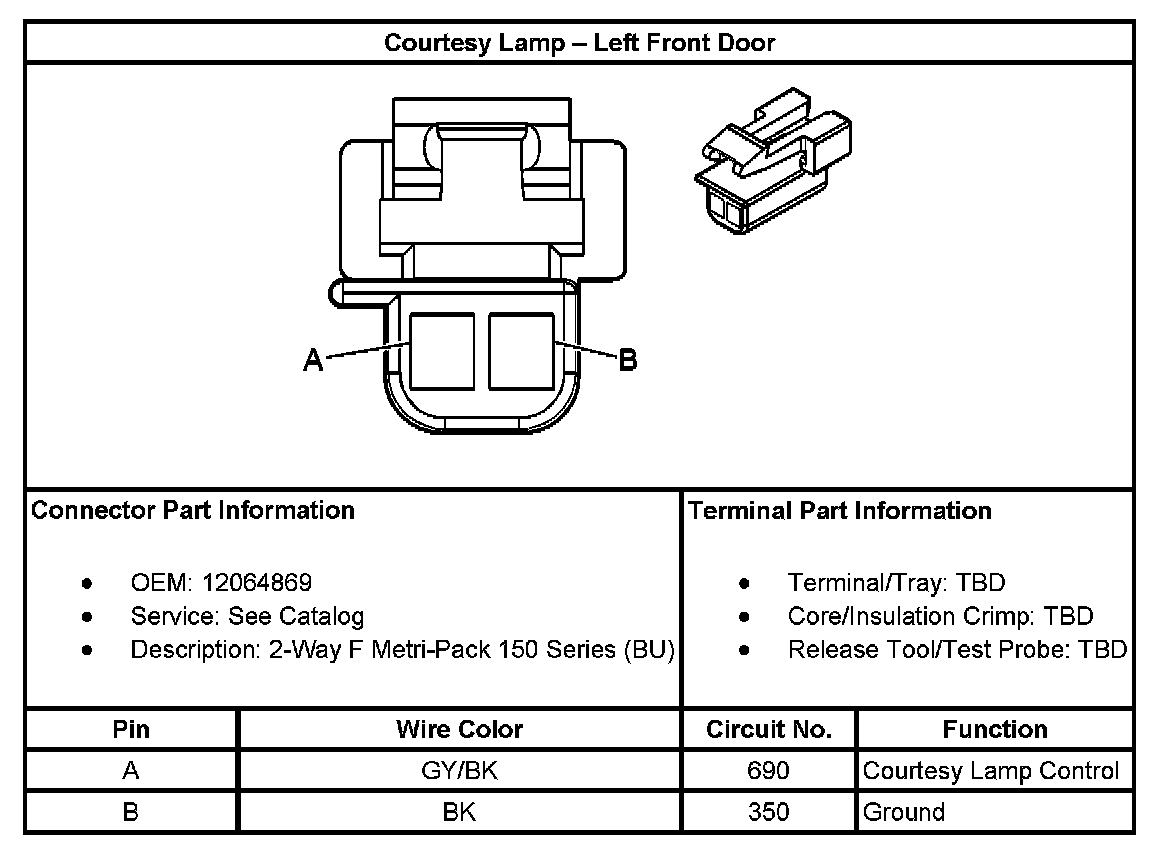

Courtesy Lamp - Left Front Door:

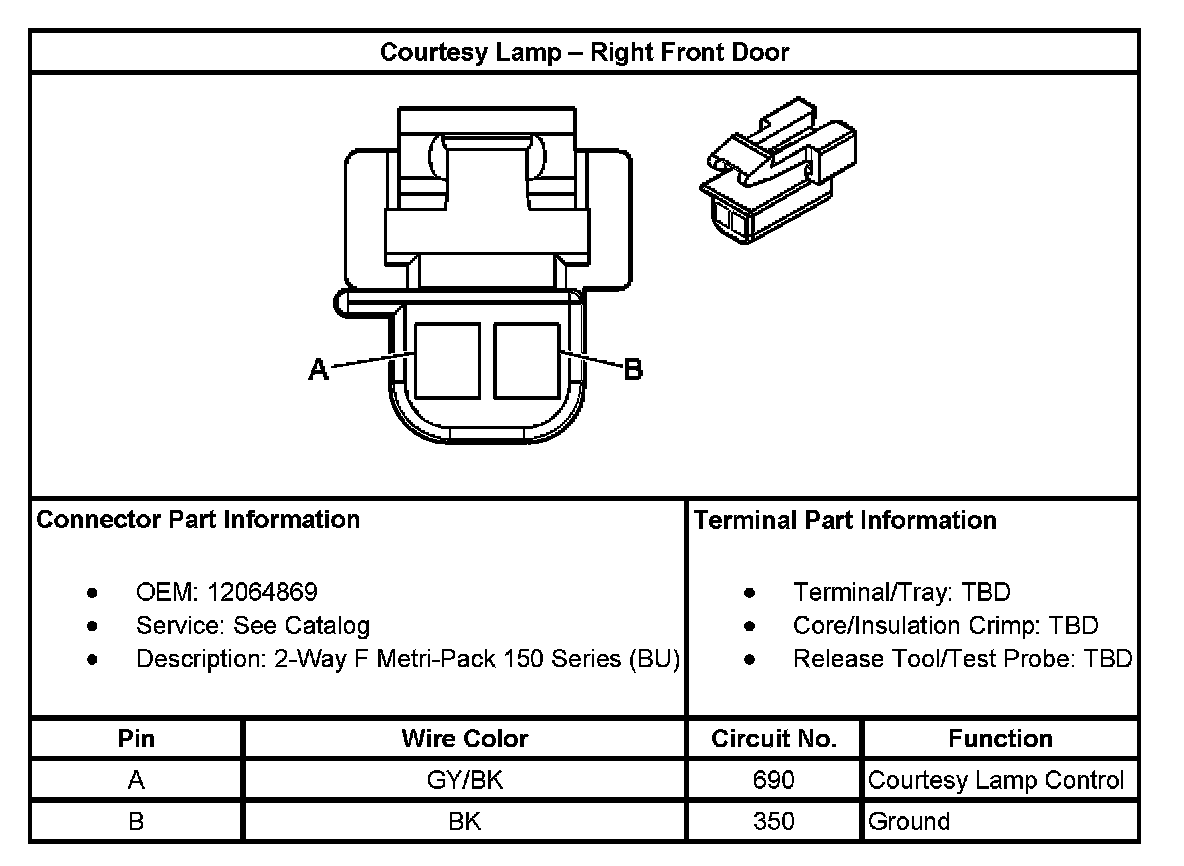

Courtesy Lamp - Right Front Door:
Rear Compartment Courtesy Lamp:

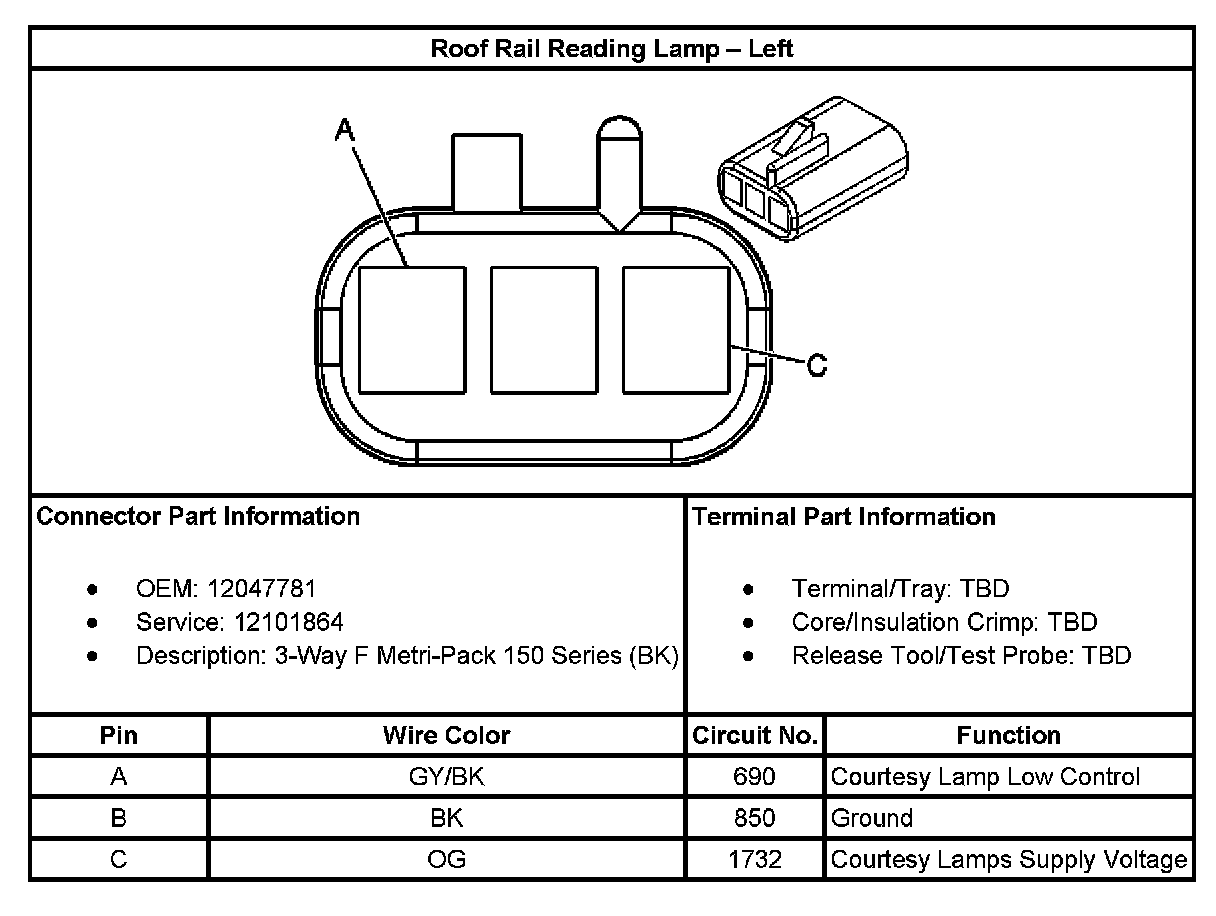

Roof Rail Reading Lamp - Left:

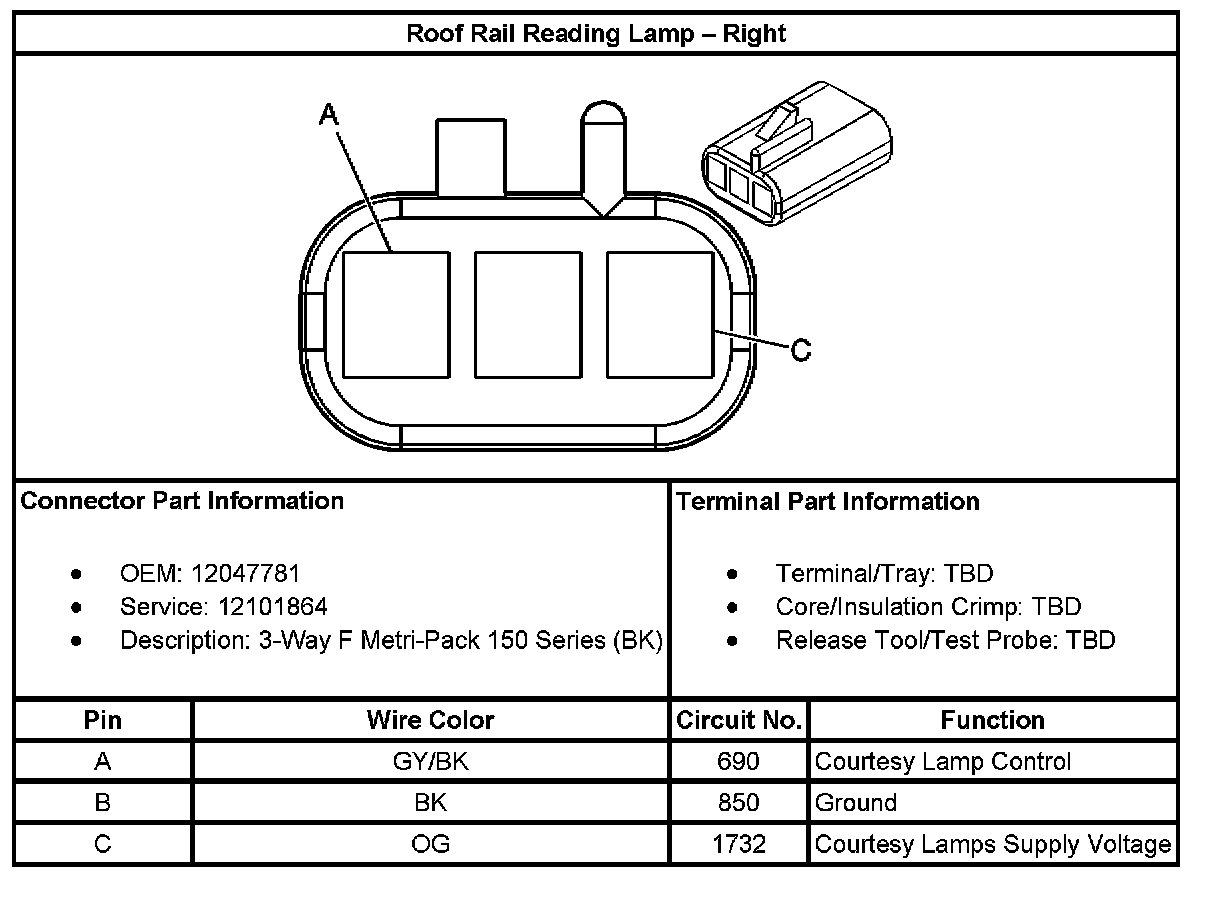

Roof Rail Reading Lamp - Right:
System Diagram
