Steering Wheel Controls System Circuit Description:

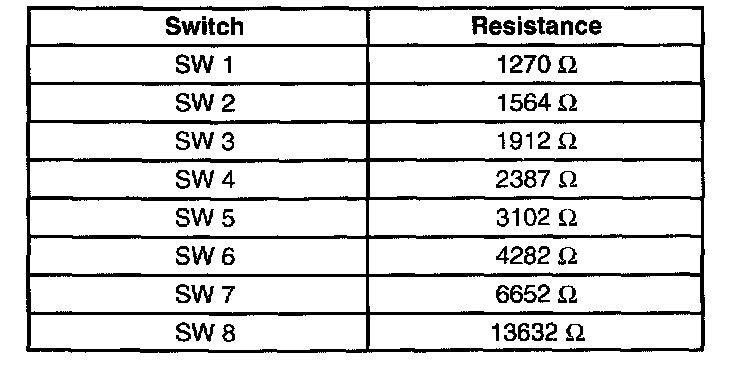

The resistance values provided are measured from pins A to C of the steering wheel controls with the steering wheel controls disconnected. The actual resistance measured should be within 10 percent of the value listed. Refer to Steering Controls Schematics.
