Ignition Control Module: Service and Repair

Need a step-by-step guide?

Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 1996 Buick.

AI Repair Guides

Ignition Control Module (ICM):







REMOVAL PROCEDURE
1. Disconnect the negative battery cable.
2. Raise the vehicle and suitably support.

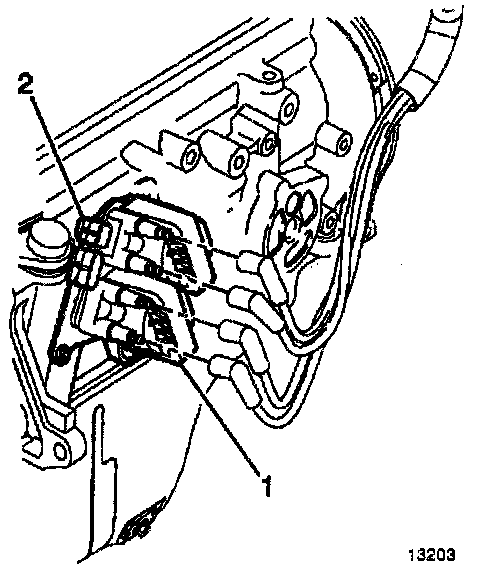

3. Remove the ignition coils (1) from the module.
4. Remove the module (2) from the assembly plate.

INSTALLATION PROCEDURE
1. Install the module to assembly plate (2).
2. Install the ignition Coils (1).
3. Lower the vehicle.
4. Connect the negative battery cable.
