Connector:

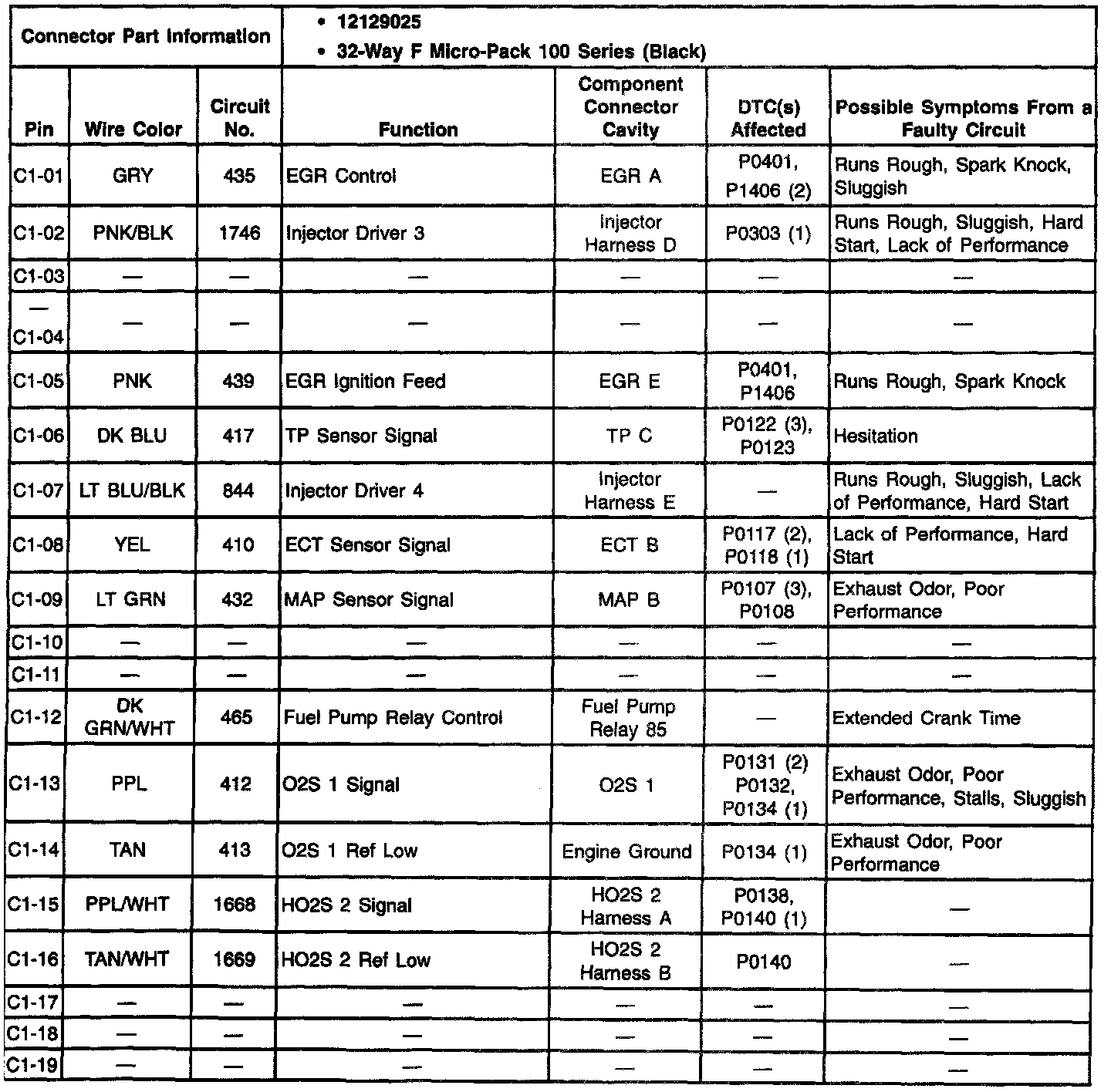

Pins C1-01 Thru C1-19
Pins C1-01 Thru C1-19:

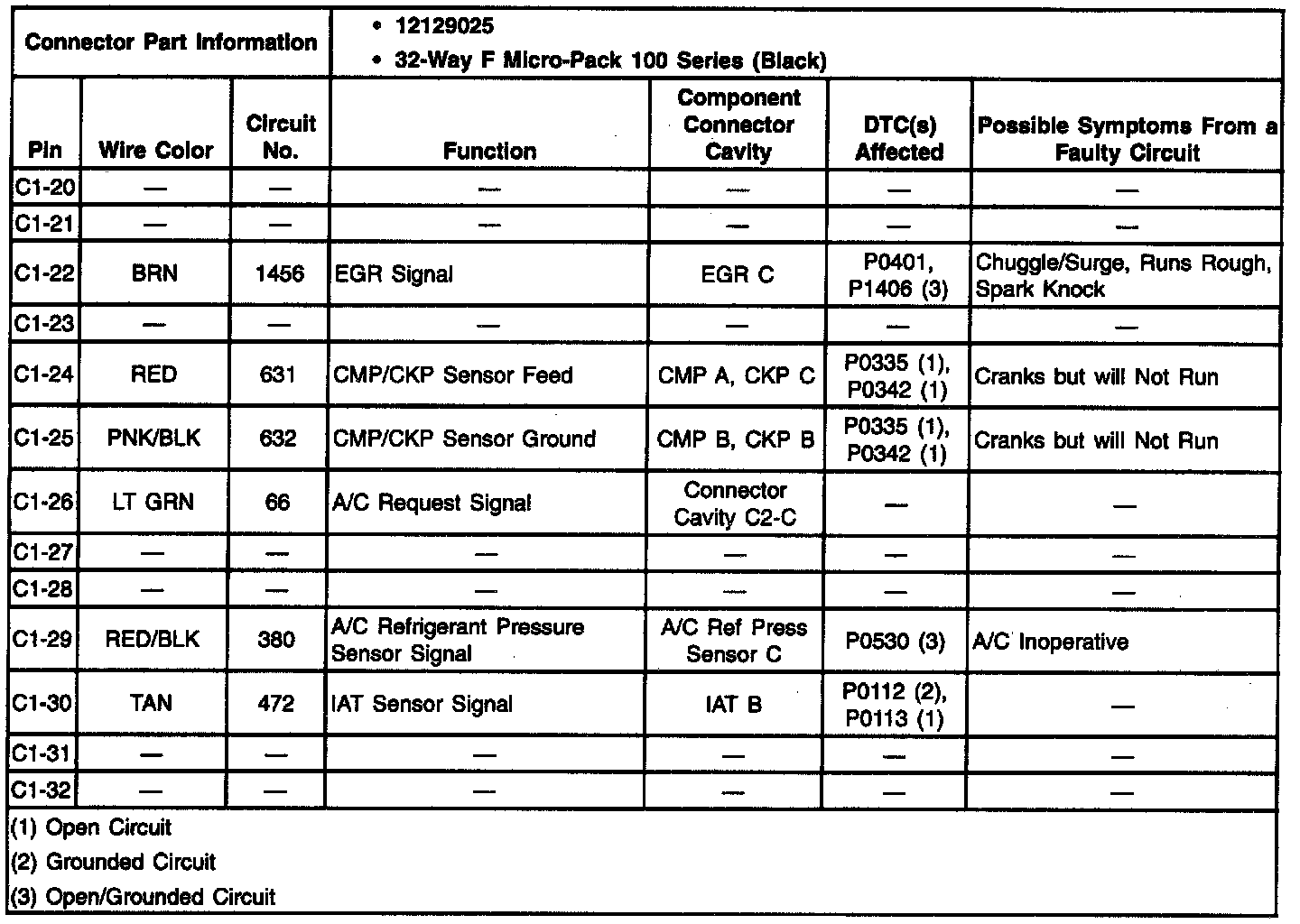

Pins C1-20 Thru C1-32
Pins C1-20 Thru C1-32:
C1 (Black)
Need a step-by-step guide?
Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 1996 Buick.
Pins C1-01 Thru C1-19
Pins C1-20 Thru C1-32
