Air Flow Meter/Sensor: Service and Repair

Need a step-by-step guide?

Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 1993 Buick.

AI Repair Guides

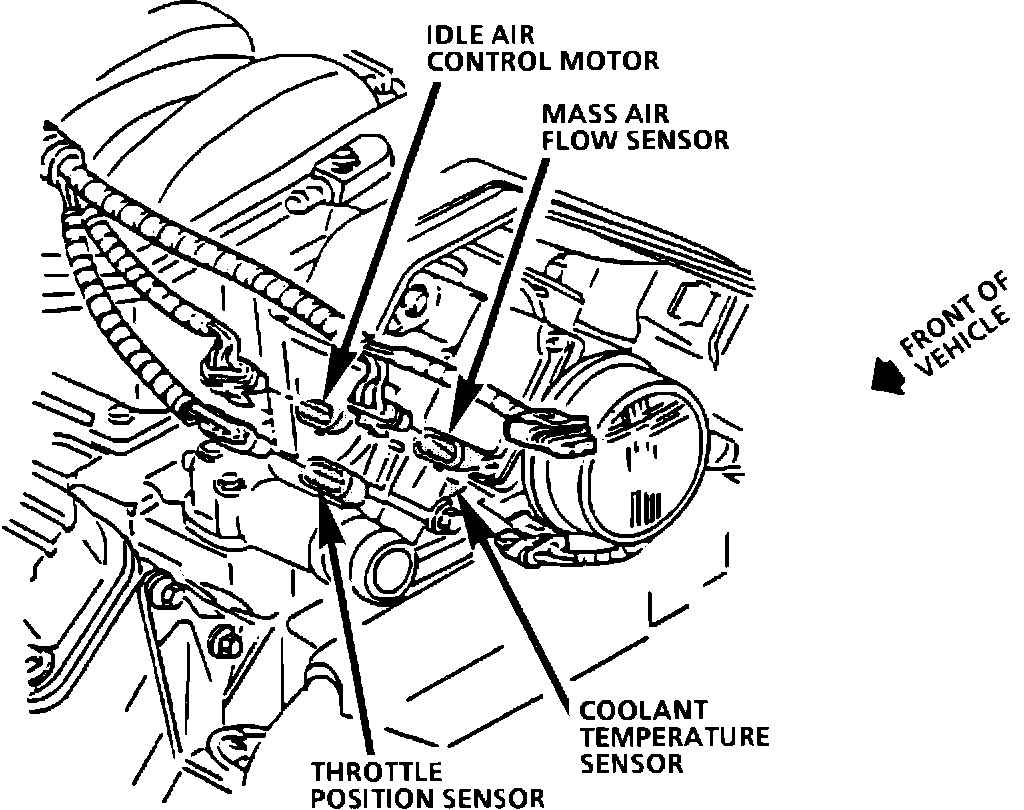

Front RH Side Of Engine:

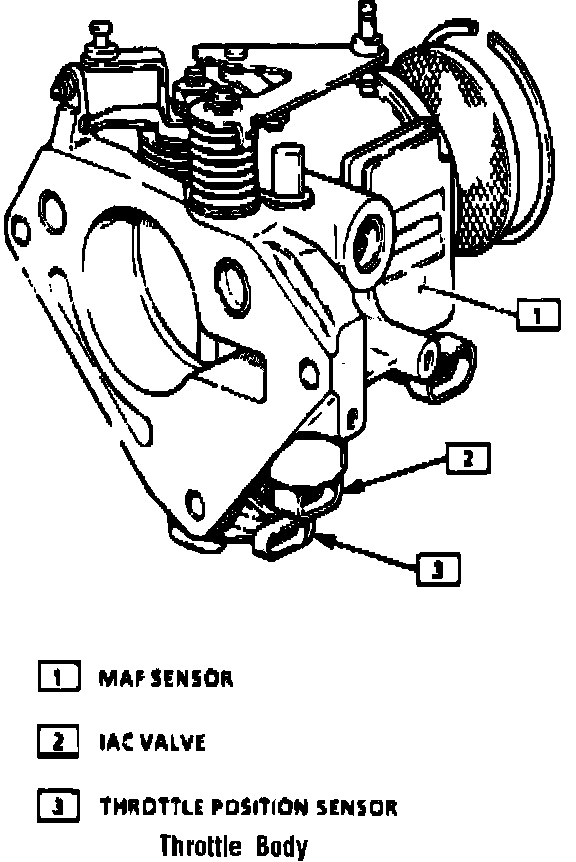

Throttle Body:








REMOVAL:
- Disconnect the negative battery cable.
- Remove the air cleaner assembly and fresh air duct.
- Remove the MAF sensor electrical connector.
- Remove the 4 MAF attaching screws.
- Remove MAF sensor.


INSTALLATION:
- Install the MAF sensor with attaching screws.
- Connect the MAF sensor electrical connector.
- Install the air cleaner assembly and fresh air duct.
- Connect the negative battery terminal.
