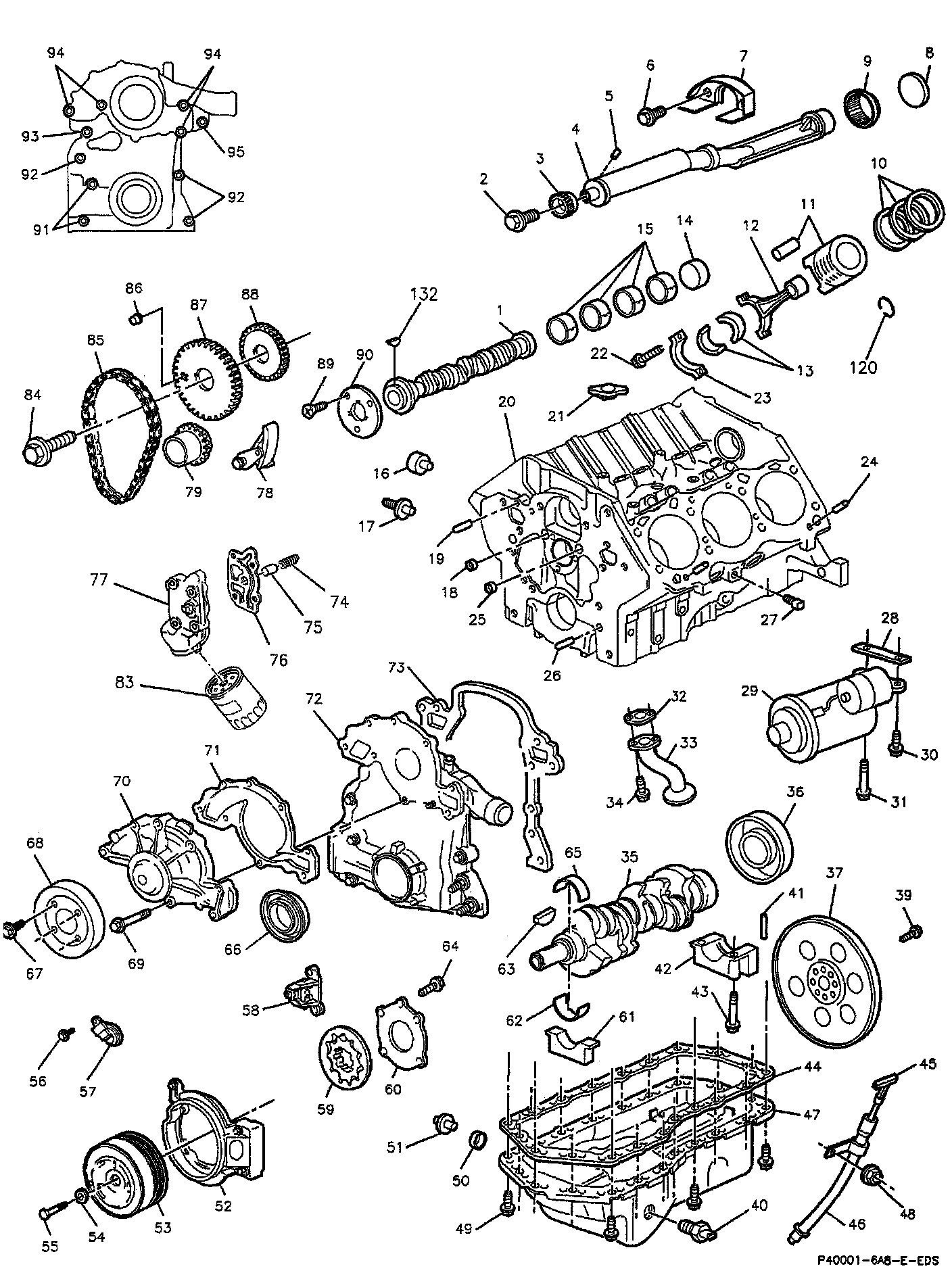

Disassembled Lower Engine:
Legend, Lower Engine:

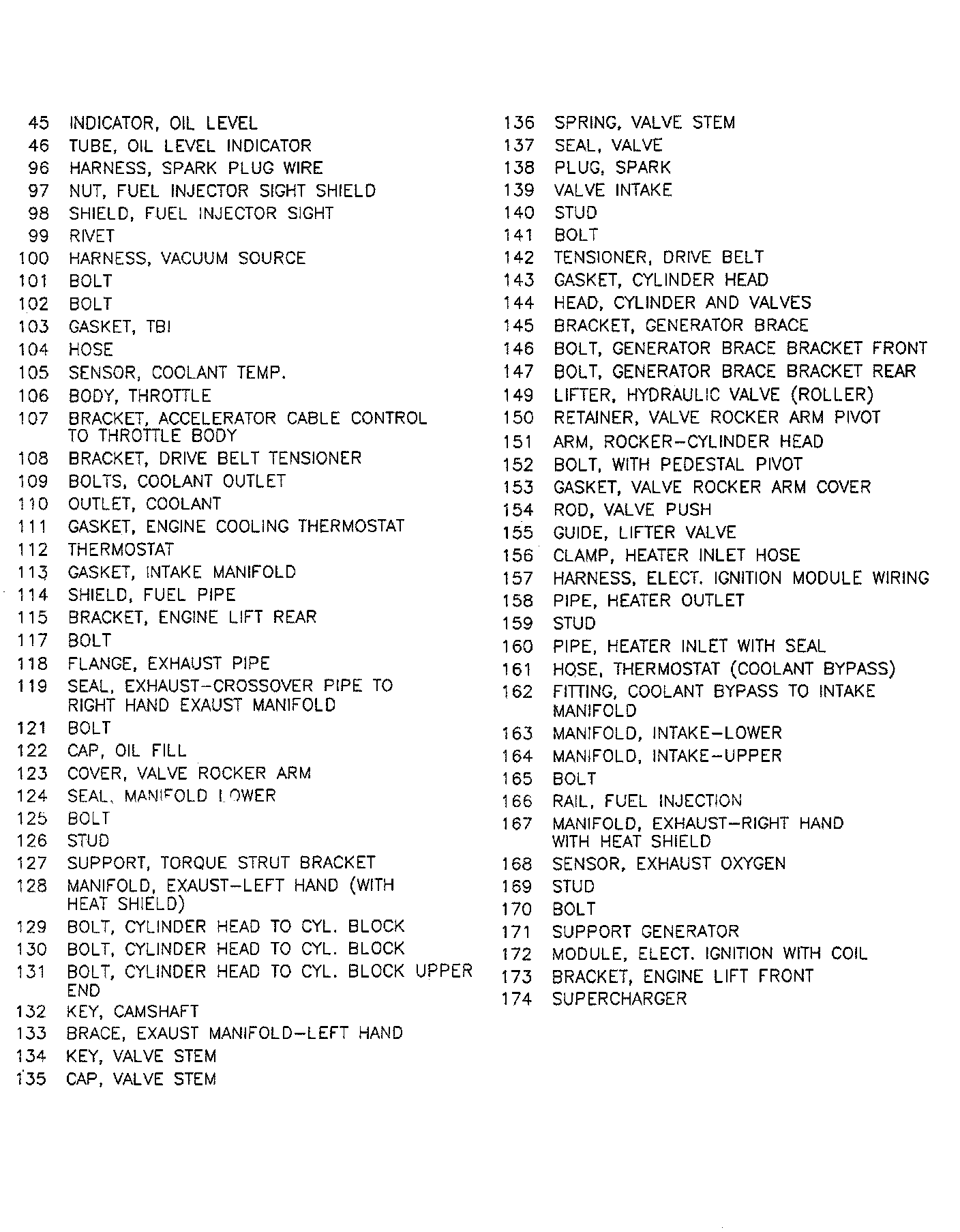

Legend, Upper Engine:

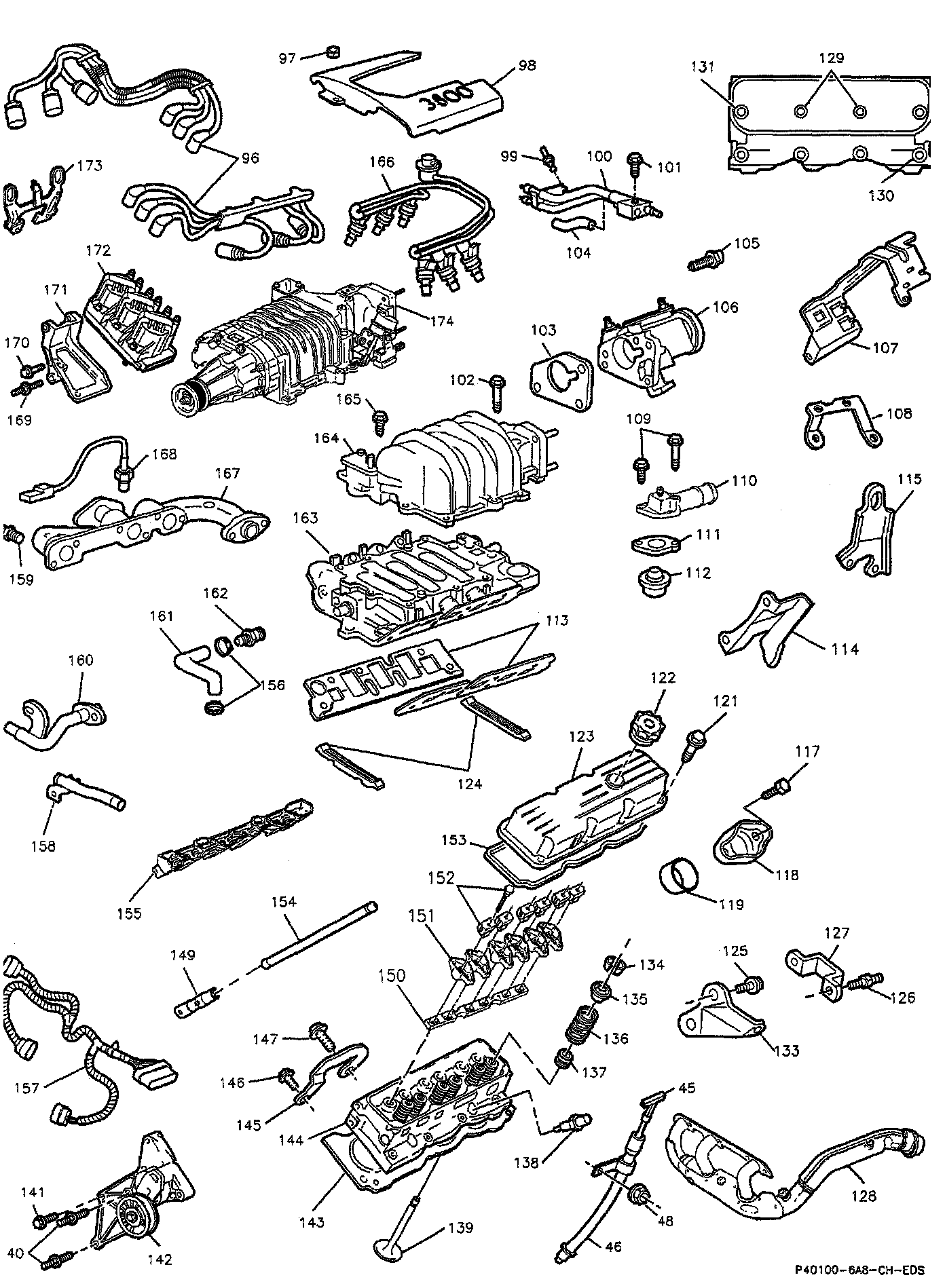

Disassembled Upper Engine:
System Diagram
