Electronic Brake Control Module

Need a step-by-step guide?

Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 1993 Buick.

AI Repair Guides

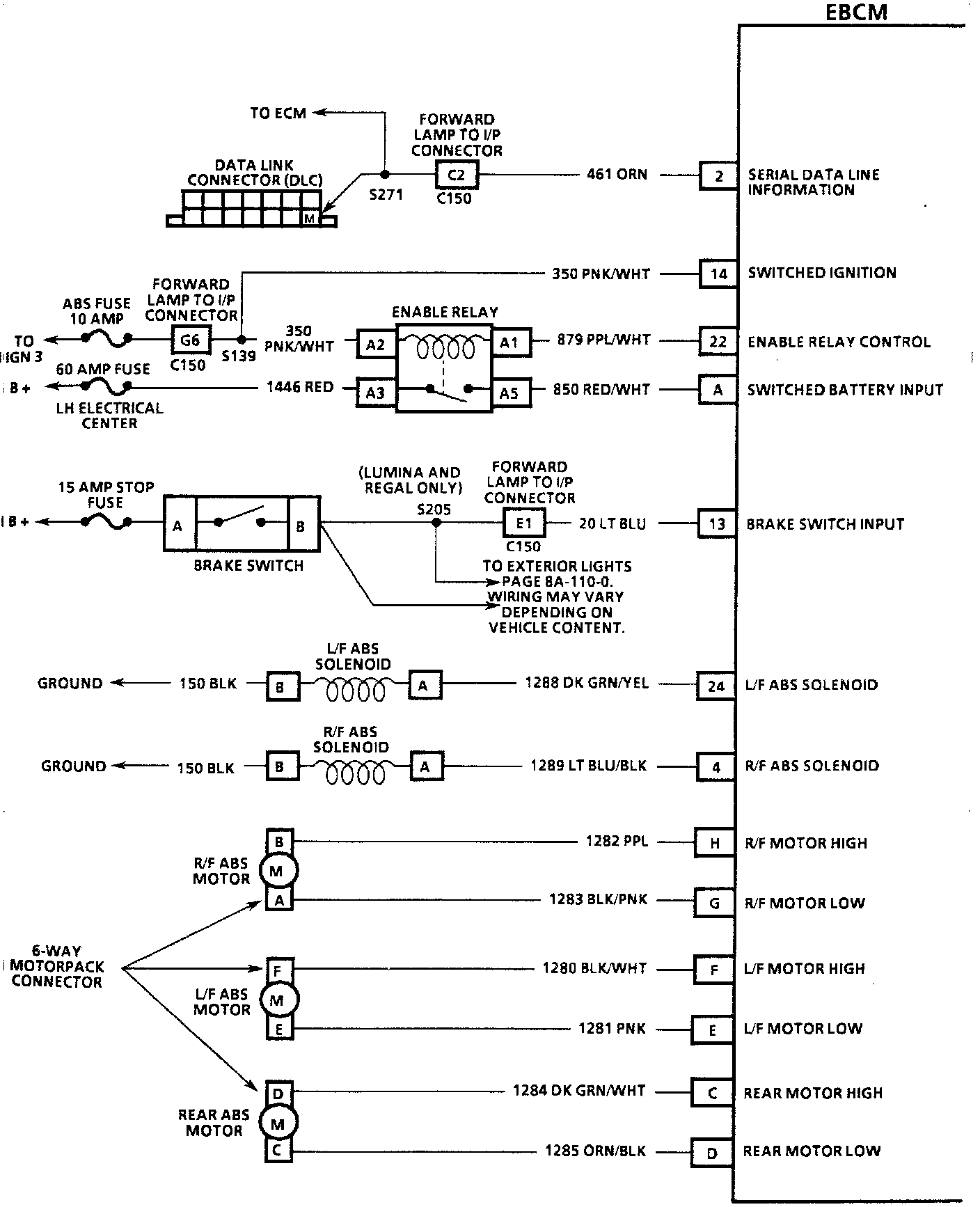

Fig. 3a - Anti-lock Brake System Wiring Diagram:

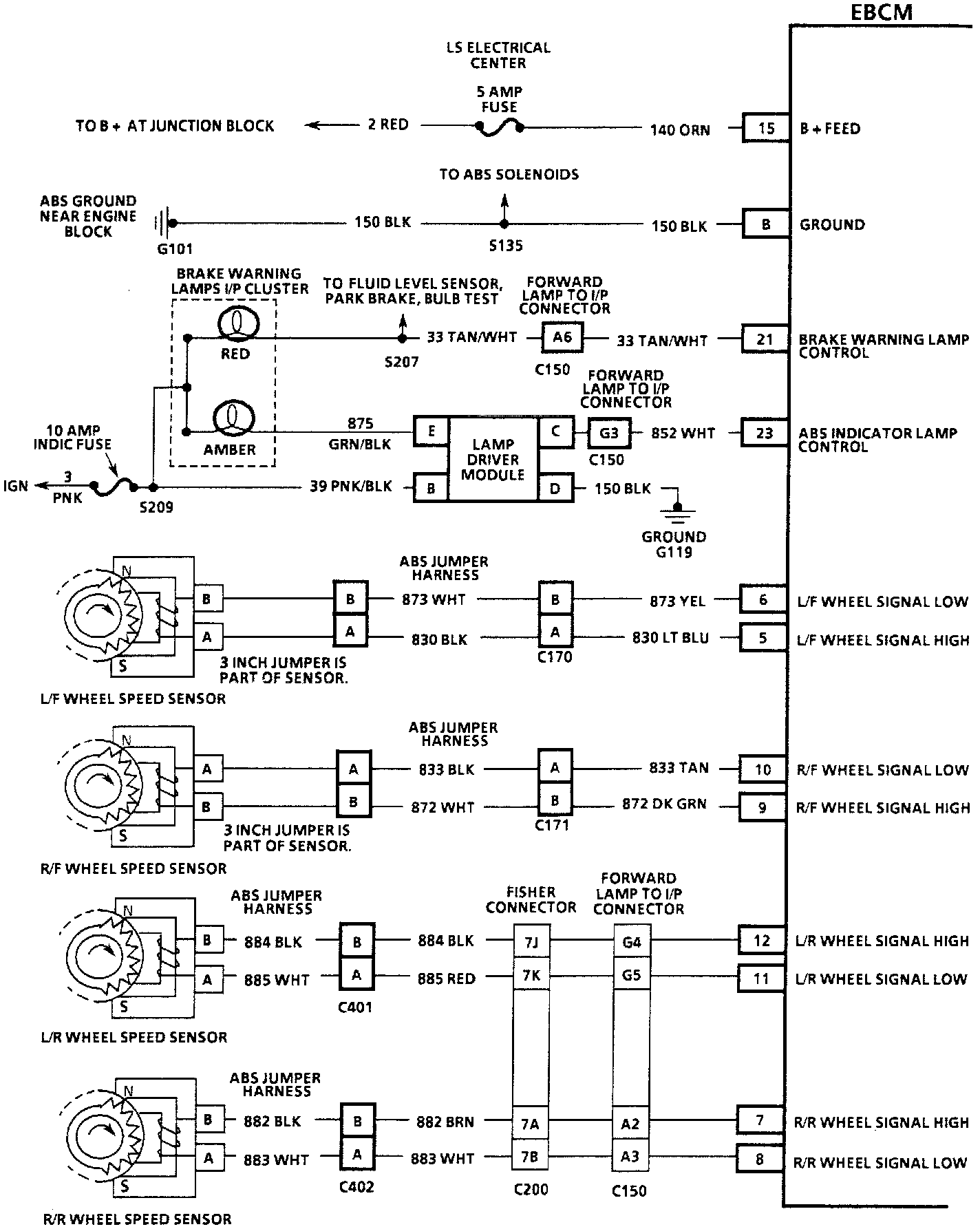

Fig. 3b - Anti-lock Brake System Wiring Diagram:
