Chart G DERM Cannot Communicate Through the Serial Data Circuit

Need a step-by-step guide?

Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 1992 Buick.

AI Repair Guides

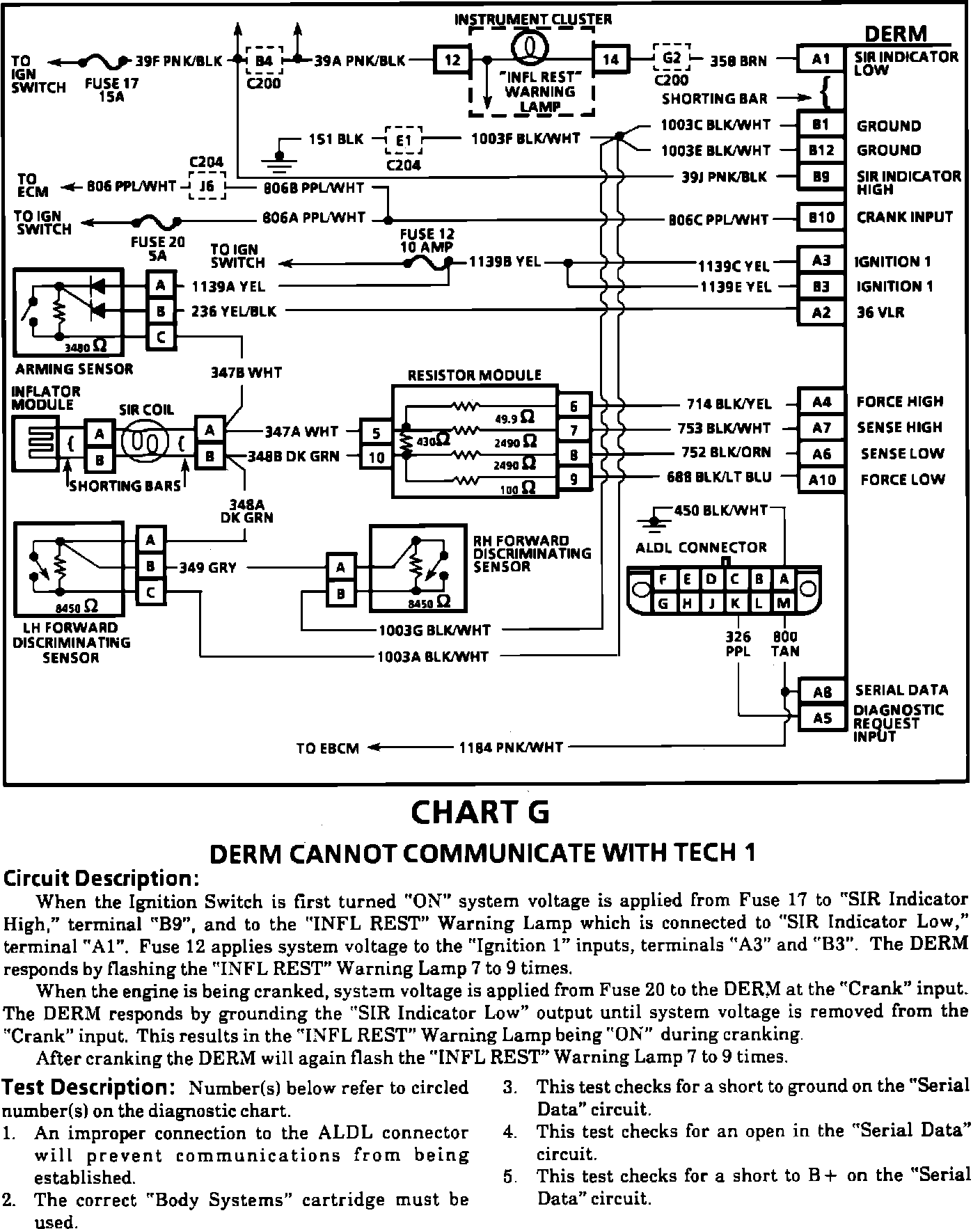

Fig. 159 Chart G, DERM Cannot Communicate With Tech 1 (Part 1 of 2):

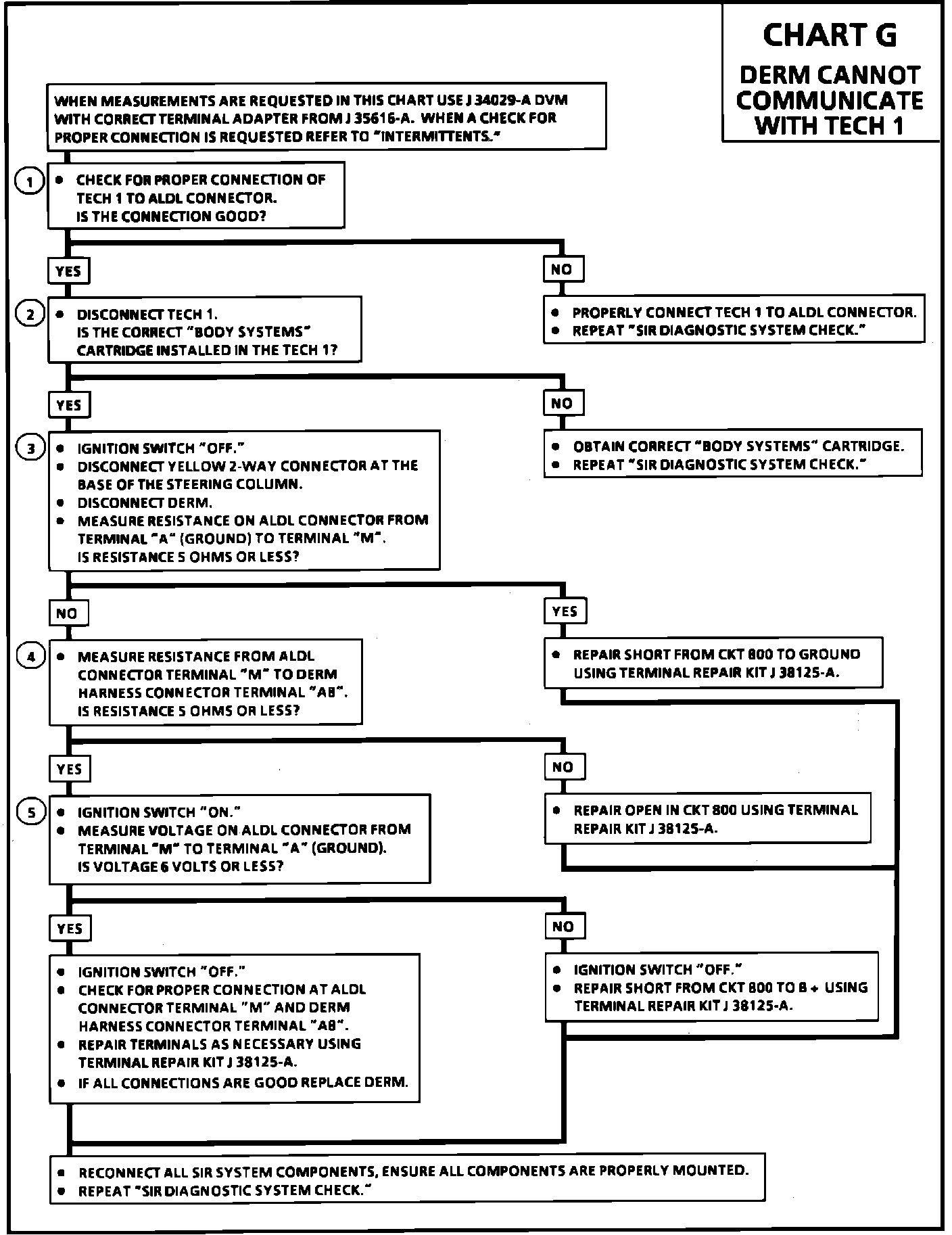

Fig. 159 Chart G, DERM Cannot Communicate With Tech 1 (Part 2 of 2):
