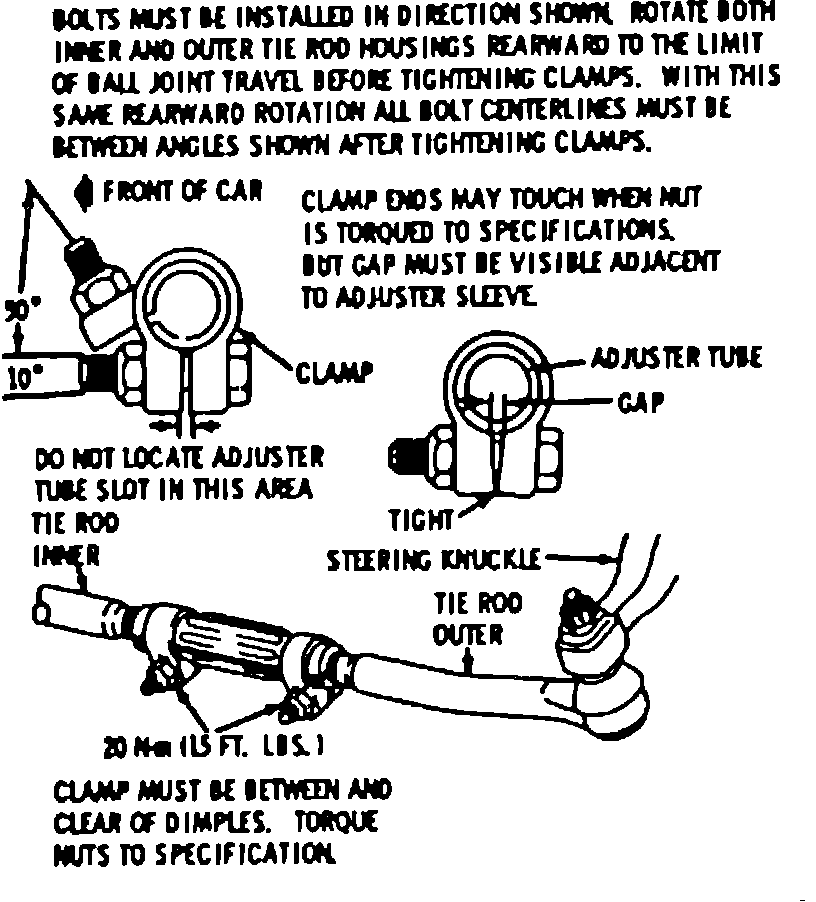

Fig. 2 Toe-in Adjustment:
Toe-in can be adjusted by loosening the clamp bolts at each end of each tie rod and turning each tie rod to increase or decrease its length as necessary until proper toe-in is secured and the steering gear is on the high point for straight-ahead driving, Fig. 2.
