61 35 950 - Removing and installing (replacing) control unit for comfort access system
Important!
Read and comply with notes on protection against electrostatic damage (ESD protection) 61 35 ... Notes on ESD Protection (Electro Static Discharge).
Necessary preliminary tasks:
- Remove right luggage compartment wheel arch trim

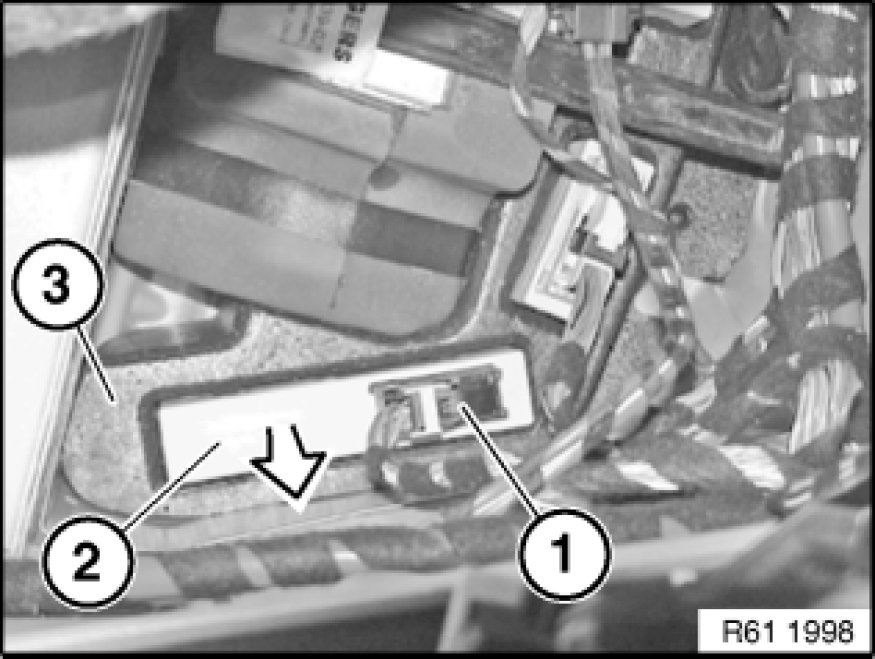

Disconnect plug connection (1).
Pull control unit for comfort access system (2) in direction of arrow out of device mount (3).
Replacement:
Carry out vehicle programming/coding Programming and Relearning.
