The aerial structures for the FM aerials 1 3 are integrated in the rear window. The rear window is made of toughened safety glass (ESG) and is approximately 3.1 mm thick.
The AM aerial is in the rear spoiler. To avoid disturbances in AM reception through the third brake light in the rear spoiler, there is a suppressor filter in the feed line to the third brake light.
The power supply to the AM and FM aerial amplifier comes from the radio via terminal Rad_on.

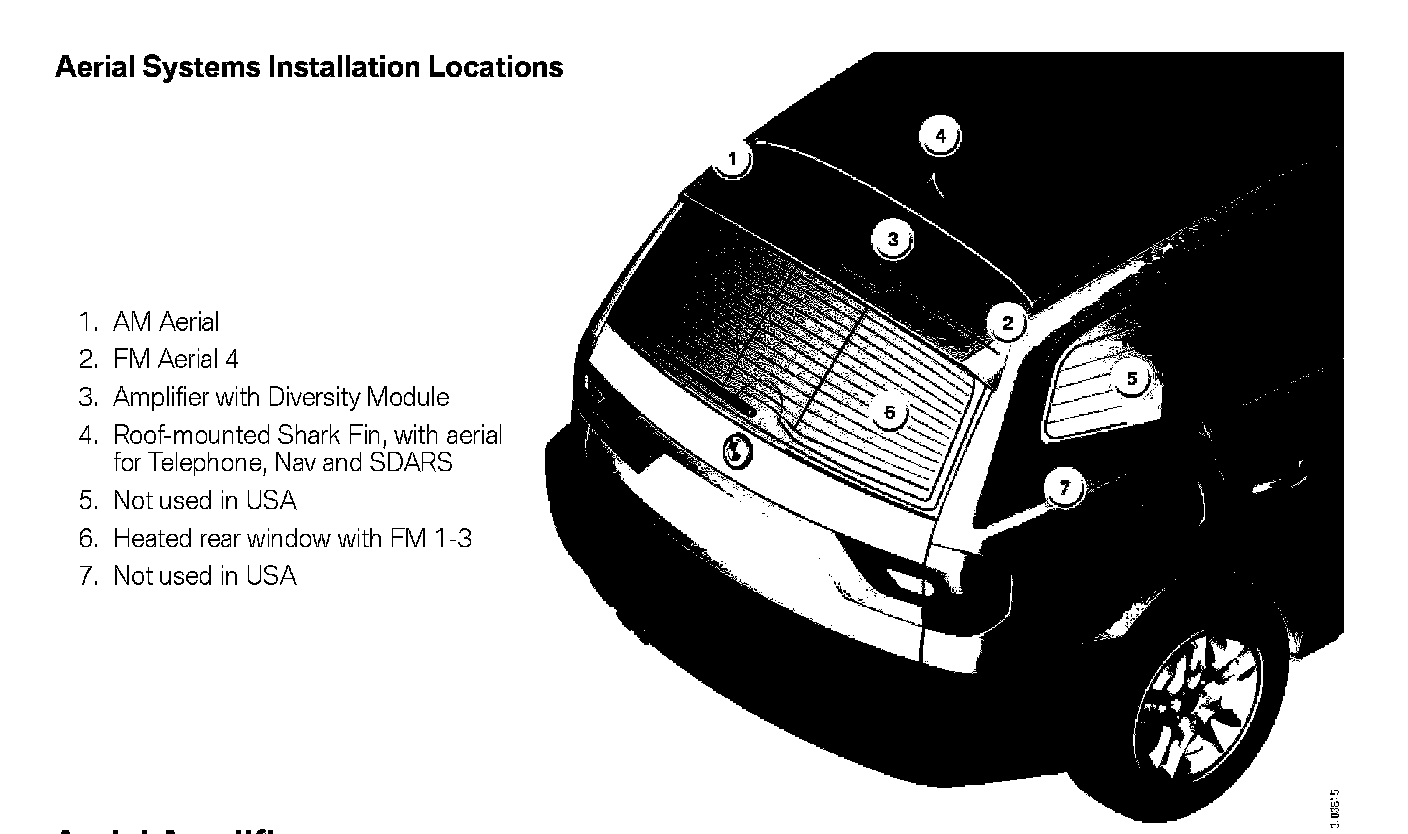

Aerial Systems Installation Locations
