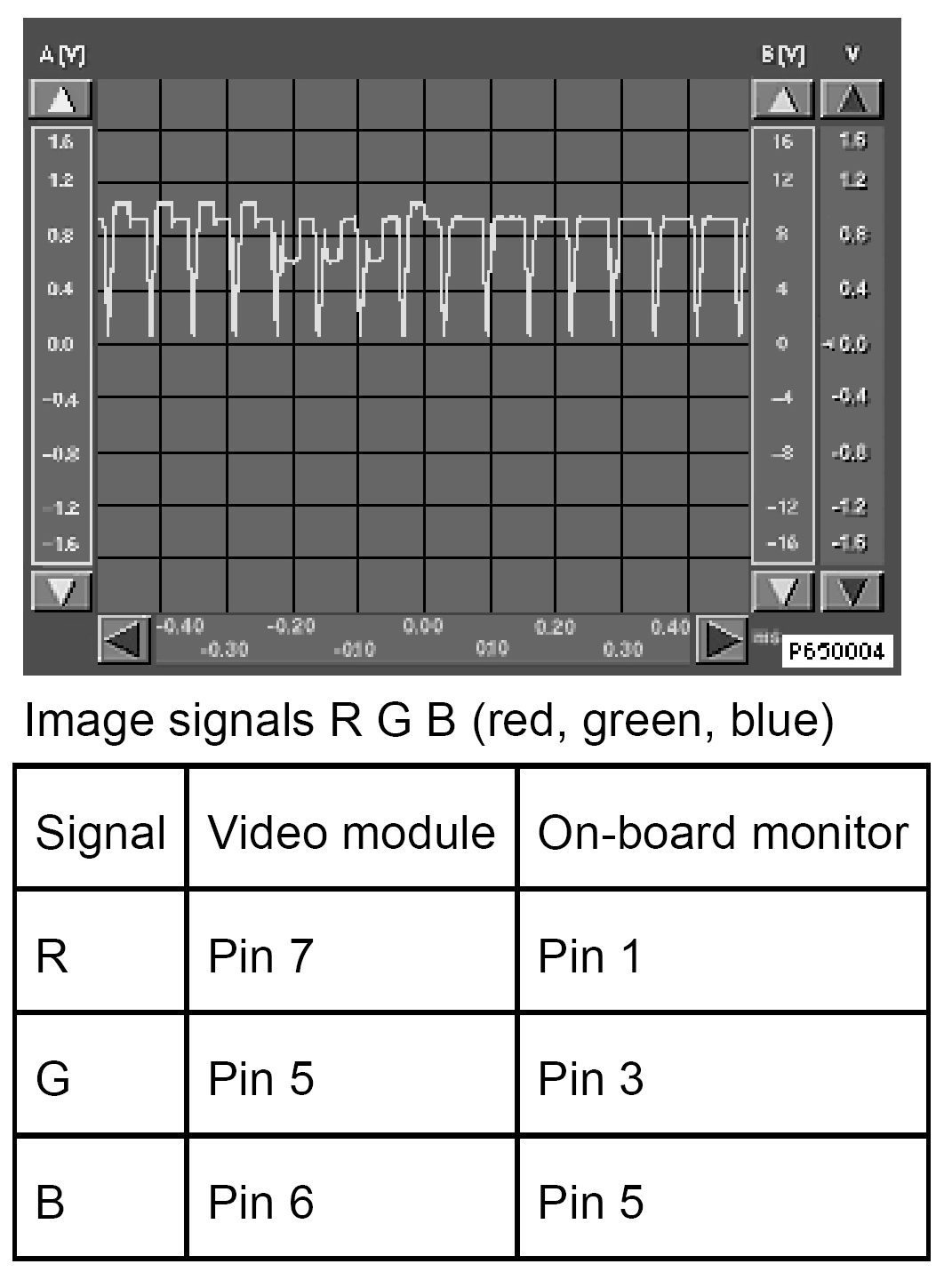

RGB Signals
All oscilloscope images are reference values and may deviate depending on the image content!

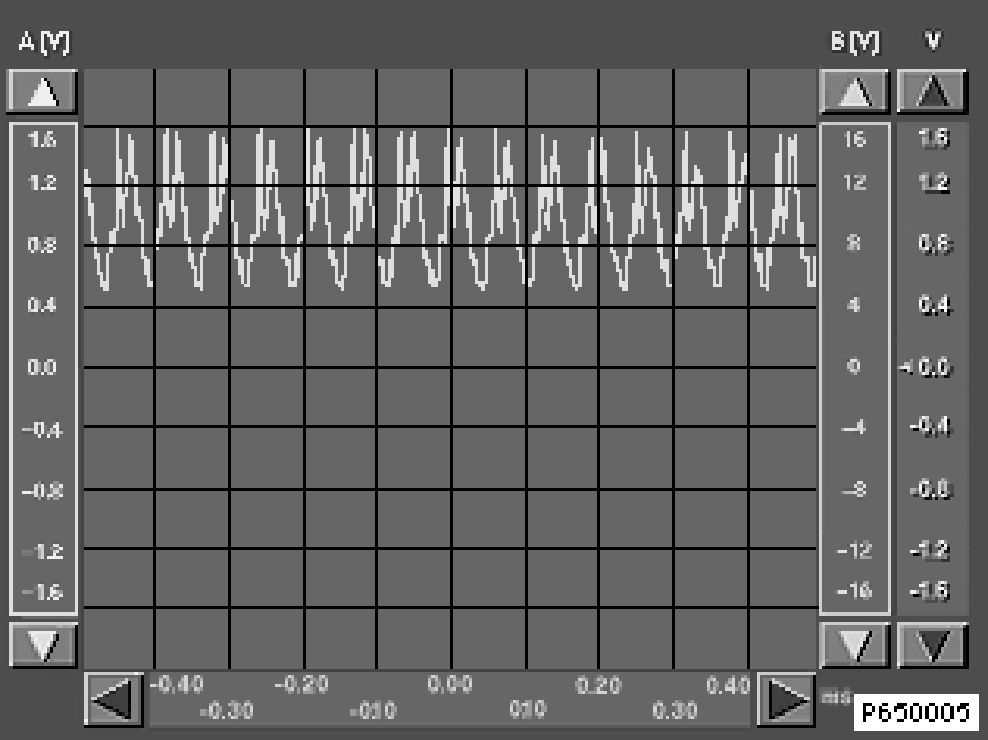

Image signals in TV mode

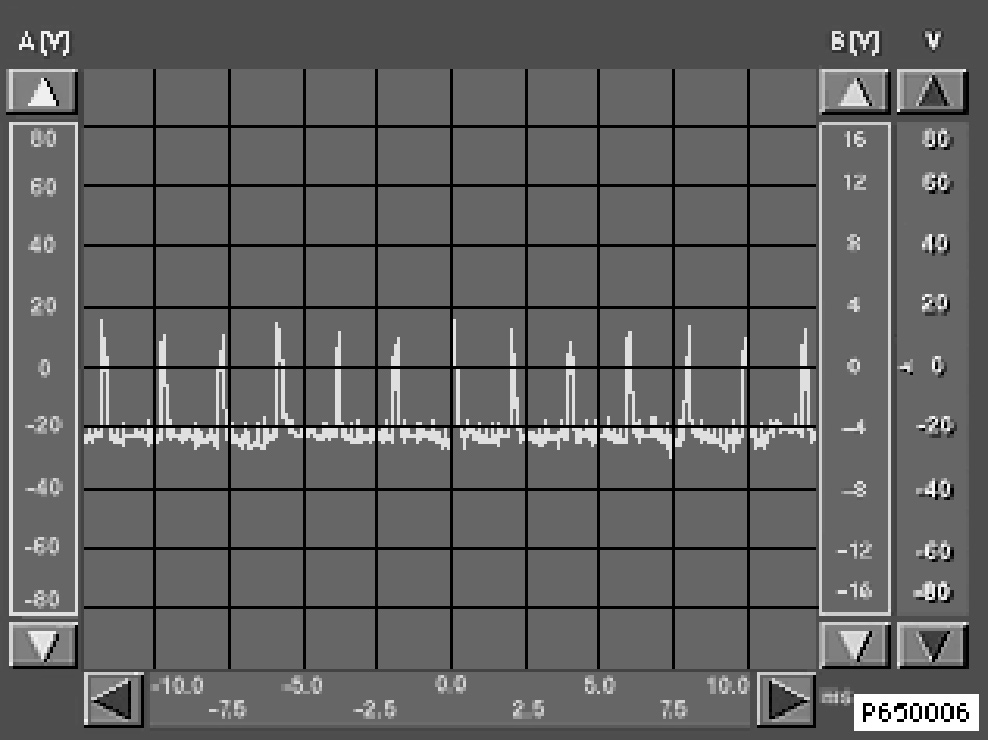

Ground LC display < Evaluate voltage range only ! >
Video module On-board monitor
Pin 12 Pin 7
Video Module, Picture Signals, Output
