Video Module, Picture Signals, Input

Need a step-by-step guide?

Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 2006 BMW.

AI Repair Guides

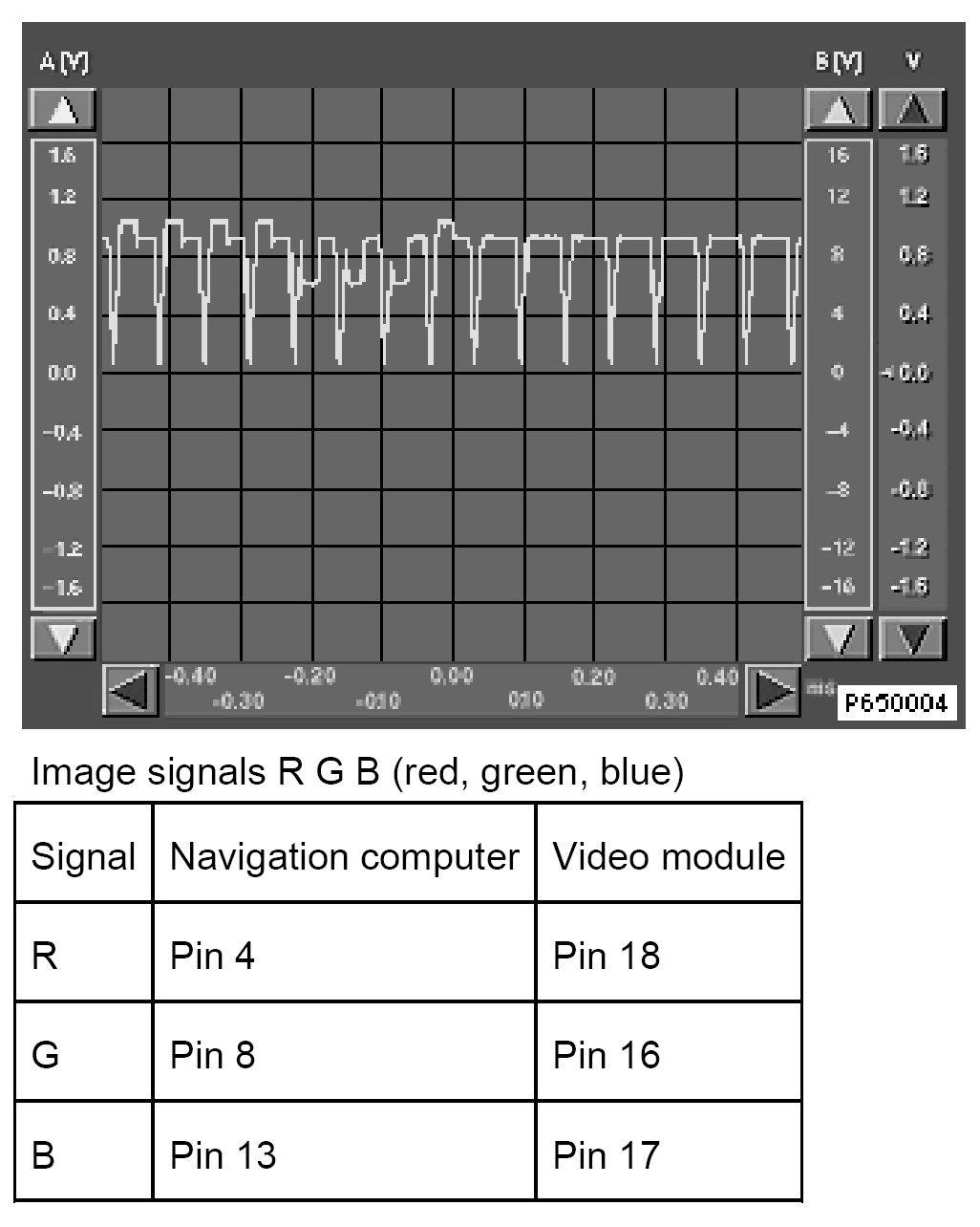

Image Signals R G B

All oscilloscope images are reference values and may deviate depending on the image content!

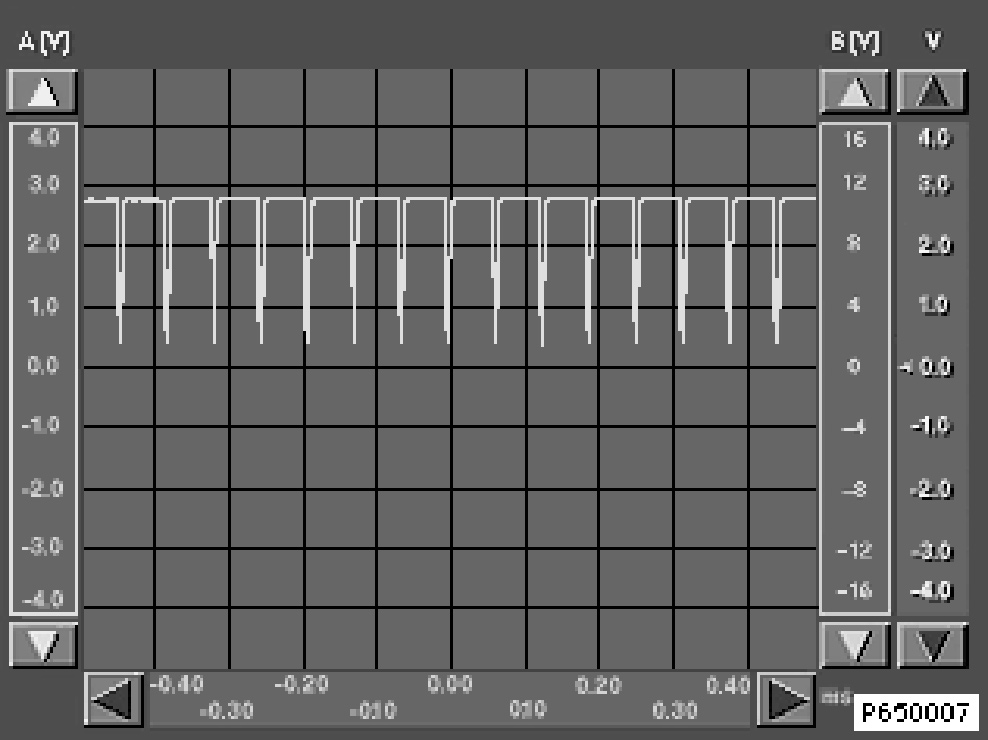

Navigation computer - video module synchronisation

Navigation computer Video module
Pin 17 Pin 8
