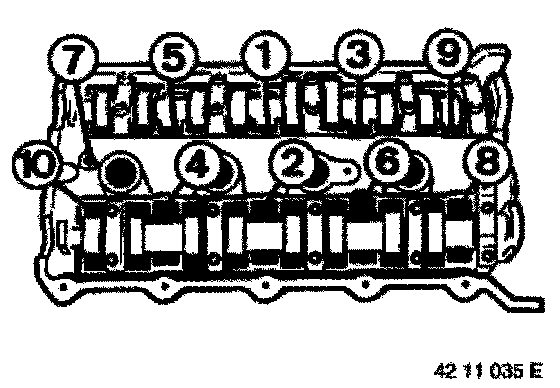

Cylinder Head Bolts [1]
Step #1 30 Nm (22 ft lb)
Step #2 Torque Angle 90 °
Step #3 Torque Angle 90 °
CAUTION: Remove oil and debris from bolt holes. If not, improper values or damage may result.
[1] Install new, lightly oiled bolts.
Torque
