Retaining Bracket (Fuse Plate)

Need a step-by-step guide?

Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 1994 BMW.

AI Repair Guides

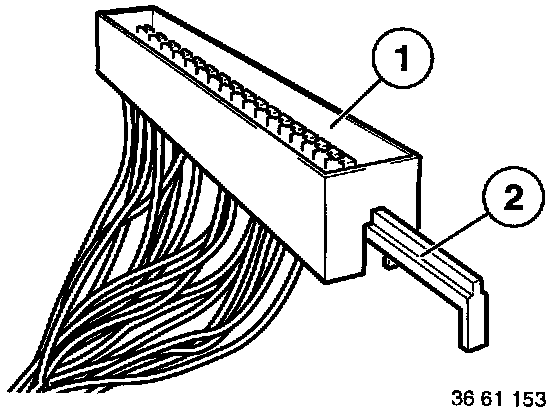

- Pull relevant fuse out of fuse block (1).
- (Mark positions when removing all fuses.)
- Pull locking slide (2) out of fuse block (1) as far as it will go.

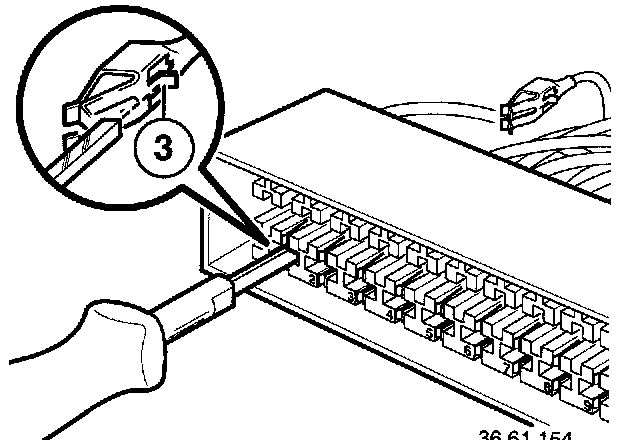

- With special tool 61 1 136 or 61 1 137 (ejector), press back arrester hook (3) of appropriate contact and pull out cable.
