30 Pin In-Line Connector

Need a step-by-step guide?

Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 1994 BMW.

AI Repair Guides

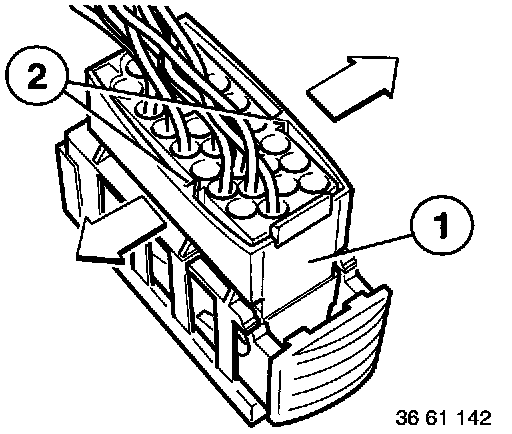

- Pull external connector (1) out slightly in area of retaining lugs (2) carefully.

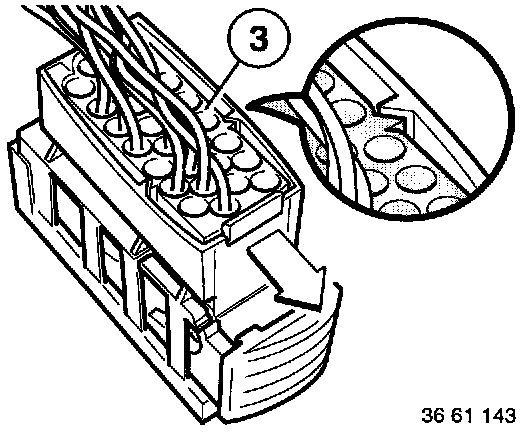

- Pull internal connector (3) as far as it will go in direction of arrow.

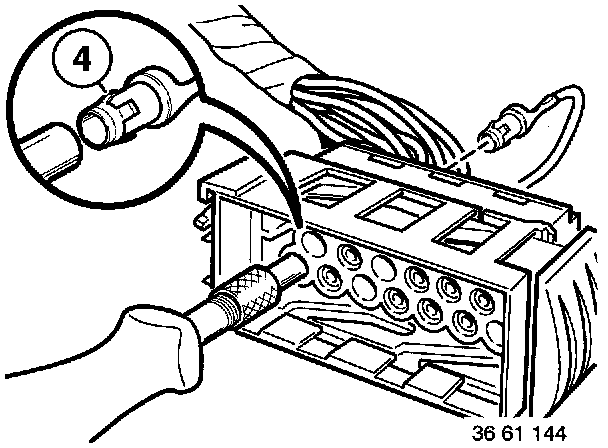

- With special tool 61 1 132 (ejector), press back arrester hook (4) of appropriate contact and pull out cable.
