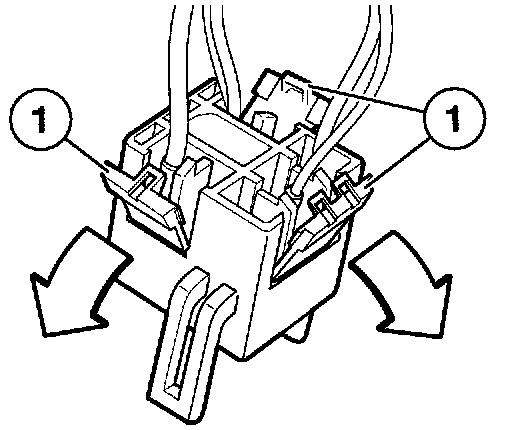

- Unlock locking flap (1) of corresponding cable.

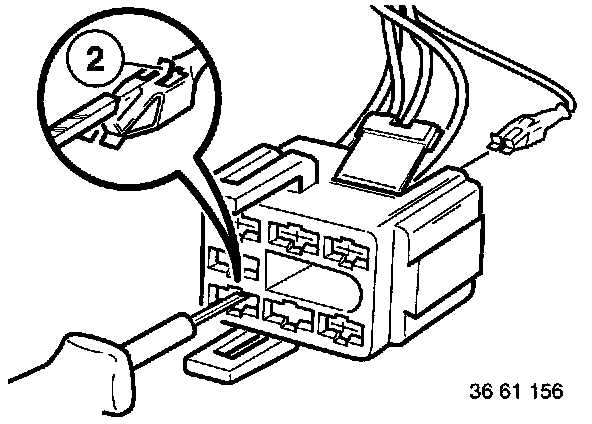

- With special tool 61 1 136 or 61 1 137 (ejector), press back arrester hook (2) of appropriate contact and pull out cable.
DME Master Relay Connector
Need a step-by-step guide?
Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 1994 BMW.
- Unlock locking flap (1) of corresponding cable.
- With special tool 61 1 136 or 61 1 137 (ejector), press back arrester hook (2) of appropriate contact and pull out cable.
