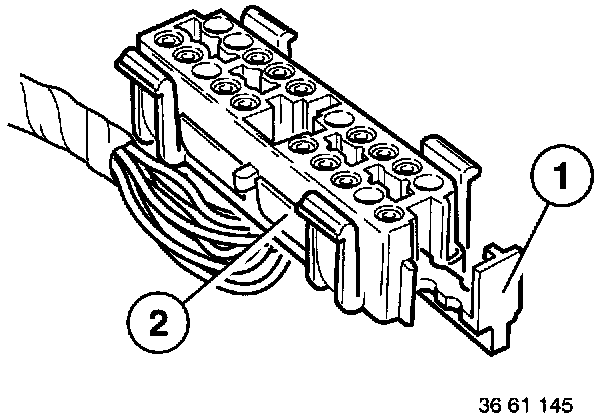

- Pull locking slide (1) out of connector (2).

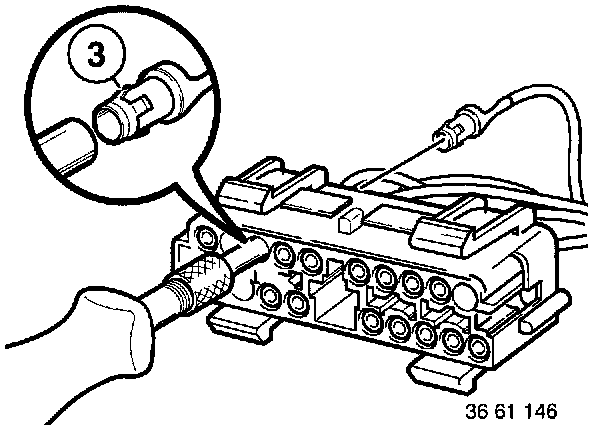

- With special tool 61 1 132 (ejector), press back arrester hook (3) of appropriate contact and pull out cable.
20 Pin Relay-Module Connector
Need a step-by-step guide?
Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 1994 BMW.
- Pull locking slide (1) out of connector (2).
- With special tool 61 1 132 (ejector), press back arrester hook (3) of appropriate contact and pull out cable.
