Module Replacement

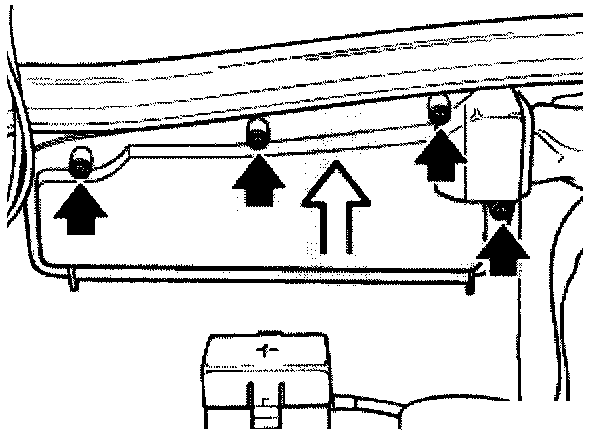

- Unscrew bolts.
- Fold cover with wiring harness to one side.

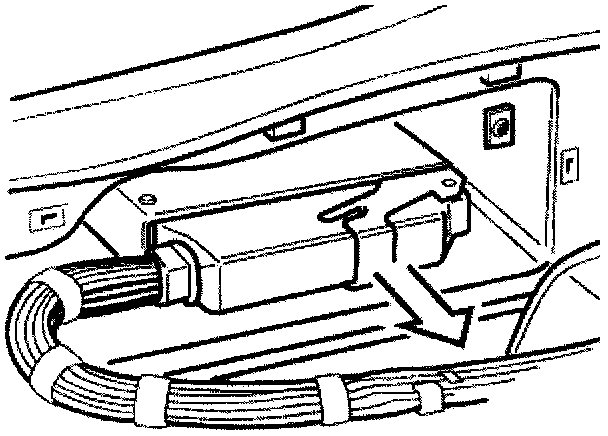

- Lift locking clamp of plug-in connection in upwards direction.
- Disconnect connector.
- Pull control unit out of clips.

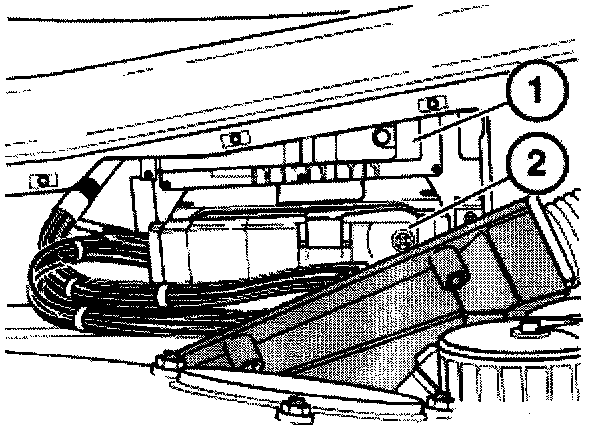

1 = Control unit for automatic transmission
2 = Control unit for Digital Motor Electronics
