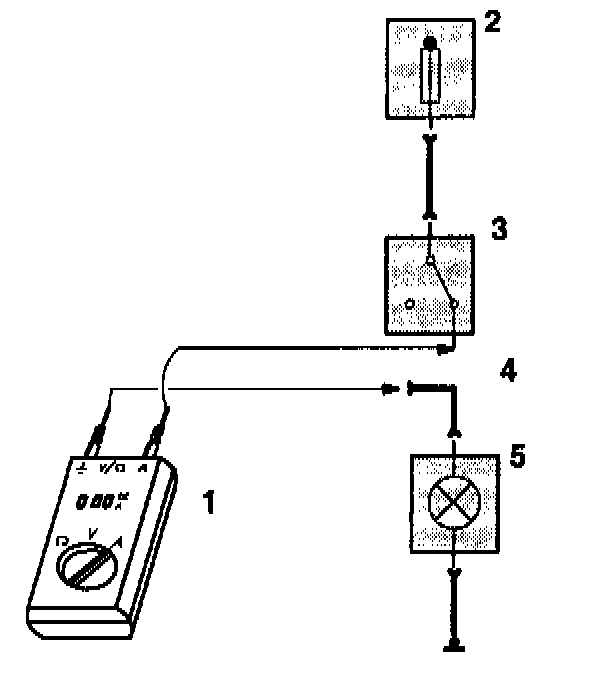

Example of a Current Test:
Current Test:
1 Ammeter
2 Power distribution box (fuse)
3 Switch for reversing light
4 Disconnected plug-and-socket connection
5 Rear light
Measuring instrument: Ammeter
Test Procedure:
To measure the current, connect the ammeter leads in series with the current. For this purpose, connect the test lead to the plug and socket of a disconnected plug-and-socket connection.
The ammeter will show the current flowing through the circuit.
