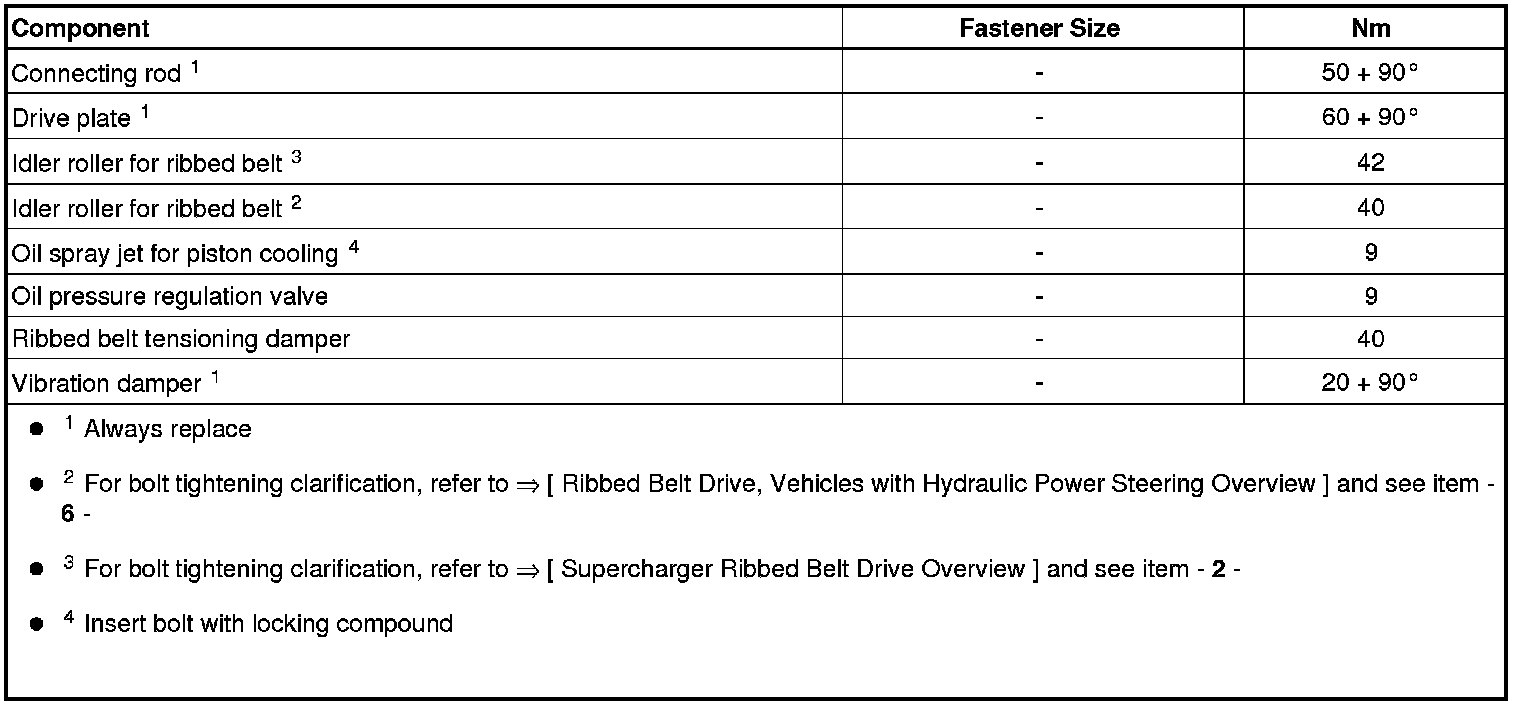

Fastener Tightening Specifications
"TDC" Marking Locking Bolt - Tightening Specification
• Replace the O-ring.

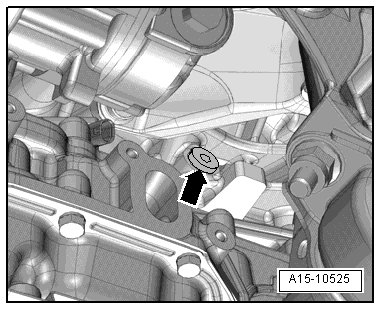

- Tighten the locking bolt - arrow - to 14 Nm.
Guide Frame
• Replace bolts that are tightened to the specification.
- Insert the long bolts in the inner row of the guide frame.

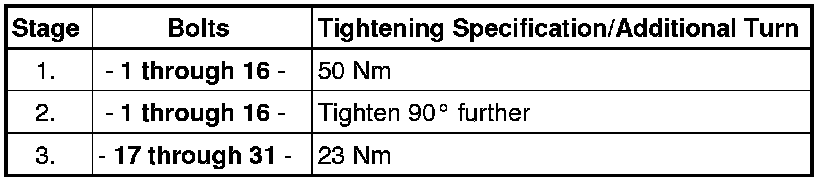

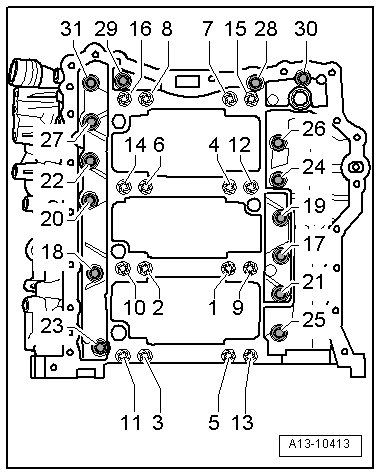

- Tighten the bolts in 3 steps in the sequence shown:
Ribbed Belt Pulley Side Sealing Flange - Tightening Specifications and Sequence

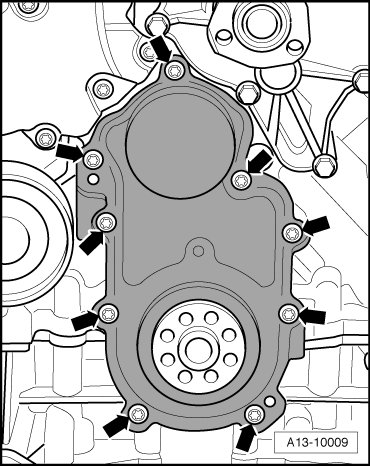

- Tighten the bolts - arrows - in a diagonal sequence in stages to 9 Nm.
