Vehicle Positioning System Interface Control Module J843
- Open the right luggage compartment side trim panel.
- Disconnect the control module connectors.

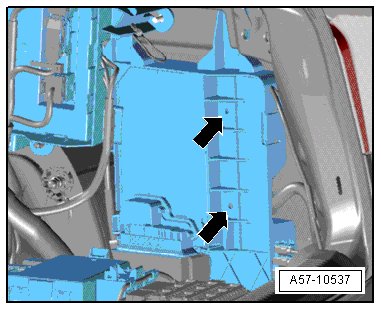

- Remove the bolts - arrows - and remove the control module behind the mount.
Vehicle Positioning System Interface Control Module J843
