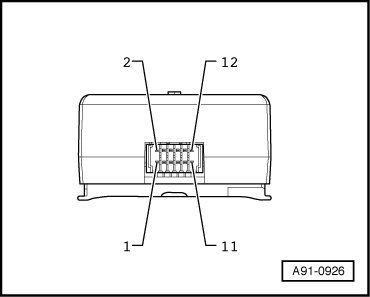

Harness Connector of Speech Input Control Module (J507)

• Unlisted connector terminals are not used.

12-Pin Connector





1. Not assigned

2. Not assigned

3. Status

4. Diagnosis

5. Terminal 30

6. Reset signal

7. Power good

8. Power on

9. Terminal 31

10. MOST out

11. Enabled

12. MOST in
