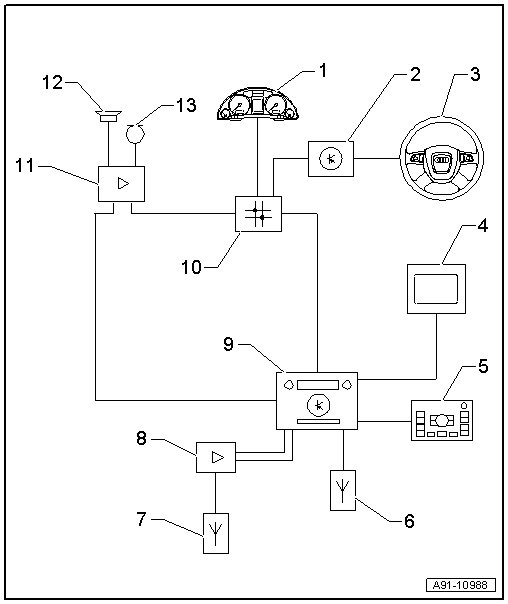

MMI Navigation, Basic Plus, System Overview
1 Instrument Cluster Control Module (J285) in the instrument panel
2 Steering Column Electronics Control Module (J527) on steering column at steering column switch
3 Multifunction Steering Wheel
4 Front Information Display Control Head (J685) in center of the instrument panel
5 Multimedia Control Head (E380) in the center console
6 Radio, Telephone, Navigation System Antenna (R52) roof antenna
7 Window Antenna
8 Antenna Amplifier 3 (R112) Behind the left luggage compartment side trim panel
9 Navigation System With CD Drive Control Module (J401) in the left side of the glove compartment
• Contains front information display control head control module (J523) / radio (R) / CD player (R89)
10 Data Bus On Board Diagnostic Interface (J533) Behind the glove compartment on the left side
11 Digital Sound System Control Module (J525) behind the luggage compartment left side trim
12 Sound Systems
13 Microphone Unit In Front Roof Module (R164) inside the Front Interior Lamp (W1)
